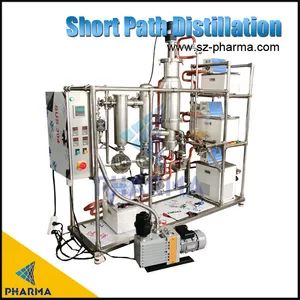

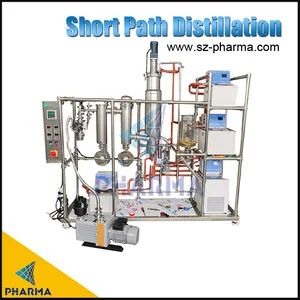

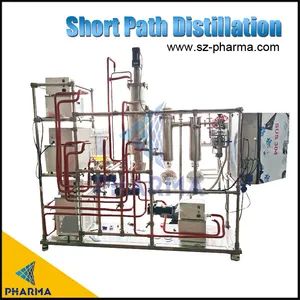

Wiped Film Essential Oil Distillation Machine
Piece
Negotiable
Product information
High-quality Wiped Film Essential Oil Distillation Machine supplied by Suzhou Pharma Machinery Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
System Pressure:
-0.085MPa
Compressed Air (MPa):
0.5-0.65
Evaporation Area M2:
1
Warranty:
1 year
Model NO.:
10
Volume:
100
Production Capacity:
100
Specification:
2000*800*2200mm
Specifications
System Pressure:
-0.085MPa
Compressed Air (MPa):
0.5-0.65
Evaporation Area M2:
1
Warranty:
1 year
Model NO.:
10
Volume:
100
Production Capacity:
100
Specification:
2000*800*2200mm
Equipment Height(Mm):
3000
HS Code:
3101001100
Evaporation Capacity (Kg/H):
50
Feeding Rate L/H:
50-120
Max Speed(Rpm):
50-350
Certification:
CE, GMP, ISO
Receiving Method:
Continuous Discharge Pump
Capacity:
Customizable
Voltage:
Customizable
Pressure Control:
Customizable Pressure
Temperature Control:
Customizable Temperature
Customized:
Customized
Machine Type:
Ethanol Extraction Machine
Trade Term:
FOB, CIF, CFR, EXW
Material:
Glass, Stainless Steel
Feeding Method:
High-Precision Gear Pump
Origin:
Jiangsu
Payment Term:
LC, T/T, D/P, Western Union
Vacuum Level(Mbar):
Low to 0.001 Mbar
Teamperature:
Max -40c ~ -60c
Condition:
New
Trademark:
PHARMA
Port Of Loading:
Shanghai Port
Transport Package:
Standard Wooden Exported Case
Extraction Method:
Steam Distillation
Model:
pH-10
Operation Temperature:
up to 350c
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2016-11-30
Annual Revenue Amount:
Not specified
Numbers Of Employees:
9
Preferred Payment Term:
LC, T/T, D/P, Western Union
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Certificates:
CE, Others
Product descriptions from the supplier
| Model | PH-01 | PH-02 | PH-05 | PH-10 | PH-15 | PH-20 | PH-30 | PH-50 | ||||
| Evaporation Area m2 | 0.1 | 0.25 | 0.5 | 1 | 1.5 | 2 | 3 | 5 | ||||
| Feeding Rate L/h | 1-15 | 5-25 | 10-60 | 50-120 | 60-180 | 100-200 | 100-300 | 200-500 | ||||
| Feeding Method | High-precision gear pump | |||||||||||
| Receiving Method | Continuous discharge pump | |||||||||||
| Equipment Height(mm) | 2000 | 2200 | 2500 | 3000 | 3100 | 3200 | 3300 | 3400 | ||||
| Max Speed(rpm) | 50-350 | |||||||||||
| Operation Temperature | Up to 350C | |||||||||||
| Vacuum Level(mbar) | Low to 0.001 mbar | |||||||||||
| Collection Mode | Gear pump for automatic and continuous feeding | |||||||||||
1. Evaporation Temperature:40ºC~70ºC.
2. Steam Pressure:0~0.3Mpa Cooling Water circulation temperature (In20ºC Out 25ºC)
3. Processing Ability:Cloud remove 80-95% alcohol from liquid.
4. Machine Material:Contact part all SUS 304.
5. Machine Voltage:As customer required.
6. Operator quantity required:1
7. Heating Method:Steam heating(Recommend)
8. Evaporation Mode:Liquid be film to increase the evaporation area by falling drop.
It is suitable for pharmaceutical, biological, food, chemical industry and other industries. It is commonly used in the evaporation of traditional Chinese medicine extract and fine chemical solution, especially suitable for the evaporation and recovery of organic solvents. It is mainly composed of heater, evaporator, defoamer, double condenser, cooler and receiving tank.
The main features:
The equipment system operates under negative pressure, with continuous feeding and discharging, heating and evaporation time is short, and it is suitable for evaporation and concentration of heat sensitive
Materials.
The material is evaporated under vacuum in a fully sealed system, and the concentrated liquid is pollution-free.
The top cover of the heater is equipped with quick-opening device for easy cleaning.
The equipment has compact structure, small floor area and simple operation.
