Without Any Electrical Appliances 850 Cast Iron CNC Graphite Milling Machine Tool Body / CNC Carving Machine Frame / Machine Tool Cast Iron Accessories Body Vmc
Set
Negotiable
Product information
High-quality Without Any Electrical Appliances 850 Cast Iron CNC Graphite Milling Machine Tool Body / CNC Carving Machine Frame / Machine Tool Cast Iron Accessories Body Vmc supplied by Dongguan Lizhun Machinery Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Processing Precision:
0.01~0.02(mm)
Production Capacity:
10000pieces/Year
Worktable Size:
1000X510mm
Spindle Speed:
12000rpm
Specification:
2730x2912x2970mm
X/Y/Z Rapid Feed Speed:
36/36/36mm
T Slot:
5-18X100mm
HS Code:
8457101000
Specifications
Processing Precision:
0.01~0.02(mm)
Production Capacity:
10000pieces/Year
Worktable Size:
1000X510mm
Spindle Speed:
12000rpm
Specification:
2730x2912x2970mm
X/Y/Z Rapid Feed Speed:
36/36/36mm
T Slot:
5-18X100mm
HS Code:
8457101000
X/Y/Z Axis Travel:
850/500/550mm
Spindle Hole Taper:
Bt40
Certification:
CE, SGS
Numerical Control:
CNC/MNC
Origin:
China
Trade Term:
FOB, CIF, CFR, EXW
Application:
Glass, Wood, Steel, Metal, Iron, Aluminum, etc.
Performance Classification:
High-End CNC Machine Tools
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Trademark:
LiSN
Movement Method:
Linear Control
Process Usage:
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Condition:
New
Control Method:
Semi-Closed Loop Control
Port Of Loading:
Shenzhen Port
Model NO.:
VMC850
Transport Package:
Wooden Box
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2016-11-24
Annual Revenue Amount:
Not specified
Numbers Of Employees:
20
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shenzhen Port
Certificates:
CE
Product descriptions from the supplier

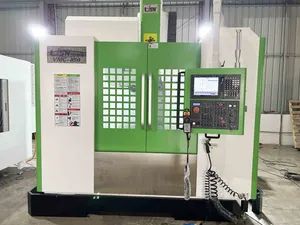

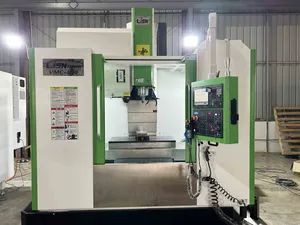

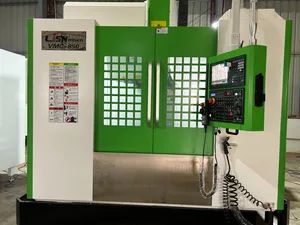

This vertical machining center VMC 850 has the characteristics of high speed, high precision and high rigidity. The worktable size of this machine it 1000*500mm, and this machine also adopts high rigid bed, high precision roller type guideway, and integrated bearing block, which can greatly improve the body rigidity, ensure the machine good running accuracy, and also maintian excellent precision stability. The Z axis uses brake servo motor with no counterbalance block design to improve the driving performance of Z axis. This machine occupies a small area and also has high structral strength, thare are also a wealth of optional configuration can be installed. it suitable for processing plate, mold and small shell complex part, can complete milling, boring, drilling, tapping and cutting threads and other process.
Item |
Specifications | MODELS→ | VMC640 | VMC850 |
Travel Range |
X/Y/Z Axis Travel | mm | 650/430/450 | 850/500/550 |
| Distance From Spindle Nose To worktable | mm | 150-600 | 320-820 | |
Worktable |
Worktable (WidthxLength) | mm | 420x700 | 1000x500 |
| Max Load Bearing Of Worktable | kg | 200 | 500 | |
| T-Slot(number of SlotxSlot WidthxPitch) | mm | 3x18x125 | 5x18x90 | |
Spindle |
Spindle Hole Taper | type | BT40 | BT40 |
| Spindle Speed Range | r/min | 12000 | 12000 | |
Feedrate |
X/Y/Z Rapid Feed Speed | m/min | 48/48/48 | 48/48/48 |
| Max Cutting Feed Speed | mm/min | 1-12000 | 1-12000 | |
| Accuracy | X/Y/Z Position Accuracy | mm | 0.005 | 0.005 |
Machine Dimension |
Machine Dimension | mm | 2300x2250x2450 | 2700x2700x2560 |
| Machine Weight | kg | 3400 | 4800 |
Standard Configuration for VMC Series
1. Full Cover shield
2. Self-lubrication system
3. Working lights
4. Warning lights
5. Working condition warning lights
6. Self-powered electrical shutoff system
7. Clean air gun/ Water Tank / Transformer
8. Spindle air curtain and dust control system
9. 10000 RPM spindle
10.Worktable cleaning water gun
Optional Configuration for VMC Series
1. 24 disc manipulator tool magazine
2. Crawler chips remover

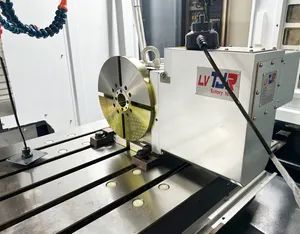

3. NC rotary table (4 Axis)
4. CTS
5. Tool detection system
6,. AJO
7. 12000 & 15000 RPM Direct connection spindle
8. Oil mist purifier
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM
2. Are you a manufactuer or trading company?
A:We are the manufacturer
3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.
4 . What is your terms of delivery?
A: FOB shenzhen.
5. What's your payment term?
A: T/T OR L/C at sight.
