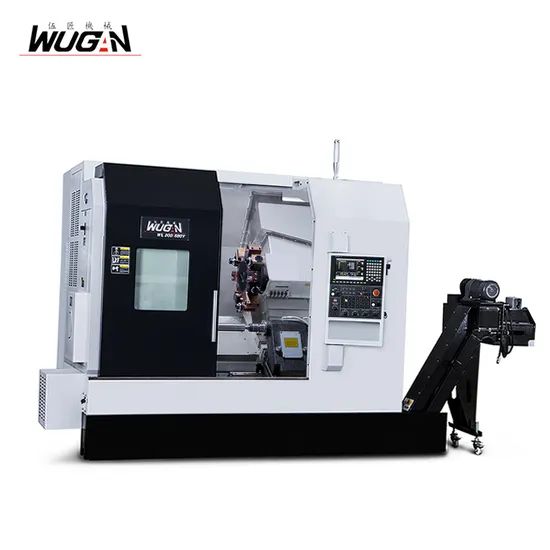

Wl200 580y 40 Advanced CNC Pipe Threading Lathe for Heavy Mechanical Work
1 Piece
$40,0001 Piece
$50,000Product information
High-quality Wl200 580y 40 Advanced CNC Pipe Threading Lathe for Heavy Mechanical Work supplied by Suzhou Wugan Intelligent Equipment Co., Ltd.. Bulk wholesale pricing ranges from $40,000 to $50,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Spindle Motor Power (Continuous/30 Min):
11/15kw
Turret Capacity:
12
Production Capacity::
200pieces/Year
Maximum Stroke X/Z:
250/510
Specification:
2950x1800x2480mm
Maximum Cutting Diameter:
350mm
Maximum Spindle Speed:
4200rpm
Machine Weight:
5000kg
Specifications
Spindle Motor Power (Continuous/30 Min):
11/15kw
Turret Capacity:
12
Production Capacity::
200pieces/Year
Maximum Stroke X/Z:
250/510
Specification:
2950x1800x2480mm
Maximum Cutting Diameter:
350mm
Maximum Spindle Speed:
4200rpm
Machine Weight:
5000kg
Maximum Cutting Length:
500mm
Maximum Swivelling Diameter Of The Bed S:
630mm
Maximum Swing Diameter:
650mm
HS Code:
8458110090
Spindle Nose:
A2-6
Power Turret Tool Specifications:
Bmt55-Er32
Certification:
CE, ISO 9001
Numerical Control:
CNC/MNC
Origin:
China
Control Method:
Closed-Loop Control
Trade Term:
FOB, EXW, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA
Performance Classification:
High-End CNC Machine Tools
Payment Terms::
L/C, T/T, D/P, Western Union, Paypal, Money Gram
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Movement Method:
Linear Control
Application:
Metal
Process Usage:
Metal-Cutting CNC Machine Tools, Metal-Forming CNC Machine Tools
Condition:
New
After Sales Service:
One Year
Warranty:
One Year
Port::
Shanghai, China
CNC System:
Syntec or Fanuc
Model NO.:
WL200/580Y-40

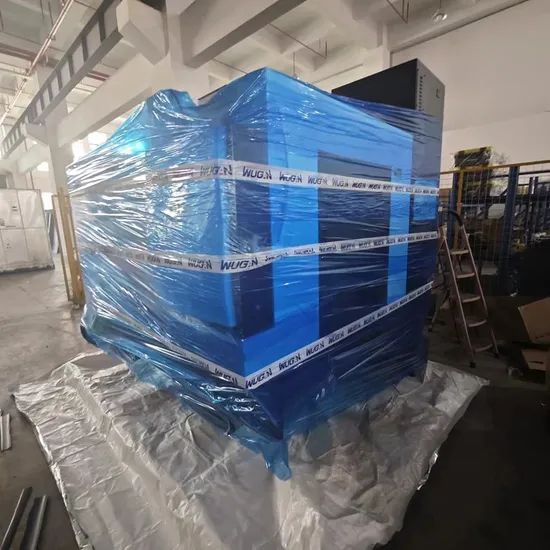

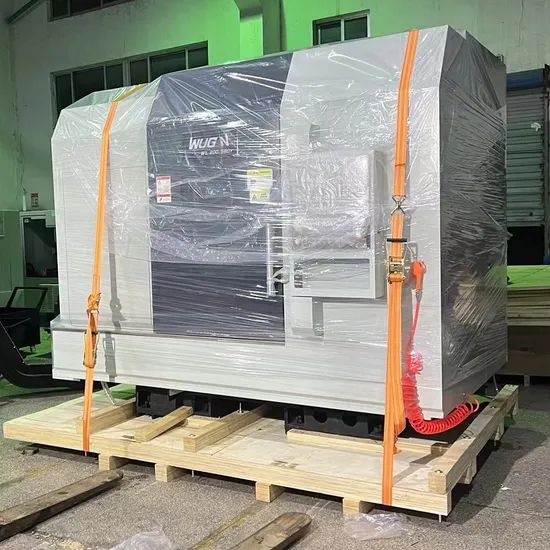

Transport Package:
Wooden Case/ Iron Box
Port Of Loading:
shanghai
Trademark:
wugan
Positioning Accuracy (X/Z):
±0.004
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2023-01-11
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Preferred Trade Term:
FOB, EXW, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA
Port Of Loading:
shanghai
Product descriptions from the supplier
Product Description
·30° inclined monolithic bed ensures high rigidity
·Class C3 ball screws, ensure maximum positioning accuracy and durability.
· V-belt drive spindle system to reduce min. rpm and increase torque at full horsepower output.
·Optimal lineup of structures to meet customer needs, including extended beds, turret punch presses and servo axes.
·Compact design with built-in motor to minimize the length of the machine (standard bed style).
·Ergonomic design for easy operation and maintenance.
Product Parameters
| basic specification | Unit | WL 200/580Y | |
| Maximum Swing Diameter | mm | φ650 | |
| Maximum swivelling diameter of the bed saddle | mm | φ630 | |
| Maximum cutting diameter | mm | φ350 | |
| Maximum cutting lengt h | mm | 500 | |
| spindle | |||
| Spindle motor power (continuous/30 min) | kw | 11/15 | |
| Maximum spindle speed | rpm | 4200 | |
| Spindle nose | A2-6 | ||
| Spindle through-hole diameter | mm | φ78 | |
| Bar capacity | mm | φ65 | |

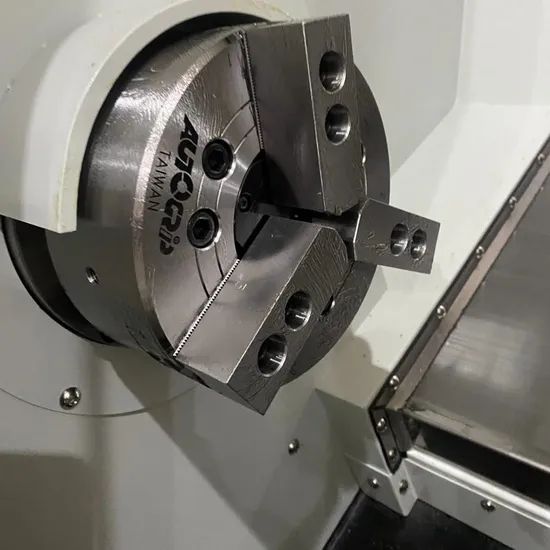

| Collet size | inch | 8" | |
| feed axis | |||
| Maximum stroke X/Z | mm | 250/510 | |
| X/Z axis motor power | kw | 3. 1 [3/1.8 FANUC] | |
| Fast shift speed X/Z | m/mi n | 30/30 | |
| X/Z slide type | linear | ||
| C-axis (optional ) | |||
| Minimum spindle positioning accuracy | ±0.001° | ||
| Dynamic accuracy | ±0.001° | ||
| turret | |||
| Turret Capacity | 12 | ||
| Quadratic cutter | mm | 25 | |
| Round cutter | mm | φ40 | |
| Power Turret Motor Power | kw | 3.7/5.5 | |
| Power Turret Tool Specifications | BMT55-ER32 | ||
| Power tool speed | rpm | 4000 | |
| tailstock | |||
| Mandrel Diameter | mm | φ70 | |
| Mandrel Stroke | mm | 150 | |
| Tailstock body stroke | mm | 460 | |
| Taper hole tape r | MT#5 | ||
| Programmable Control Mandrel/Tailstock Body | yes/no | ||
| Tailstock body movement method | saddle-driven | ||
| Mechanical specification s | |||
| Positioning accuracy (X/Z) | mm | ±0.004 | |
| Repeat Positioning Accuracy(X/Z) | mm | ±0.003 | |

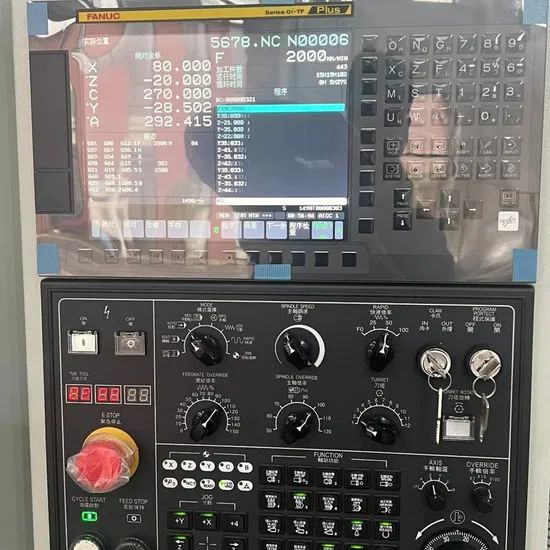

| CNC system | syntec or fanuc | ||
| chip conveyor | sidebar | ||
| Exterior(L×W×H)) | mm | 2950x1800x2480 | |
| Machine weight | kg | 5000 | |
Detailed Photos
The WL200/580Y series bed features a 30-degree inclined design with low center of gravity, constructed from Meehanna cast iron, offering a robust frame and optimized thermal distribution. This design effectively minimizes structural vibrations, delivering superior machine performance. The inherent stiffness of the lathe series supports consistent, high-accuracy machining over extended use and significantly improves tool longevity.
The WL 200/580 and WL 260/1050 models support an optional Y-axis feature, significantly expanding their ability to handle intricate components and enhancing the precision of various industrial components. It enables accurate slot cutting and eccentric drilling along the X-axis. This Y-axis capability is realized by integrating the feed axis with the X-axis, offering a low center of mass and superior structural stability.
The WL 200/580 line integrates C-axis motion with a motorized turret to deliver a mill-turn center capability. This single-machine solution enables turning, milling, drilling, and tapping operations without requiring workpiece relocation. By eliminating transfers between machines, it reduces setup errors and cuts both time and labor costs. The turret leverages cutting-edge servo positioning for rapid tool switching and enhanced structural strength. Equipped with a high-performance AC servo motor, the tool system handles complex tasks efficiently, delivering strong torque and ample power.
The WL 200/580 Series, featuring an optional Y-axis, significantly enhances the ability to process intricate components and boosts precision in manufacturing. Applications include precise slot cutting and X-axis off-center hole drilling. With a generous Y-axis movement (100 mm = +50 mm / -50 mm), it supports versatile and effective part production. The extended rail structure, designed with a low center of gravity, strengthens structural stability. At a 30-degree angle between the OY-axis and X-axis, the turret's center of gravity remains within the saddle's travel range, maintaining machining stability and minimizing warping caused by its own weight.
