X-ray Computed Tomography Function Inspection Complex Parts Dimensional Analysis Measurement
1 Set
$100,0001 Set
$1,000,000Product information
High-quality X-ray Computed Tomography Function Inspection Complex Parts Dimensional Analysis Measurement supplied by RAYSOV Instrument Co., Ltd.. Bulk wholesale pricing ranges from $100,000 to $1,000,000 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Production Capacity:
100sets/Year
X Ray Detector:
100μm/120μm/140μm/154μm Option
X Ray Energy:
130kv/150kv/160kv/225kv/300kv/190kv Optioanal
Specification:
160kV/225kV/320kV/450kV option
X Ray Workstation:
2 Window or 3 Window Control Station
X Ray Ai Detectionn:
2D Images Automatic Detection Optional
Portable:
3D Scanning
HS Code:
9022909090
Specifications
Production Capacity:
100sets/Year
X Ray Detector:
100μm/120μm/140μm/154μm Option
X Ray Energy:
130kv/150kv/160kv/225kv/300kv/190kv Optioanal
Specification:
160kV/225kV/320kV/450kV option
X Ray Workstation:
2 Window or 3 Window Control Station
X Ray Ai Detectionn:
2D Images Automatic Detection Optional
Portable:
3D Scanning
HS Code:
9022909090
Alarm Form:
Audible Alarm
Certification:
CE, ISO
Form:
Cabinet Type
Port Of Loading:
Dalian Port
Trade Term:
FOB, CIF, CFR, EXW
Type:
Industrial High-definition X-ray Detector
Protection Level:
International Standard
Payment Term:
LC, T/T, D/P, PayPal, Western Union
Origin:
Liaoning, China
Customized:
Non-Customized
NDT Type:
Nondestructive Testing Rt Digital Imaging
X Ray Monitoring:
Onsite Monitors and Alarm Systems
Test Efficiency:
PLC Control Fast Speed, Fast 3D Software, Optional
High Precision:
Phantom Test Optional
Trademark:
RAYSOV
X Ray Imaging Software:
Raysov Developed X-ray Image Filer Software
Transport Package:
Sea Freight
Application:
Security Check, Industrial
Object Size Testing:
Small or Medium Size
Spatial Resolution Detection Opti:
Spatial Resolution High Definition
X Ray Mechanism:
Tube and Detector Support, Transport Trolley
Steel Lead Steel Protection Room:
X-ray Protection Cabinet
X Ray Source:
X-ray Tube Option 160kv/225kv/320kv/450kv
Model NO.:
ZXFlasee D+Type
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2009-11-18
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Dalian Port
Certificates:
CE certificate, ISO, ISO 14001, ISO 9001, ISO45001
Product descriptions from the supplier
Empowering intelligent manufacturing
Non-destructive evaluation(NDE)
Load the industrial CT function

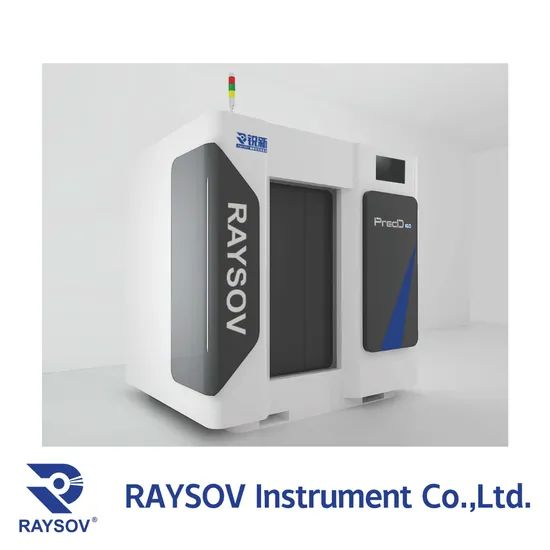

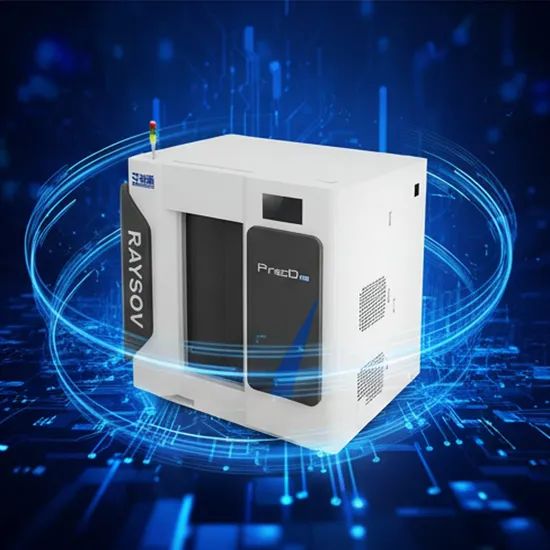

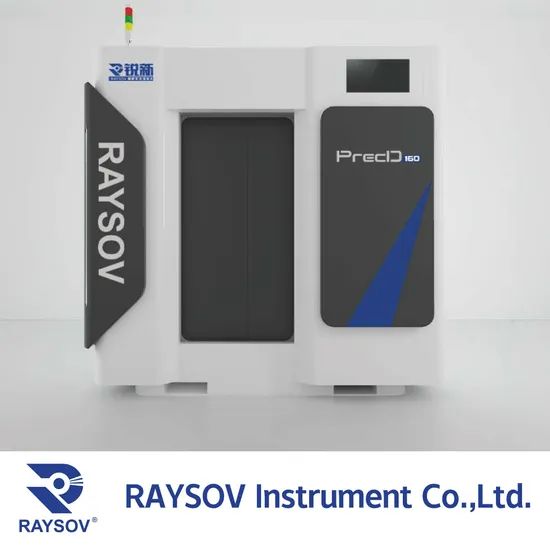

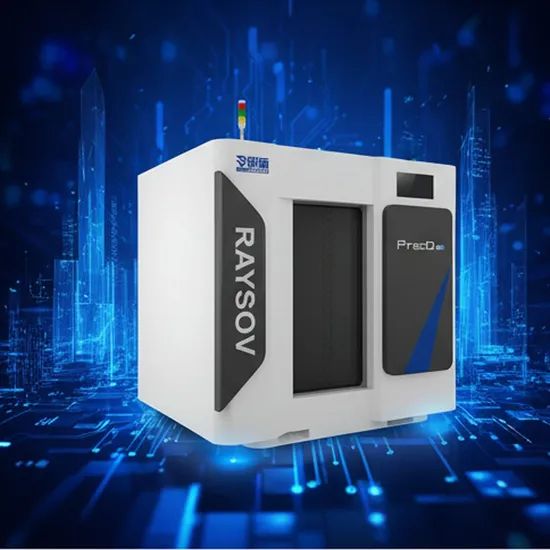

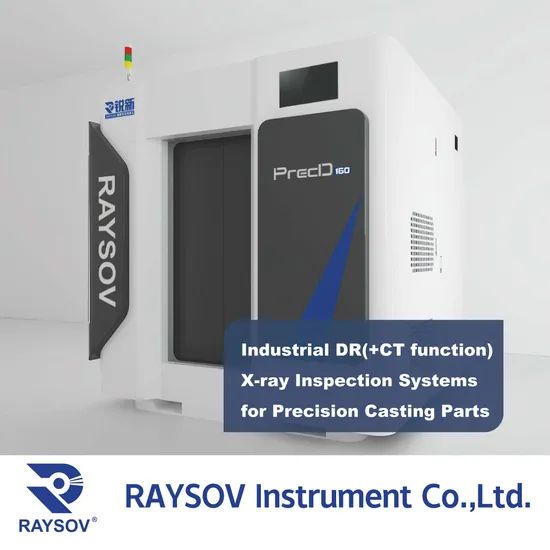

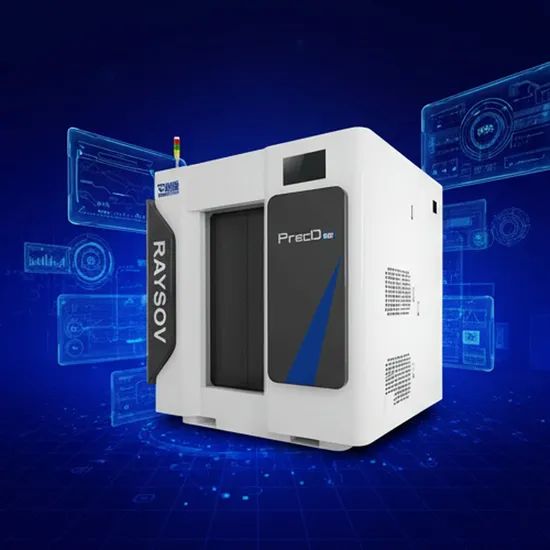

This X-ray digital imaging (DR) inspection system is a high-efficiency and high-precision digital X-ray imaging (DR) system specifically designed and developed for the X-ray digital imaging inspection of large-scale metal-alloy casting or Composite material parts.
A high-efficiency, high-precision digital X-ray imaging ( DR ) system. It mainly relies on the characteristics of X-rays penetrate objects and store images,non-destructive evaluation of the interior of objects. It is the most effective means for product research, failure analysis, high-reliability screening, quality evaluation, process improvement, etc.
X-ray computed tomography technology is widely used in the industrial field for the inspection of complex parts, especially for the measurement of internal geometric structures, which is beyond the reach of traditional coordinate measurement systems. In addition, it is also used as a coordinate measuring tool for assembly and complex components, capable of conducting dimensional analysis on internal features.
Test object size | 600*600*1000mm |
X-ray energy | 160/225/320/450kV |
Focus | IEC336 0.4mm EN12543 d=0.4mm/1.0mm |
Detector imaging area | 430*430mm |
Detector pixel size | 140um |
Penetration thickness (1 60kV) | Al 80mm/Fe18mm |
Penetration thickness (225kV) | Al 150mm/Fe 30mm |
Penetration thickness (320kV) | Al 200mm/Fe 45mm |
Penetration thickness(450kV) | Fe 60mm |
Maximum load capacity | 100/300kg |
Weight (approx.) | 3/6/10/15 |
Dimensions (approx.) | LWH1.8*1.8*2.1m |
Mechanism | Rotating stage,X-ray souce/X-ray detector separate movement |
After Sales Service
Why Choose Us?
Warranty: 12 months
Global Support: 24/7 technical assistance and spare parts supply.
Global Support: 24/7 technical assistance and spare parts supply.
Installment:Onsite installment
Training: On-site or remote operation/maintenance training.
Training: On-site or remote operation/maintenance training.
OEM/ODM capabilities
Competitive pricing & bulk discounts
Fast shipping & customs clearance support
Turnkey project solutions
Competitive pricing & bulk discounts
Fast shipping & customs clearance support
Turnkey project solutions
Company Profile
RAYSOV Instrument Co., Ltd.
Established in 2009,RAYSOV Instrument Co., Ltd is a prominent manufacturer of advanced X-ray non-destructive testing and evaluation instruments based in China , RAYSOV has earned reputation as a high-end supplier of automated industrial DR and industrial CT inspection solutions globally.
RAYSOV places immense importance on meeting international standards, holding certifications such as ISO9001, ISO14001, ISO45001, IS027001, and other related certifications. These achievements demonstrate the company's commitment to adhering to strict quality controls and maintaining environmentally friendly practices.
RAYSOV's strengths base on its ownership of independent intellectual property rights,and obtained numerous national invention patents, showcasing its innovative capabilities and enabling it to offer custom-bulit solutions for manufacturing and technology projects worldwide.
RAYSOV places immense importance on meeting international standards, holding certifications such as ISO9001, ISO14001, ISO45001, IS027001, and other related certifications. These achievements demonstrate the company's commitment to adhering to strict quality controls and maintaining environmentally friendly practices.
RAYSOV's strengths base on its ownership of independent intellectual property rights,and obtained numerous national invention patents, showcasing its innovative capabilities and enabling it to offer custom-bulit solutions for manufacturing and technology projects worldwide.
Certifications
Applications and other Products
Various Applications
Other Products
Industrial CT for composite gas cylinder
X-ray 2D/3D inspection system for LNG/CNG/LPG cylinder
Alloy Cylinder or storage tanks cylindrical containers X-ray NDT&NDE solutions
X-ray 2D/3D inspection system for LNG/CNG/LPG cylinder
Alloy Cylinder or storage tanks cylindrical containers X-ray NDT&NDE solutions
Industrial CT
Industrial DR
X-ray pressure vessel inspection system
X-ray NDT machine
Portable X-ray unit
Industrial DR
X-ray pressure vessel inspection system
X-ray NDT machine
Portable X-ray unit
FAQ
Q: What's the lead time for orders?
Q: Do you provide oversea service?
Q: Can I request a customized equpment?
A: Standard models ship in 3 months; customized units require 6 months.
A: Yes, we have partnered service centers in key regions
A: Absolutely! We offer tailored attachments.
Benifit of choose Industrial DR(digital radiography)
1.Holistic Dimensional Inspection: Industrial DR captures both external and internal dimensions with high precision, which is essential for quality control and failure analysis.
2.Accurate 2D projection: Industrial CT can quickly and accurately inspect the internal structure of complex parts, providing detailed 2D projection images.
3.Advanced Software Capabilities: Advancements X-ray radiographic images filer functions in software offer unparalleled accuracy and resolution, comparable to traditional measuring tools.
4.Non-Destructive Testing: It is effective for non-destructive testing and quality assurance, making it indispensable across various industries.
5.save time and save cost:
It reduces the amount of time and resources required to process an image, no need to wait for film to develop in a dark room. And since the image is digital, it can quickly be shared and transferred,and easy to exposure, less tendencies for retakes and additional exposure to radiation.
2.Accurate 2D projection: Industrial CT can quickly and accurately inspect the internal structure of complex parts, providing detailed 2D projection images.
3.Advanced Software Capabilities: Advancements X-ray radiographic images filer functions in software offer unparalleled accuracy and resolution, comparable to traditional measuring tools.
4.Non-Destructive Testing: It is effective for non-destructive testing and quality assurance, making it indispensable across various industries.
5.save time and save cost:
It reduces the amount of time and resources required to process an image, no need to wait for film to develop in a dark room. And since the image is digital, it can quickly be shared and transferred,and easy to exposure, less tendencies for retakes and additional exposure to radiation.
