X-ray Scanner Explosives Security Inspection with 140kv Generator
1 Piece
$9,800Product information
High-quality X-ray Scanner Explosives Security Inspection with 140kv Generator supplied by Safeway Inspection System Limited. Bulk wholesale pricing is $9,800 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Warranty:
1 Year
Conveyor Max Load:
200 Kgs
Penetration:
34 mm Steel Panel
Tunnel Size:
800(L)*650(W) mm
Model NO.:
AT8065
Trademark:
Chinasafe Equipment
Wire Resolution:
Dia 0.0787mm Copper Wire (AWG40)
Trade Term:
FOB, CIF, EXW
Specifications
Warranty:
1 Year
Conveyor Max Load:
200 Kgs
Penetration:
34 mm Steel Panel
Tunnel Size:
800(L)*650(W) mm
Model NO.:
AT8065
Trademark:
Chinasafe Equipment
Wire Resolution:
Dia 0.0787mm Copper Wire (AWG40)
Trade Term:
FOB, CIF, EXW
Generate Direct:
From Bottom to Top
Origin:
Guangdong, China
Film Safety:
ISO 1600 Film-Safe
Payment Term:
LC, T/T, Western Union
Port Of Loading:
Shenzhen
Transport Package:
Wooden
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Not specified
Year Established:
2015-10-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, Western Union
Preferred Trade Term:
FOB, CIF, EXW
Port Of Loading:
Shenzhen
Certificates:
CE for Baggage Scanner, FCC, ISO14001, ISO9001, OHSAS 18001, Radiation Safety Certificate from FDA, RoHS
Product descriptions from the supplier

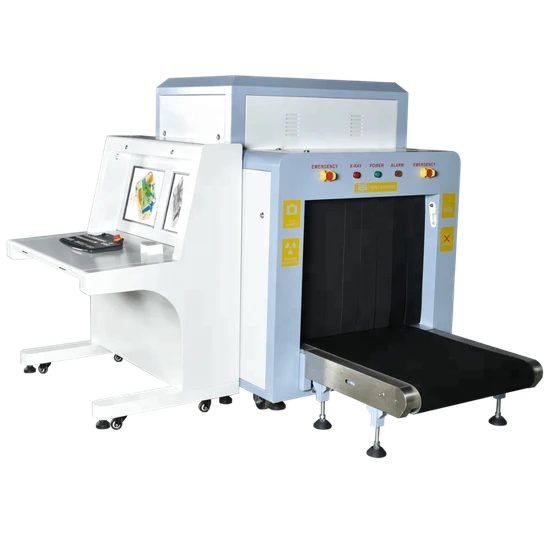

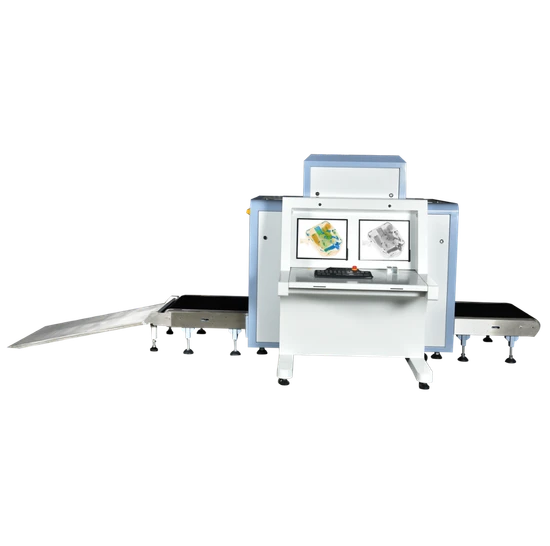

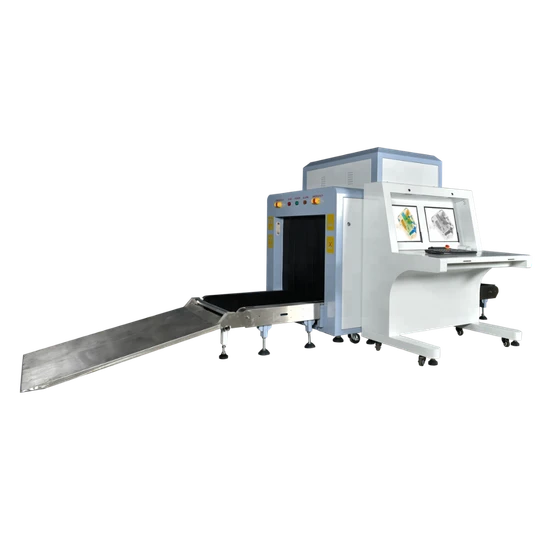

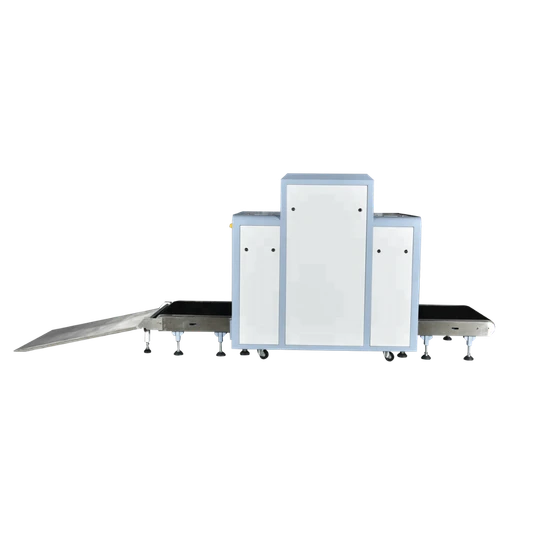

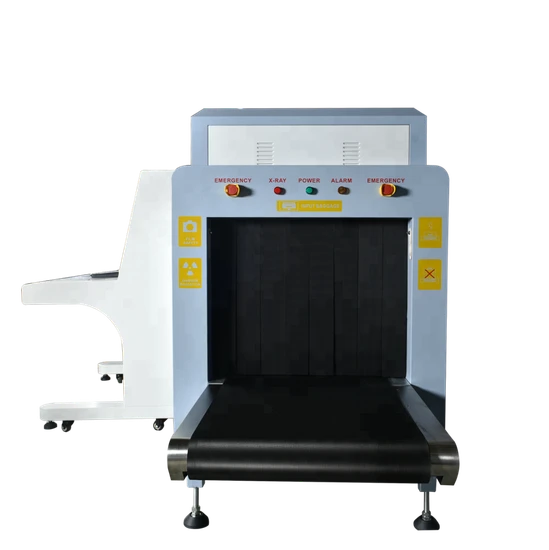

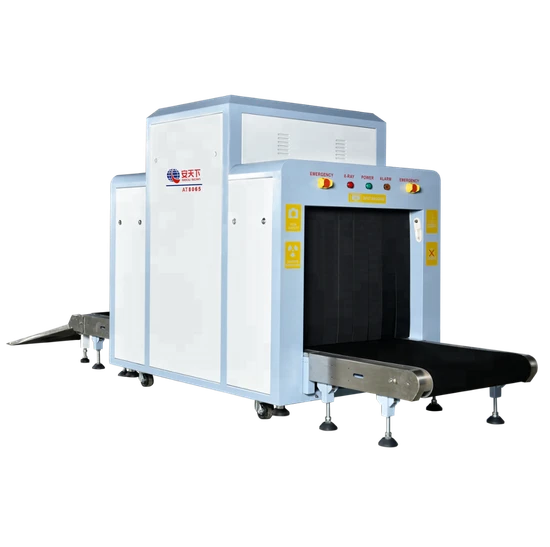

X-Ray Scanner Explosives Security Inspection With 140kv Generator
Physical Specifications
| Unit weight (kgs) | 680 |
| Unit size (mm) | 2848.5(L)*1095(W)*1535.5(H) |
| Package | in wooden pallet |
| Gross weight (kgs) | 800 |
| Packing size | #1: 213*121*179cm#2: 115*90*142cm |
General Specifications
| Tunnel size(mm) | 800(L)*650(W) |
| Conveyor Speed(m/s) | 0.22 |
| Conveyor height(mm) | 338.5 |
| Conveyor Max Load(kgs) | 200 |
| X ray dose per each inspection | 1.5 μGy |
| X ray leakage | <0.25 μGy / h |
| Penetration | 34mm steel |
| Wire Resolution | dia 0.0787mm copper wire (AWG40) |
| Penetration Resolution | dia 0.16mm copper wire (AWG34) under three-step aluminum wedge 9.5mm, 15.9mm, 22.2mm |
| Spatial resolution: | dia1.0mm,Vertical: dia1.0mm |
| Power Consumption | max. 1KW |
| Noise | < 58 dB |
| Film Safety | Guarantee ASA/ISO1600 Film |
X-ray Generator (single)
| Anode Voltage | 140 KV |
| Anode power | 0.4mA |
| Generate angle | 80 degree upward |
| Generate direct | from bottom to top |
| Cooling / Duty Cycle | Oil Cooling /100% |
| Brand | made by ourself |
Compliance
| International | * ISO19001 ; ISO14001 ; OHSMS18001 ; * CE * USA FDA * Maximum X-ray leakage of less than 5 μSv/h(0.5mR/h) measured at 5cm from any external surface. (European standard - less than 1 μSv/h(0.1mR/h) measured at 10cm from any external surface) |
| National (China) | * Health Inspection Report * Computer Software Copyright Registration Certificate * Software Product Registration Certificate * Radiation Safety Certificate from Ministry of Public Security * Quality Certification from Safety and Police Electronic Products Quality Inspection Center * Design pantent certification: Patent No. : 201020700245.2 ; Patent No. : 201020700245.8 ; Patent No. : 201020700256.0 |
8065 Dimension
Screening Images
Company Information
Safeway Inspection System Company Limitedis the largest anti-explosive and security inspection supplier in China, among which the sellf-developed X ray baggage scanner has the biggest market share in China and the walk through metal detector has the biggest market share all over the world. It's delicated to the R&D, producing, sales of the x ray inspection equipment and all kinds of metal detector, anti-explosive articals, being the creative technology owner company of The Chinese Ministy of Public Security.
Currently, we have 460 employees, set up 5 R&D teams, including 11 Doctors and 46 masters. And self-developed many series of products like: X Ray Scanning Systems, Metal Detector, Explosive and Narcotics Detector , Dangerous Liquid Scanner, Vehicle Inspection Devices. We have total 35 models of security products have been rewarded high recognition and praises from customers at home and abroad after entering the market.
Our company regards product quality as enterprise life, strictly controls the every manufacturing part according to ISO09000 standard and actively approaches to international first class products.
Case List
Safeway Systemoffers comprehensive security solutions and full service for both domestic and international big events to guarantee their smooth conducting.
These events include but are not limited to: the 2008 Beijing Olympic Games, the 2009 National Day Celebration of the 60th Anniversary of the PRC China, the 2010 Shanghai Expo and Guangzhou Asian Games, the 2010 CHINA-EURASIA EXPO, the 2011 Shenzhen Universiade, the 2013 Shenyang National Games, the Africa World Cup, and the Qingdao Olympic Games.
Safeway Systemhas shown the world China's high-tech security products, while thousands sets of equipment and services are being delivered to venues, media centers and logistic warehouses.
