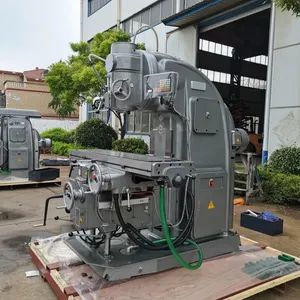

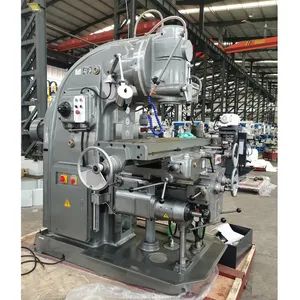

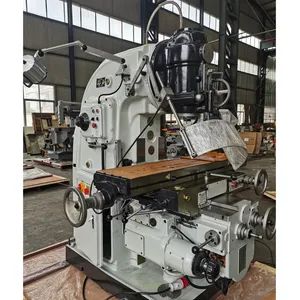

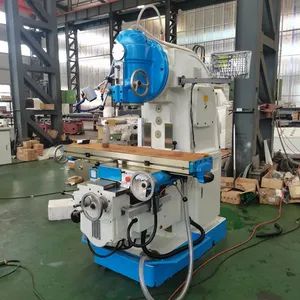

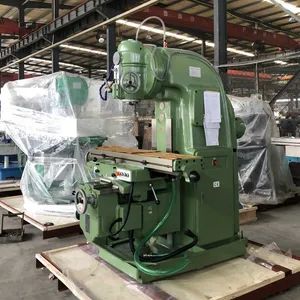

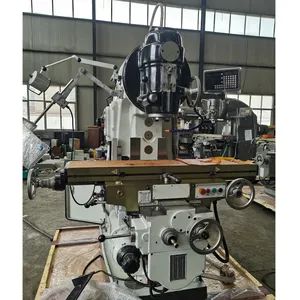

X5040 Conventional Metalworking Vertical Milling Drilling Machine
set
Negotiable
Product information
High-quality X5040 Conventional Metalworking Vertical Milling Drilling Machine supplied by SHANDONG XILI MACHINE TOOL CO., LTD.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Spindle Nose To Table:
115-500mm
Spindle Motor:
11kw
Table Feed Speed Y:
15-786mm/Min
Table Size:
1700X400mm
Packing Size(L/W/H):
2.15X2.40X2.30m
Table Feed Speed X:
23.5-1180mm/Min
Table Rapid Speed(X/Y/Z):
2300/1540/770mm/Min
Spindle Speed:
30-1500rpm(18step)
Specifications
Spindle Nose To Table:
115-500mm
Spindle Motor:
11kw
Table Feed Speed Y:
15-786mm/Min
Table Size:
1700X400mm
Packing Size(L/W/H):
2.15X2.40X2.30m
Table Feed Speed X:
23.5-1180mm/Min
Table Rapid Speed(X/Y/Z):
2300/1540/770mm/Min
Spindle Speed:
30-1500rpm(18step)
Mill Head Swivel:
45 Degree(Left & Right)
Production Capacity:
60sets/Month
Table Feed Speed Z:
8-394mm/Min
Max Load:
800kg
HS Code:
8459590000
Spindle Stroke:
85mm
Table Power Travel(X/Y/Z):
880/300/365mm
Table Manual Travel(X/Y/Z):
900/315/385mm
Controlling Mode:
Artificial
Certification:
CE, ISO 9001
Origin:
China
Trade Term:
FOB, CIF, CFR
Spindle Taper:
ISO50
Type:
Knee-and-Column Milling Machine
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Structure:
Lifts
Automatic Grade:
Manual
Object:
Metal
Condition:
New
Transport Package:
Plywood Case on Steel Pallet
Precision:
Precision
Port Of Loading:
Qingdao Port
Milling Cutter Type:
Various
Milling Cutter Structure:
Various
Model NO.:
X5040
Trademark:
XILI / OEM
Specification:
colors, voltage customized
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2007-05-23
Annual Revenue Amount:
Not specified
Numbers Of Employees:
174
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR
Port Of Loading:
Qingdao Port
Certificates:
CE
Product descriptions from the supplier
X5040 Conventional Metalworking Vertical Milling Drilling Machine
√ conventional vertical knee type milling machine
√ 45° rotary mill head (left and right), with milling and drilling functions
√ 18 steps, 30-1500rpm wide range spindle speed, promise good torque when operating
√ gearbox directly driven spindle for powerful milling
√ mechanical driven work-table with high rigidity
√ high rigidity machine structure ensures 800kg (X5040), 500kg (X5032) heavy load capacity
√ control buttons are located both in front and at side of machine, convenient to operate
| Specification | Unit | X5040 | X5032 |
| Table size | mm | 1700X400 | 1325X320 |
| T-slots(NO./Width/Pitch) | 3/18/90 | 3/18/70 | |
| X axis travel(manual/auto) | mm | 900/880 | 700/680 |
| Y axis travel(manual/auto) | mm | 315/300 | 255/240 |
| Z axis travel(manual/auto) | mm | 385/365 | 370/350 |
| Rapid feed speed | mm/min | 2300/1540/770 | |
| Table feed speed-X | mm/min | 23.5-1180 | |
| Table feed speed-Y | mm/min | 15-786 | |
| Table feed speed-Z | mm/min | 8-394 | |
| Max load | kg | 800 | 500 |
| Spindle taper | 7:24 ISO50 | ||
| Spindle speed range | r/min | 30~1500 | |
| Spindle speed step | steps | 18 steps | |
| Spindle travel | mm | 85 | 70 |
| Max.swivel angle of milling head | ±45° | ||
| Spindle nose to table distance | mm | 115/500 | 30-400 |
| Main motor Power | kw | 11 | 7.5 |
| Overall dimensions(L×W×H) | mm | 2556×2159×2258 | 2294X1770X1904 |
| Net weight | kg | 4250 | 2900 |
products are strictly according to European standard, with CE certificate
Packing type: machine is covered with damp-proof plastic film, then packed in plywood case (with steel pallet)
Delivery type: machine package is a little high, but can load into 40HQ container
Company has mainly 12 series products include hundreds of models:
CNC gantry type machining center,
VMC machining center,
Simple NC milling machine,
conventional Vertical milling machine,
conventional Horizontal milling machine,
conventional Universal swivel head milling machine,
conventional Sliding ram milling machine,
conventional Bed type milling machine,
conventional Tool milling machine,
conventional Gantry milling machine etc.
1. What is the MOQ ?
Minimum order quantity is 1 set.
2. What is the payment term ?
Usually we prefer T/T. 30% deposit, 70% balance payment against machine ready to delivery photos and videos.
Other payment terms are also acceptable after discussion.
3. What is the trade terms ?
Usually is FOB.
Others like CIF, CFR, EXW...... are also acceptable.
4. How long is the guarantee ?
12 month after machine's delivery from factory.
Within warranty, we guarantee spare parts free of charge and online supports for installation, operation, maintance and trouble shooting etc.
5. What kinds of machines do you supply?
Company specialized in producing CNC & manual milling machines. Include:
CNC gantry machining center
Vertical machining center
Simple NC milling machine
Conventional manual milling machines (Vertical, Horizontal, Universal, Turret mill, Swivel head mill, Power sliding ram type, Bed type, Tool milling machine, Gantry type etc.)
5. How can I believe your company ?
XILI Machine Tool has more than 20 years milling machine production history, covers an area of about 50000 square meters, with 20 million CNY fixed assets and more than 200 employees.
Xili Machine Co., Ltd. is a ISO9001 company, all products are with CE certificate.
XILI Machine Tool has more than 20 years milling machine production history, covers an area of about 50000 square meters, with 20 million CNY fixed assets and more than 200 employees.
Xili Machine Co., Ltd. is a ISO9001 company, all products are with CE certificate.
