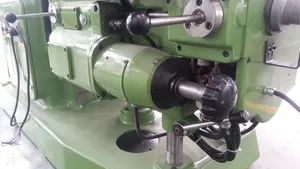

X6140 Universal Horizontal Heavy Milling Machine Origin China Condition New Model NO. X6140 Trademark White Eagle Precision High Precision
Piece
Negotiable
Product information
High-quality X6140 Universal Horizontal Heavy Milling Machine Origin China Condition New Model NO. X6140 Trademark White Eagle Precision High Precision supplied by Anhui Chizhou Household Machine Tool Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Production Capacity:
100 Sets/ Month
Specification:
240x220x225CM
Certification:
CE, ISO 9001
Origin:
China
Milling Cutter Type:
Cylindrical Milling Cutter
Controlling Mode:
Electrical
Trade Term:
FOB, CIF
Precision:
High Precision
Specifications
Production Capacity:
100 Sets/ Month
Specification:
240x220x225CM
Certification:
CE, ISO 9001
Origin:
China
Milling Cutter Type:
Cylindrical Milling Cutter
Controlling Mode:
Electrical
Trade Term:
FOB, CIF
Precision:
High Precision
Milling Cutter Structure:
Indexable Type
Payment Term:
LC, T/T, D/P, Western Union
Condition:
New
Transport Package:
Plywooden Case Standard Export Package
Automatic Grade:
Semiautomatic
Port Of Loading:
Shanghai Port
Trademark:
White Eagle
Model NO.:
X6140
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Year Established:
1994-06-30
Annual Revenue Amount:
Not specified
Numbers Of Employees:
122
Preferred Payment Term:
LC, T/T, D/P, Western Union
Preferred Trade Term:
FOB, CIF
Port Of Loading:
Shanghai Port
Certificates:
ISO9001:2015
Product descriptions from the supplier

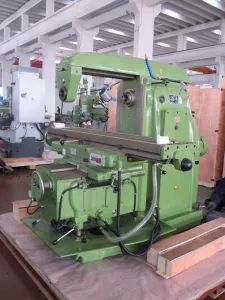

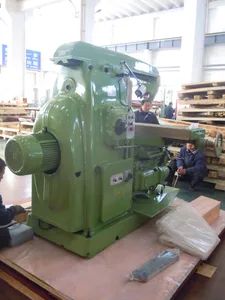

X6140 Universal horizontal heavy milling machine
Optional accessories :3 axis DRO
Universal dividing head F11125A
Rotary table TS250A
Vertical milling head
Protection guard for working table
| unit | specification X6140 | |
| TABLE :- | ||
| Table size | mm | 1700x400 |
| T slot | no | 3 |
| T Size ( Width ) | mm | 18 |
| T Centre distance | mm | 90 |
| Max. load of Table | kg | 800 |
| Max.swivel of table | degree | ±45º |
| machining range :- | ||
| table Longitudinal travel(manual/auto) | mm | 900/880 |
| table Cross travel (manual/auto) | mm | 315/300 |
| table Vertical travel(manual/auto) | mm | 380/360 |
| MAIN SPINDLE :- | ||
| Spindle taper | iso50 7:24 | |
| quill travel | mm | / |
| spindle speed /step | rpm | 30-1500/18 |
| vertical spindle axis to column surface | mm | / |
| vertical spindle nose to table surface | mm | / |
| horizontal spindle axis to table surface | mm | 30-410 |
| horizontal spindle axis to arm bottom | mm | 190 |
| arm travel | mm | 700 |
| FEEDS :- | ||
| Longitudinal/cross feed | mm / min | 23.5-1180/18 |
| Vertical/step | mm/min | 8-394/18 |
| Longitudinal/cross rapid speed | mm / min | 2300 |
| Rapid Traverse vertical | mm/min | 770 |
| POWER :- | ||
| main motor | kw | 11 |
| (X/Y/Z) feed motor | kw | 3 |
| coolant motor | kw | 0.125 |
| --others | ||
| package dimension | cm | 240X220x225 |
| overall dimension | cm | 255.6X215.9X177 |
| N/W,G/W | kg | 3850 |
| No. | Name | Specification | Qty | Remark |
| 1 | Horizontal milling cutter arbor subassembly |
φ22 | 1 set | |
| 2 | Horizontal milling cutter arbor subassembly |
φ50 | 1 set | |
| 3 | Horizontal milling draw bar subassembly |
1 set | ||
| 4 | ISO50 Milling chuck | 4,5,6,8, 10,12,14,16 |
1 set | 8 pieces/set |
| 5 | ISO50 Milling arbor | φ40 | 1 piece | |
| 6 | 7:24 Taper sleeve | 7:24 ISO50/MS4 |
1 piece | |
| 7 | Foundation bolts | M20×500 | 4 sets | |
| 8 | Double ended wrench | 17×19 | 1 piece | |
| 9 | Double ended wrench | 22×24 | 1 piece | |
| 10 | Double ended wrench | 27×30 | 1 piece | |
| 11 | Double ended wrench | 32×36 | 1 piece | |
| 12 | Single ended spanner | 14 | 1 piece | may replace with 11×14 |
| 13 | Single ended spanner | 41, 55 | Each 1 piece | |
| 14 | Inner hexagon spanner | 5, 8, 10 | Each 1 piece | |
| 15 | Oil gun | 1 piece |
Optional accessories :3 axis DRO
Universal dividing head F11125A
Rotary table TS250A
Vertical milling head
Protection guard for working table
