Xinglong 1600mm Single Facer 2 Layer Corrugated Paper Board Making Machine
1 set
$18,500Product information
High-quality Xinglong 1600mm Single Facer 2 Layer Corrugated Paper Board Making Machine supplied by Cangzhou Newland Machinery Co., Ltd.. Bulk wholesale pricing is $18,500 per set with a minimum order of 1 set. Inquiry for latest prices.
Working Speed:
0-80m /Min
Production Capacity:
100 Sets Per Year
Design Speed:
100m/Min
Main Power:
11kw
Specification:
1200/1400/1600/1800mm/2000/2200
Width:
1600
Pre Heater Dia.:
320
Flute Roller Dia.:
320
Specifications
Working Speed:
0-80m /Min
Production Capacity:
100 Sets Per Year
Design Speed:
100m/Min
Main Power:
11kw
Specification:
1200/1400/1600/1800mm/2000/2200
Width:
1600
Pre Heater Dia.:
320
Flute Roller Dia.:
320
Pressure Roller Dia.:
320
HS Code:
8441309000
Automation:
Automatic
Flute Type:
B C E F
Certification:
CE
Origin:
China, Hebei
Trade Term:
FOB, EXW, CFR, CIF, DDP, DAP
Transport Package:
Film
Type:
Fingerless
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Condition:
New
Paper Thickness:
Normal Specification Paper
Suitable For:
Paper
Model NO.:
SF 320-1600
Model:
Sf320-1600
Port Of Loading:
Tianjin Port
Trademark:
Xinglong
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Year Established:
2024-03-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, EXW, CFR, CIF, DDP, DAP
Port Of Loading:
Tianjin Port
Certificates:
CE, CERTIFICATE
Product descriptions from the supplier
Xinglong 1600mm Single facer 2 layer corrugated paper board making machine

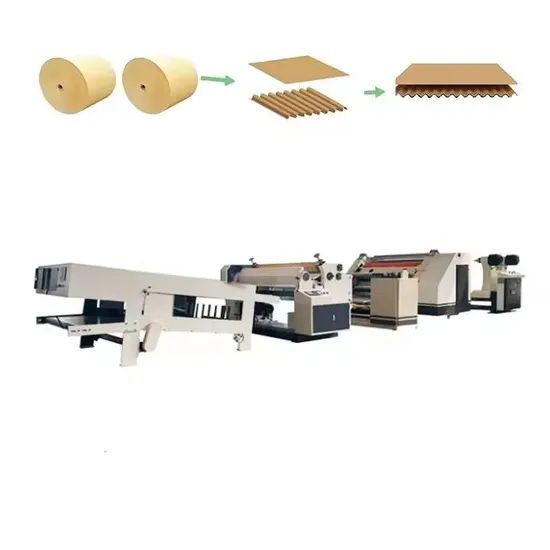

Single facer line is also called 2-layer corrugated paperboard production line. This Single facer Line is composed of Paper Roll stand, Single facer machine, paper cutting and single tile paper (collect) machine. To use the web paper material, single face machine production line, producing and cutting single face corrugated paper as required sizes, it forms the corrugated board, without drying.
This unit has the advantages of reasonable fabric, advanced technology, high quality of production, high efficiency, low
workmanship, operation and maintenance easy.
This is the preferred equipment for the production of corrugated cardboard of the cardboard factories.
| Model | SF280-1800 |
| Working width | 1800 mm |
| Heating way | electric/steam |
| Flute type | A B C D E F |
| Operate direction | Left or right according to customer's factory |
| Designed speed | 100m/min |
| Economic running speed | 0-80m/min |
| Temperature range | 160-200ºC |
| Air source | 0.4-0.8Mpa |

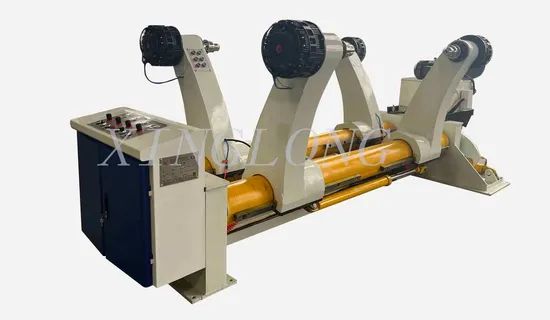

Hydraulic Roll stand
1. Symmetrical structure can install two rolls of paper at the same time and continually change paper
2. Full hydraulic control paper roll damp, life-lower, loosen, clamp, left-right movement.
3. Adopts pneumatic tension to adjust basis paper tension 4point brake control paper tension, manual control, also can control tension with splicer together.

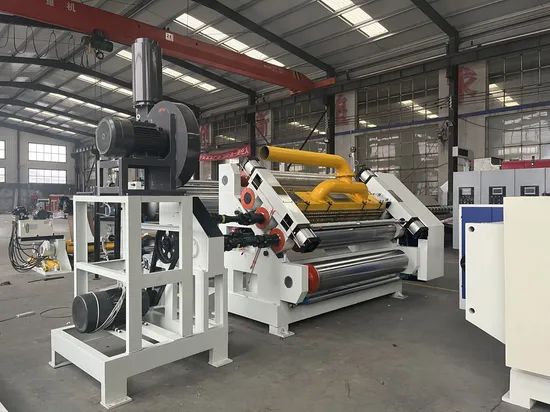

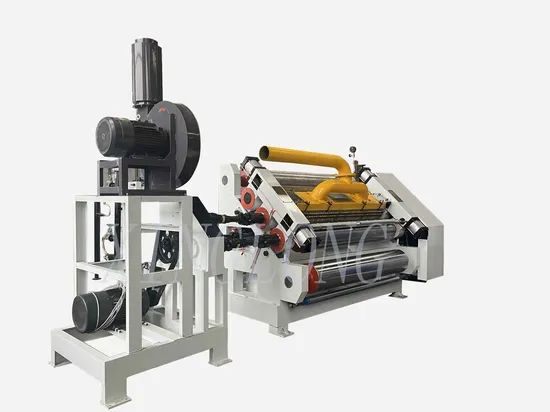

Single facer machine
1. Drive using gimbal drive
2. The glue coating part adopt automatic circulating glue feeding way (manual or electrical isolation device)
3. Pneumatic control to adjust the glue feeding and adjust gluing capacity electrically or manually; the glue parts running separately while the main motor stopped, prevent paste from drying up.
8. It is equipped with the high pressure powerful air fan with the wind capacity adjustable device and silencer
1. Drive using gimbal drive
2. The glue coating part adopt automatic circulating glue feeding way (manual or electrical isolation device)
3. Pneumatic control to adjust the glue feeding and adjust gluing capacity electrically or manually; the glue parts running separately while the main motor stopped, prevent paste from drying up.
8. It is equipped with the high pressure powerful air fan with the wind capacity adjustable device and silencer

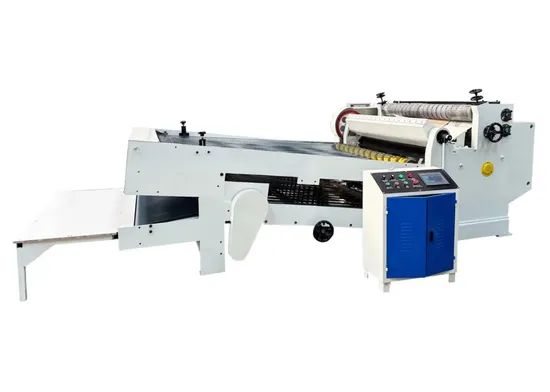

NC cut off and stacker
1. Single knife sheet cutter can do set-length cutting reel paper and single facer board, change order fast, high cutting precision, fast work speed, low waste, it also suit for color-printing box package.
2. Adopts adjustable-speed motor reduce the fault caused by transmission wearing.
3. Used high speed flat type knife, high hardness with long use life. Precision adjustable gapless gear ensure accurate mesh, good cutting with high straightness, protect knife
