Xj350 Oilfield Drilling Rig New Integrated Automatic Truck-Mounted Type Workover Rig
1 Piece
$300,0001 Piece
$20,000,000Product information
High-quality Xj350 Oilfield Drilling Rig New Integrated Automatic Truck-Mounted Type Workover Rig supplied by HEBEI XINHUAFA PETROLEUM MACHINERY CO., LTD.. Bulk wholesale pricing ranges from $300,000 to $20,000,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Drill Hole Depth:
1500m
Approach Angle/Departure Angle:
23°/16°
Height M:
25/29/31
Main Rope Diameter Mm:
26
Minimum Turning Diameter M:
28
Nominal Overhaul Well Depth:
3200
Nominal Minor Workover Depth:
4000
Host Mass Kg:
42000
Specifications
Drill Hole Depth:
1500m
Approach Angle/Departure Angle:
23°/16°
Height M:
25/29/31
Main Rope Diameter Mm:
26
Minimum Turning Diameter M:
28
Nominal Overhaul Well Depth:
3200
Nominal Minor Workover Depth:
4000
Host Mass Kg:
42000
Rated Hook Load Kn:
600
HS Code:
84139100
Maximum Hook Load Kn:
900
Motor:
AC Motor
Origin:
Cn
Trade Term:
FOB, CIF, CFR
Type:
Four-Wheel trailer
Engine Model:
Isle 375/40
Payment Term:
LC, T/T, D/P, PayPal
Condition:
New
Port Of Loading:
Qingdao Port
Drilling Way:
Rotary
Transport Package:
Wood Box
Model No.:
Xj350
Model NO.:
Xj350
Specification:
standard
Trademark:
xinhuafa
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2006-02-13
Annual Revenue Amount:
Not specified
Numbers Of Employees:
84
Preferred Payment Term:
LC, T/T, D/P, PayPal
Preferred Trade Term:
FOB, CIF, CFR
Port Of Loading:
Qingdao Port
Certificates:
API, ISO9001 Certificate of Lighting
Product descriptions from the supplier

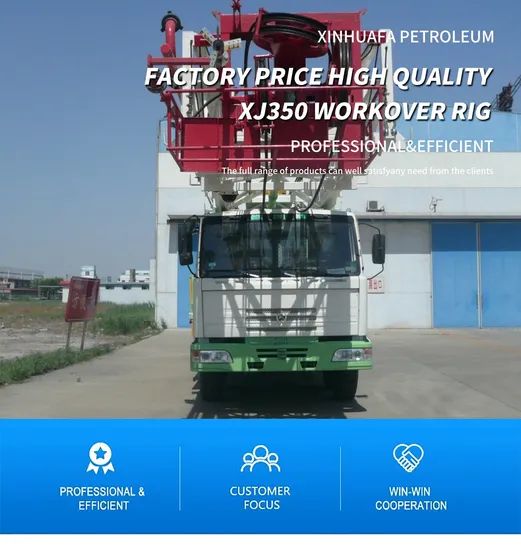

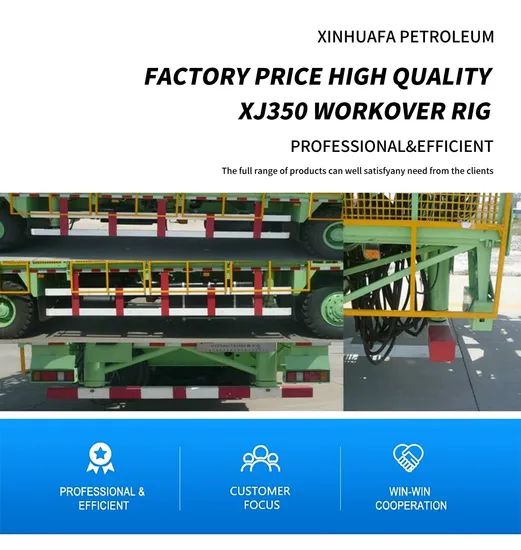

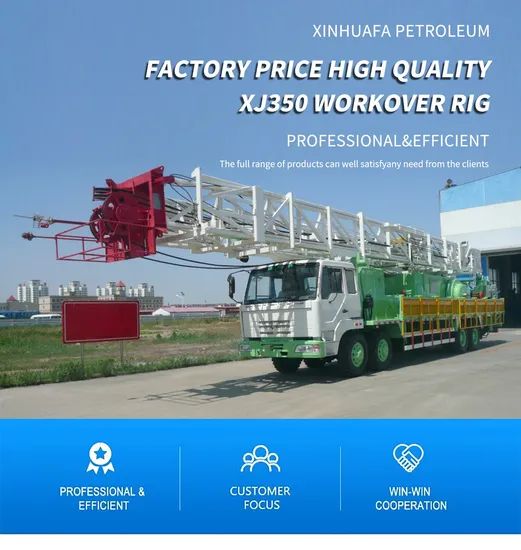

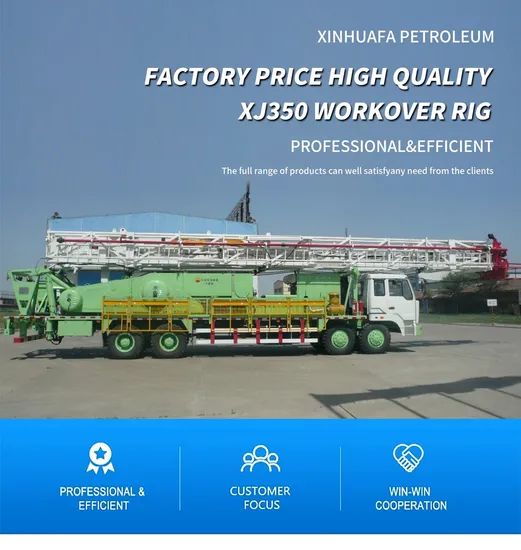

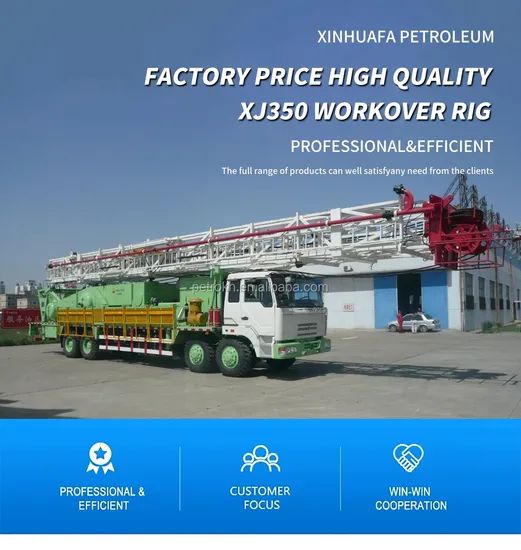

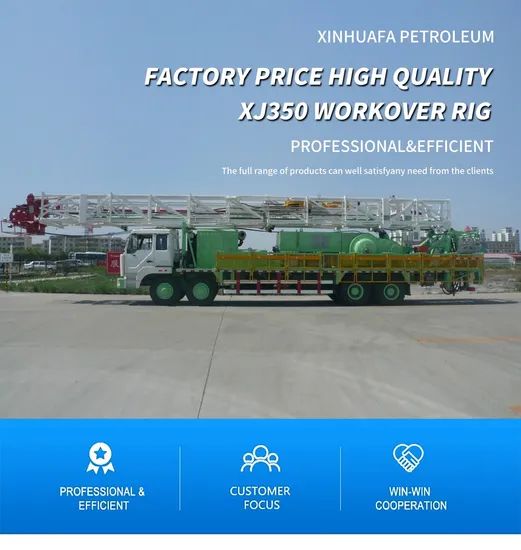

Workover Rig XJ250(40t)/XJ350(60t) for Oil and Gas Drilling Machine
Our companyfocuses on the manufacturing of petroleum equipment and its parts.
With many years of professional manufacturing experienceour products are
powerful, simple to operate,and can be customized according to customer needs.
With many years of professional manufacturing experienceour products are
powerful, simple to operate,and can be customized according to customer needs.
Main technical parameters of XJ350 workover rig
|
Description |
XJ350 Workover Rig (Overhaul) |
XJ350 Workover Rig (Servicing) |
|
|
Workover Depth |
3,200m (10,500ft, 2-7/8″DP)2,500m (8,200ft, 3-1/2″DP) |
|
|
|
Servicing Depth |
4,000m (13,120ft, 2-7/8″EUE Tubing) |
||
|
Rated Hook Load |
600kN (134,900 lbf) |
||
|
Max. Hook Load |
900kN (202,330 lbf) |
||
|
Traveling System |
3×4 {Φ26mm (1'') Wireline} |
||
|
Hook Hoisting Speed |
0.25~1.4m/s (0.82~4.6ft/s) |
||
|
Overall Dimensions(l×w×h) |
18.5×2.9×4.2m60.7ft×9.5ft×13.8 ft |
18.5×2.85×4.2m60.7×9.4×13.8ft |
|
|
Total Weight |
51,000kg (112,440 lb) |
49,500kg (109,130 lb) |
|
|
Speed |
45km/h (28mil/h) |
||
|
Carrier |
Self-propeller 10×8 |
||
|
Engine Model andRated Power |
C9260kW (350hp)/2100rpm |
Detroit S6063298kW (400hp)/2100rpm |
|
|
Transmission |
Allison 4700 OFS |
Allison M5610s |
|
|
Height |
31.7m (104ft) |
||
|
Max. Static Load |
900kN (202,330 lbf) |
||
|
Racking Board Capacity |
4,000m (13,120 ft, 2-7/8″EUE Tubing) |
||
|
Racking board Height |
16.8m (55 ft) |
||
|
Drawwork Rated Power |
224kW (300hp, Double drum) |
238kW (320hp) |
|
|
Main Drum |
Φ406×890mm (Φ16″×35'') |
Φ429×965mm (Φ16.9″×38'') |
|
|
Max. Faster Line Pull |
180kN (40,470 lbf ) |
||
|
Sanding Drum |
Φ965×264mm (Φ38″×10.4'') |
||
|
Air Assist Brake System |
KOBELT Disc4-7-35″ Caliper 5026-CM |
KOBELT Disc4-7-48″ Caliper 5026-CM |
|
|
Drill Floor (l×w×h) |
4.2×4.2×3.7m (13.8×13.8×12.1 ft) |
|
|
|
Swivel Model and Max. Load |
SL90 900kN (202,330 lbf) |
|
|
|
ZP125 Rotary Table |
Max. Load 900 kN (202, 330 lbf Max. Open Dia. 292mm (11.5") |
||
1.Designed with a drilling company, first of its kind in China.
2.One-button automated operation with high degree of automation.
3.Reduces labor cost.
4.Decreases labor intensity.
5.Operation is safe and reliable.
3.Reduces labor cost.
4.Decreases labor intensity.
5.Operation is safe and reliable.
The XJ350 workover rig is mainly used for shallow well workover operations. Mainly including lifting operation system and rotating operation system
With the chassis walking system, this product is fully equipped and has a wide range of applications. Equipped with a drill floor and related components, it can be used for large
Repair homework. This product has reasonable overall layout, compact structure, good transportation performance, convenient on-site installation, and
Features such as easy maintenance.
1. available in lengths of 31m, 29m, and 25m;
2. The chassis has good off-road performance. The single drum workover rig is an 8x8 full drive chassis, and the XJ350 dual drum workover rig is
10x8 chassis;
3. The auxiliary brake of the winch is a water brake, which can be either a pneumatic caliper brake or an air controlled water-cooled disc brake;
4. Optional drill floor and simple workbench;
With the chassis walking system, this product is fully equipped and has a wide range of applications. Equipped with a drill floor and related components, it can be used for large
Repair homework. This product has reasonable overall layout, compact structure, good transportation performance, convenient on-site installation, and
Features such as easy maintenance.
1. available in lengths of 31m, 29m, and 25m;
2. The chassis has good off-road performance. The single drum workover rig is an 8x8 full drive chassis, and the XJ350 dual drum workover rig is
10x8 chassis;
3. The auxiliary brake of the winch is a water brake, which can be either a pneumatic caliper brake or an air controlled water-cooled disc brake;
4. Optional drill floor and simple workbench;
HebeiXinhuafa Petroleum Machinery Co, Ltd. is a specialized manufacturer that
focus on the manufacturing of oil drilling equipment and spare parts since 2006.Our main products aremud pumpandaccessorieswhich can be interchangeable with many mud pump of oversea and domestic brand,includingBOMCOF series, HHF series,NOV P series,LANSHI3NB series, Oingzhou 3NBseriesand other mud pump.The products we supply are thecylinder liner, piston,valve(full open type and web type),piston rod, extension rod, cross head,bearing,v belt,safety valve,manifold,sealingand other mud pump accessories.The products allmeet the requirements of IS09001, and API-7K (American Petroleum Association) standards.Since 2023,we expand our workshop which cover 20000 sqm,which can improve our production capacity and products stocks.
During the almost 20 years development,we have many advantages as below:
1.The company is located in Hengshui City which 2 hours by high speed train from Being.Very convenient if customers come to visit .
2.The factory is equipped withadvancedmachine,manytechnician with richexperience,strict quality control procedure make sure to supply bestqualityproduct.
3.Production capacity is 3000 units /month,and inventoryenoughcan timely meet customer needs.
4. Perfect after-sales serviceand immediate response service at 24/7.
Principle: focus on service, and strive to achieve win-win for customers, employees andcompany.
Orientation: A professional One-stop supplier of oil and gas drilling equipment.
Mission: To provide high quality products and services for the oil and energy industry.
Values: Take responsibility and work hard,with seizing the day
Vision: To serve more than 80% of oil and gas drilling engineering customers within 5 years.
1,Q. How long for your delivery time?
A. It will take about 15-35days to finish an order, but the exact time is according to actual situation.
2,Q. Can you offer OEM or design services?
A. Yes, we have our own design department. We can make OEM products according your requirements.
3,Q.How long is the warranty?
A. 1 year
