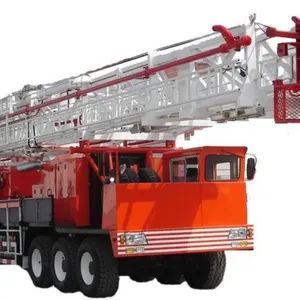

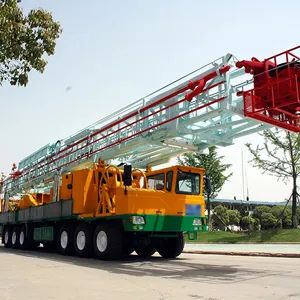

Xj450 Drilling Rig and Workover Rig Drilling Tools Workover Depth 4, 500m
Set
Negotiable
Product information
High-quality Xj450 Drilling Rig and Workover Rig Drilling Tools Workover Depth 4, 500m supplied by Shandong Light Fir Machinery Equipment Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Production Capacity:
100000PCS/Year
Dimension(L*W*H):
18.50X3.03X4.20
Model NO.:
2242
Voltage:
24V/220V/380V
Drill Hole Diameter:
250-300mm
Weight:
51500
Specification:
560X350X350 cm
Drill Hole Depth:
>300m
Specifications
Production Capacity:
100000PCS/Year
Dimension(L*W*H):
18.50X3.03X4.20
Model NO.:
2242
Voltage:
24V/220V/380V
Drill Hole Diameter:
250-300mm
Weight:
51500
Specification:
560X350X350 cm
Drill Hole Depth:
>300m
Transport Package:
Bulk
Origin:
China
Bit Type:
Cone Bit
Motor:
DC Motor
Power Type:
Diesel
Applicable Industries:
Energy & Mining
Trade Term:
FOB, EXW, CFR, CIF, DAT, DAP, CIP, CPT, Others, FCA
After Sales Service Provided:
Field Maintenance and Repair Service
Certification:
ISO 9001:2000, ISO 9001:2008, API
Payment Term:
LC, T/T
Trademark:
LFM
Condition:
New
Usage:
Oil Well
Drilling Way:
Rotary
Port Of Loading:
Tianjin, Shanghai, Qingdao
Model No.:
Xj450
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2021-08-17
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, EXW, CFR, CIF, DAT, DAP, CIP, CPT, Others, FCA
Port Of Loading:
Tianjin, Shanghai, Qingdao
Certificates:
API
Product descriptions from the supplier
The technical advantage of this workover is that the supercapacitor module can be used as the supplementary power supply, and high load operation even in the insufficient capacity of power grid. The basic principle is: the super capacitance absorbs the power of the power grid under the workover, and releases the supercapacitor to supply the frequency conversion motor to make up for the lack of power grid capacity. Without the power supply condition of the oil field, the motor improvement of the workmachine.
Power system: dual power input, the diesel engine adopts diesel engine to match the series hydraulic gearbox produced by Guizhou Kaisheng; the electric power adopts 110kW frequency conversion motor after deceleration and twisting through the third gear transmission, input into the transfer box, the transfer box and corner transmission box connection, power input into the winch;
Electric control and energy storage system: it mainly consists of power control cabinet, power transformer, remote operating table, energy storage capacitance interval, etc. The control of electric power system is concentrated on the remote operating table to facilitate the centralized control of drilling drill.
Special chassis: the chassis adopts 6000 + 1350 wheelbase special chassis, and the reasonable layout of diesel engine and hydraulic transmission, frequency conversion motor, etc.
Drilling&Workover Rig
XJ450 (100t) Drilling&Workover Rig has a workover depth up to 5,800m and a service depth up to 7,000m. Equipped with rotary table, swivel and drilling tools, they can perform as a mobile drilling rig up to 2,000m depth. The main rig can be customized with well control, solid control and other systematic setup to become your complete solution to workover and drilling operations.
Features:
1. The mast is available in 31m, 29m or 25m.
2. The chassis has good cross-country performance. The single drum work-over rig is with 8×8 full-driven chassis. The double drum
work-over rig is with 10×8 chassis.
3. Workover unit is with the characteristic of reasonable arrangement, compact structure, good transportation performance and easy
for field installation and maintenance, etc.
4. The drawworks auxiliary brake is water brake. Pneumatic tong brake and pneumatic water cooling disc brake are optional.
5. Substructure and simple working platform are optional.
Features:
1. The mast is available in 31m, 29m or 25m.
2. The chassis has good cross-country performance. The single drum work-over rig is with 8×8 full-driven chassis. The double drum
work-over rig is with 10×8 chassis.
3. Workover unit is with the characteristic of reasonable arrangement, compact structure, good transportation performance and easy
for field installation and maintenance, etc.
4. The drawworks auxiliary brake is water brake. Pneumatic tong brake and pneumatic water cooling disc brake are optional.
5. Substructure and simple working platform are optional.
|
Description |
XJ450 Workover Rig |
|
Workover Depth |
4,500m (14,760ft, 2-7/8" DP)3,500m (11,480ft, 3-1/2" DP ) |
|
Servicing Depth |
5,500m (18,045ft, 2-7/8" EUE Tubing) |
|
Rated Hook Load |
800kN (179,850lbf) |
|
Max. Hook Load |
1,125kN (252,900lbf) |
|
Traveling System |
4×5 (Φ26mm/1" Wireline) |
|
Hook Hoisting Speed |
0.25-1.4m/s (0.82-4.6ft/s) |
|
Overall Dimensions (L×W×H) |
18.5×3.1×4.2 m 60.7×10.2×13.8ft |
|
Weight |
55,000kg (121,250lbs) |
|
Max. Travel Speed |
45km/h (28mph) |
|
Carrier |
Self-propeller 10×8 |
|
Transmission |
Allison 4700 OFS |
|
Max. Static Hook Load |
1,125kN (252,900lbf) |
|
Racking Board Capacity |
5,500m (18,045ft, 2-7/8" EUE Tubing) |
|
Racking Board Height |
20.9m (68.6ft) |
|
Drawwork Rated Power |
235kW(320hp) |
|
Main Drum |
Φ406×947mm(Φ16"×37.3") |
|
Max. Faster Line Pull |
180kN (40,500lbf) |
|
Sanding Drum |
Φ965×264mm (Φ38"×10.4") |
|
Air Assist Brake System |
KOBELT Disc 4-7-48″Caliper 5026-CM |
|
Drill Floor ( L×W×H) |
6.74×5×5m (22.1×16.4×16.4ft) |
|
Swivel Model andMax. load |
SL1101,100kN (247,290 lbf) |
|
ZP175 Rotary Table |
Max. Load 1,350kN (303,500 lbf ); Max. Open Dia. 444.5mm(17.5") |
SHANDONG LIGHT FIR MACHINERY Co., Ltd(LFM) is located in Shengli Oilfield, Shandong Province, China.
LFM is a physical enterprise integrating mechanical processing and manufacturing and sales of special petroleum equipment. We have two cooperative production bases, which can produce OCTG and various accessories and tools.
The products we can provide include: Rig accessories and tools, OCTG, LinePipe, FRP Line Pipe, Artificial Lifting Equipment, Wellhead equipment, Valves, Pipe fittings, BOP, Downhole Tools etc. According to standards: API, ASTM, ASME, Ghost etc.
Our leading products: Casing & Tubing(API 5CT series, Tenaris Series), Valves(Gate Valve, Ball Valve, Check Valve, Globe Valve, Choke Valve; API 6A series, API 6D series, API 600 Series, and General Use Valves); BOP and BOP Spare parts; Drilling Tools etc.
LFM is also a professional supplier of WATER TREATMENT EQUIPMENT. We work together with the professional WATER TREATMENT EQUIPMENT manufacturer in China. The products we supply have been widely recognized by customers.
Our aim is "Use our professional services to make your business easier". Therefore, we devote to providing customers with integrated solutions and strive to become your one-stop procurement platform in China.
Q1: What's your packing?
A: Regular packing.
Q2: What's your delivery?
A:Normally, about 30-45 days.
Q3: What are the shipping methods?
A: Ocean shipment to the port near from you; Air shipment to the shipment near from your company; Door to door service by international express.
Q4:What about the payment options?
A: In general, we accept T/T.
Q5: When can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price,please call us or tell us in your email so that we will detail with your inquiry priority.
