YAN4232 4 axis CNC Gear Cutting Shaving Machine Gear Grinding Machine
1 Piece
$80,0001 Piece
$64,000Product information
High-quality YAN4232 4 axis CNC Gear Cutting Shaving Machine Gear Grinding Machine supplied by Dalian Viseno Precision Cnc Co., Ltd. Bulk wholesale pricing ranges from $64,000 to $80,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Production Capacity:
100/Year
Voltage:
220/380/440/460V...3pH
Package Size:
246.00cm * 210.00cm * 275.00cm
Specification:
320mmx6mm(ODx Modules)
Package Gross Weight:
4700.000kg
HS Code:
8461401900
Training At Factory:
Available for Free
Commissioning At Uer'S Site:
Available, But Optional
Specifications
Production Capacity:
100/Year
Voltage:
220/380/440/460V...3pH
Package Size:
246.00cm * 210.00cm * 275.00cm
Specification:
320mmx6mm(ODx Modules)
Package Gross Weight:
4700.000kg
HS Code:
8461401900
Training At Factory:
Available for Free
Commissioning At Uer'S Site:
Available, But Optional
Certification:
CE, ISO9001
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Port Of Loading:
Dalian
Trade Term:
FOB, CIF, CFR, EXW
Machine Color:
Factory Standard or Customized
CNC System:
Fanuc 0i F
Type:
Gear Shaving
Trademark:
JINGLING
Transport Package:
Non-Fumigation Wooden Case
Payment Methods:
Support payments in USD
Payment Term:
T/T, LC
Model NO.:
YAN4232CNC
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2022-04-25
Annual Revenue Amount:
Not specified
Numbers Of Employees:
37
Preferred Payment Term:
T/T, LC
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Dalian
Certificates:
Our certificates
Product descriptions from the supplier

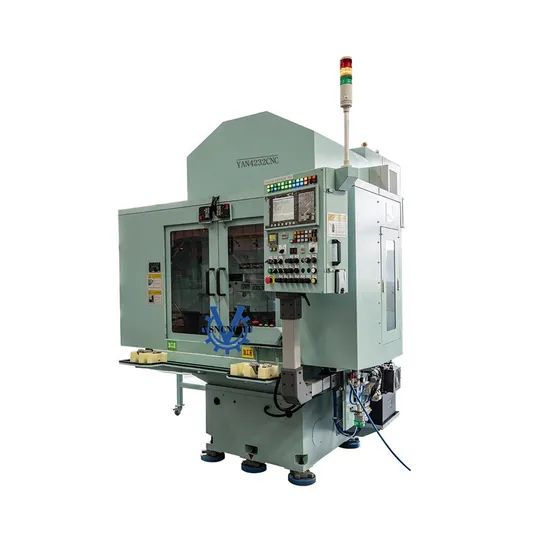

YAN4232 4-axis CNC Gear Shaving Machine
| Maker Type | State-owned Maker |
| Machine Type | 4-axis & CNC Radial Shaving of gears |
| Highlight | Accuracy can reach up to Class 6. Surface roughness Ra0.8 |
| Max. work piece diameter | 320mm |
| Max. modules | 6mm |
| CNC System | Fanuc Oi F |
| Axes under CNC control | 4 |
| Z-axis: radial feeding C-axis: cutter shaving motion B-axis: oscillating of arc slide of tool post A-axis: swivel of tool post |
|
| Main Usage | Fine shaving of cylindrical spur gears, helical gears, stem gears. Plus small tapered gears and drum gears |
| Machine Color | Factory Standard or Customized |
| Technical Item | YAN4232CNC | Unit |
| Gear shaving method | Radial shaving | |
| Maximum outside diameter of workpiece | 320 | mm |
| Maximum modulus of workpiece | 6 | mm |
| Maximum tooth width | 40 | mm |
| Maximum outside diameter of installed shaving cutter | 250 | mm |
| Maximum width of cutter | 50 | mm |
| Diameter of bore for cutter | 63.5 | mm |
| Swivel angle of tool post | -30~90 | ° |
| Maximum distance between centers | 500 | mm |
| Distance between workpiece center and machine center | 110~300 | mm |
| Oscillating angle of B-axis angle | ±3 | ° |
| Maximum stroke of Z-axis radial feeding | 185 | mm |
| Maximum speed of Z-axis radial feeding | 480 | mm/min |
| Feed rate of Z-axis radial feeding | 0.2~4 | mm/min |
| Spindle speed (stepless) | 50~400 | rpm |
| Power of C-axis main motor | 5.5 | kW |
| A-axis servo motor | 4 | Nm |
| B-axis servo motor | 4 | Nm |
| Z-axis servo motor | 8 | Nm |
| Hydraulic motor | 1.1 | kW |
| Overall dimensions of machine | 2260x2000x2600 | mm |
| Machine weight (approx.) | 4500 | kg |
The YAN4232CNC CNC gear shaver is ideal for final processing of straight, helical, and shaft gears, making it perfect for large-scale operations in the auto and two-wheeler sectors. It achieves a precision level of GB/T10095-2008 grade 6 and delivers a surface finish better than Ra0.8.
This machine can be used for radial gear shaving and for the shaving of drum gears and small taper gears.
The machine is installed with standard FANUC 0i-F CNC system and its main electric parts adopt renowned brand products both home and abroad.
The machine has following features:
This machine can be used for radial gear shaving and for the shaving of drum gears and small taper gears.
The machine is installed with standard FANUC 0i-F CNC system and its main electric parts adopt renowned brand products both home and abroad.
The machine has following features:
1. The bed and column feature a unified structure to improve structural rigidity. The toolpost supports a 90° turn, enabling the operator to mount or remove the shaving cutter from the front face for simpler cutter replacement.
2. Precision-engineered rolling bearings with high rigidity are used in the cutter spindle to ensure excellent stiffness, superior rotational accuracy, and simplified assembly and removal of gear shaving cutters.
3. Radial feed motion is powered by large-diameter, high-precision, high-stiffness, high-preload ball screws. The screw's mounting axis is precisely positioned at the cutter's cutting edge to enhance feeding precision and overall machine rigidity.
4. The circular guideways of the toolpost slide are powered by a servo motor (B-axis), enabling precise radial cutting of tapered gears and accurate taper deviation correction.
5. A domestically created gear finishing control system, protected by exclusive intellectual property, is utilized. By entering the relevant cutter, workpiece, machining settings, and tooth alignment error correction directly into the intuitive and user-friendly interface, the system automatically generates the required machining program in the background, enabling parametric programming.
6. The machine is installed with thermal balance compensator to ensure the dimensional consistence of gear shaving cross-rod distance.
7. The system supports a manipulator (either trussed or articulated), compatible with left and right motorized tailstocks and an auto-load/unload mechanism to enhance automation, boost output efficiency, and reduce operator physical effort.
