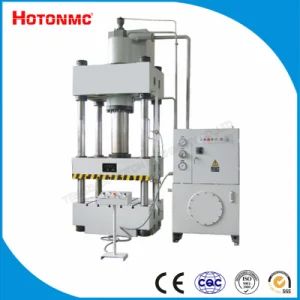

YL32-63100160200250 Four-Column Hydraulic Press 630kn 190e120r 5.5KW 2800kg HOTON ISO9001 CE
Piece
Negotiable
Product information
High-quality YL32-63100160200250 Four-Column Hydraulic Press 630kn 190e120r 5.5KW 2800kg HOTON ISO9001 CE supplied by Tengzhou Hoton Machinery Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Return Force:
120
Ejecting Force:
190
Production Capacity:
20 PCS/Month
Weight:
2800kgs
Motor:
5.5KW
Capacity:
630kn
HS Code:
8462999000
Specification:
CE SGS ISO9001
Specifications
Return Force:
120
Ejecting Force:
190
Production Capacity:
20 PCS/Month
Weight:
2800kgs
Motor:
5.5KW
Capacity:
630kn
HS Code:
8462999000
Specification:
CE SGS ISO9001
Trade Term:
CIF, CFR, FOB, EXW
Origin:
China
Customized:
Customized
Type:
Four-Column Hydraulic Press
Trademark:
HOTON
Certification:
ISO9001, CE
Payment Term:
LC, T/T, PayPal, Western Union, D/P
Condition:
New
Transport Package:
Plywood Case
Port Of Loading:
Qingdao Port
Model NO.:
YL32-63\tYL32-100\tYL32-160\tYL32-200\tYL32-250
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2016-07-06
Annual Revenue Amount:
Not specified
Numbers Of Employees:
8
Preferred Payment Term:
LC, T/T, PayPal, Western Union, D/P
Preferred Trade Term:
CIF, CFR, FOB, EXW
Port Of Loading:
Qingdao Port
Certificates:
CE CERTICATION, ISO CERTIFICATION, QUALITY CERTIFICATION
Product descriptions from the supplier
YL32 SERIES FOUR-COLUMN HYDRAULIC PRESS FEATURES:
YL32 series four-column hydraulic press
Computer optimized design, 3-beam, 4-column structure, simple but with high performance
price ratio.
Cartridge valve integral unit equipped for hydraulic control system, reliable, durable and less hydraulic shock, with shorter connection pipeline and fewer releases points.
Independent electrical control, reliable, audio-visual and convenient for maintenance.
Centralized button control system,with adjustment,hand and semi-auto operation modes at operator's choice.
Fixed stroke forming process or fixed pressure forming process selected through control panel, with pressure hold and time delay functions.
The operating force, no-load traveling and, low-speed movement and travel range can be adjusted subject to technological requirements.
SPECIFICATIONS:
| MODEL | YL32-63 | YL32-100 | YL32-160 | YL32-200 | YL32-250 | YL32-250A | YL32-315 | ||
| Capacity | kN | 630 | 1000 | 1600 | 2000 | 2500 | 2500 | 3150 | |
| Ejecting Force | kN | 190 | 190 | 190 | 280 | 280 | 280 | 630 | |
| Return Force | kN | 120 | 165 | 210 | 240 | 400 | 400 | 600 | |
| Slide Stroke | mm | 500 | 500 | 560 | 710 | 710 | 710 | 800 | |
| Ejecting Force | mm | 200 | 200 | 200 | 200 | 200 | 200 | 300 | |
| Max. Shut Height | mm | 800 | 800 | 900 | 1120 | 1120 | 1120 | 1250 | |
| Slide Speed | Idle Stroke | mm/s | 100 | 120 | 100 | 120 | 130 | 160 | 100 |
| Pressing | mm/s | 8-16 | 7-15 | 4-10 | 5-12 | 4-10 | 4-10 | 5-12 | |
| Return | mm/s | 85 | 90 | 70 | 95 | 60 | 60 | 60 | |
| Ejecting Speed | Eject | mm/s | 55 | 75 | 75 | 80 | 80 | 80 | 55 |
| Return | mm/s | 105 | 140 | 140 | 145 | 145 | 145 | 145 | |
| Bolster | LR | mm | 580 | 690 | 800 | 1000 | 1120 | 1800 | 1260 |
| FB | mm | 500 | 630 | 800 | 940 | 1000 | 1200 | 1160 | |
| Outline Size | LR | mm | 2500 | 2500 | 2550 | 2650 | 2800 | 3600 | 3500 |
| FB | mm | 1430 | 1430 | 1430 | 1350 | 1400 | 1400 | 1500 | |
| Above Floor | mm | 3220 | 3250 | 3210 | 3800 | 3950 | 4290 | 4600 | |
| Main Motor Power | kW | 5.5 | 7.5 | 11 | 15 | 15 | 15 | 22 | |
| Weight | kg | 2800 | 3700 | 6500 | 9000 | 10300 | 16000 | 14000 | |
| Contact Us: |
| Miss Wynn Sales Manager TENGZHOU HOTON MACHINERY CO.,LTD Tel:0086 632 5633796 MP:0086 16678336698 hotonmachinery.en.made-in-china.com |
| Company Profile: |
| Tengzhou Hoton Machinery Co., LTD was founded in 2006 and specializes in machinery production within China. The company employs 480 staff members, including 60 technical engineers. With a facility spanning 46,000 square meters and total assets amounting to 30 million RMB, it maintains a comprehensive inventory of 350 machines and excels in both product development and manufacturing. It obtained an export quality certification in 2007 and was officially granted export privileges by the State Foreign Economic Trade Committee in 2008. |
| Core product range: CNC systems under the "Hoton" brand, including lathes, milling units, drilling equipment, grinding tools, saws, sheet metal processing units, metal shaping systems, and various machine components. Several items are protected by national patents. The company offers fourteen product lines with more than eighty distinct models. Annual production capacity reaches 100,000 units. Every item is engineered for precision, delivering superior performance, cost-effectiveness, and outstanding durability, backed by a robust quality assurance process. Products have met ISO9001 and CE standards since 2009. Exported to over forty countries across five continents, this global reach has significantly boosted both international and domestic demand, driving rapid market adoption. |
| Tengzhou Hoton Machinery Co.,Ltd. is willing to make common progress and developments with all the customers. Quality first,Constantly perfecting skills. |
