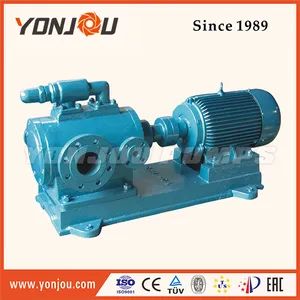

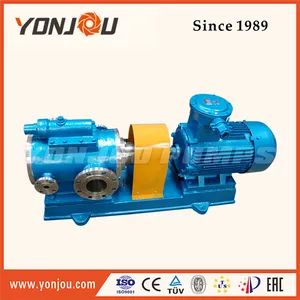

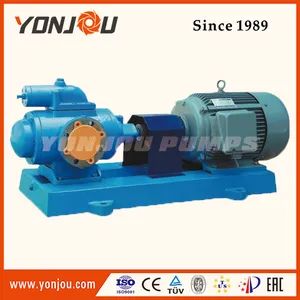

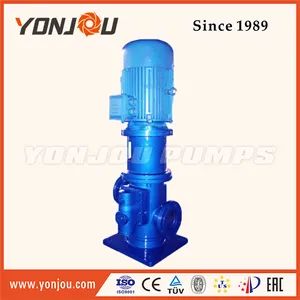

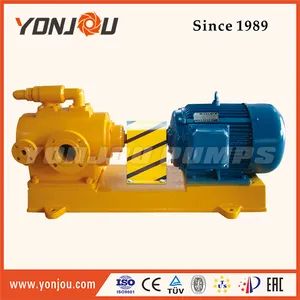

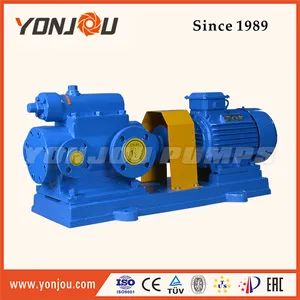

Yonjou Positive Displacement Pump, Triplex Screw Bitumen Pump
Set
Negotiable
Product information
High-quality Yonjou Positive Displacement Pump, Triplex Screw Bitumen Pump supplied by Zhejiang Yonjou Technology Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
MOQ:
1 Set
Production Capacity:
1000sets/Year
HS Code:
8413110000
Application:
Bitumen
Specification:
CE
Certification:
CE/ISO2001:1998
Origin:
China
Place Of Origin:
China
Specifications
MOQ:
1 Set
Production Capacity:
1000sets/Year
HS Code:
8413110000
Application:
Bitumen
Specification:
CE
Certification:
CE/ISO2001:1998
Origin:
China
Place Of Origin:
China
Trade Term:
FOB, EXW, CIF, DDP, CIP
Usage:
High Viscosity Goods
Pump Shaft Position:
Horizontal
Payment Term:
LC, T/T, D/P, PayPal
Model NO.:
LQ3G
Pressure:
Low Pressure
Model No:
Lq3g
Port Of Loading:
NINGBO, SHANGHAI
Theory:
Screw Pump
Standard Or Nonstandard:
Standard
Packing Standard:
Standard Export Plywood Case
Transport Package:
Standard Export Plywood Case
Performance:
Wearable
Trademark:
YonJou
Brand Name:
Yonjou
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2001-02-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal
Preferred Trade Term:
FOB, EXW, CIF, DDP, CIP
Port Of Loading:
NINGBO, SHANGHAI
Certificates:
AAA Enterprise Credit, After-Sales Services of Commodity, CCCF, CE, EAC, FDA, High-Tec Enterprise, ISO14001, ISO45001, ISO9001, National Standard GB/T 13930-2024
Product descriptions from the supplier
Summarize:
1. LQ3G Heat Insulation Double Jacket Three Screw Pump /Bare Pump or Head Pump/Three Screw Bitumen Asphalt Pump (Oil Heated Bitumen Pump) with unique design of double jacket casing, can transmit heavy oil without particle, non-corrosive oil
2. The viscosity can be 3.0~760 mm2/s (1.2-100 °E). High viscosity medium can be pumped after overheating.
3. It can be used as rubricating pump, hydraulic pump, boost pump, petrol pump and dispensing pump.
4. Pump fuel oil, rubricate oil, hydraulic oil, crude oil, heavy oil, asphalt, bitumen, rubber, resin such various types of lubrication oil-type liquid in industries of petroleum, steel making, chemical fiber, food, metallurgy, road construction, electrify, mining, shipbuilding, glass, rubber.
Product details:
| Working Principle: | Three Screw (One main, two driven screws) |
| Main applications: | Heavy Oil, bitumen, viscous fluids |
| Driver: | Electric motor, diesel motor. |
| Power Specs: | 220V, 240V, 380V, 400V, 415V, 440V, 460V, 50hz/60hz |
| Max. permissible fluid temperature: | 250°C |
| Type of connection: | Flange, Thread, Quick Coupled. |
| Installation position: | Horizontal |
| Casing/Inner parts material: | Cast iron, Stainless Steel/Cast iron, Stainless steel, Bronze |
| Shaft seal type: | Mechanical seal |
| Maximum viscosity: | 1000CST |
| Maximum drive rating: | 132 kW (177hp) |
| Maximum caliber: | 6inch (150mm) |
| Maximum discharge-side pressure: | 2.5mpa (25bar) |
| Flow rate range: | 0.6-120 m³/h (10-2010l/m) |
Performance Data:
| Model | Capacity | Pressure | Speed | KW | Suction head | ||
| m3/h | L/min | MPa | r/min | Shaft power | motor power | m | |
| 45× 3-36 | 2.8 | 46 | 0.6 | 950 | 0.8 | 1.1 | 5 |
| 4.2 | 70 | 0.6 | 1450 | 1 | 1.5 | 5 | |
| 45× 2-46 | 4.2 | 70 | 0.6 | 950 | 1 | 1.5 | 5 |
| 14 | 233 | 1 | 1450 | 4.3 | 5.5 | 5 | |
| 62× 2-43 | 8.58 | 143.4 | 0.6 | 950 | 2.06 | 3 | 5 |
| 13.1 | 218.9 | 0.6 | 1450 | 3.15 | 4 | ||
| 62× 2-46 | 9.8 | 163 | 0.8 | 950 | 2.9 | 4 | 5 |
| 25 | 417 | 1 | 1450 | 8.5 | 11 | ||
| 80× 2-45 | 23.1 | 386.3 | 1 | 950 | 8.6 | 11 | 5 |
| 35.7 | 594.5 | 1 | 1450 | 13.1 | 15 | ||
| 80× 2-51 | 26.9 | 448.3 | 1 | 950 | 10.5 | 15 | 5 |
| 41 | 684.1 | 1 | 1450 | 16 | 18.5 | ||
| 90× 2-36 | 24.2 | 403.5 | 0.6 | 950 | 5.52 | 7.5 | 5.5 |
| 36.1 | 602.4 | 1 | 1450 | 13 | 15 | ||
| 90× 2-36 | 27.5 | 457.6 | 1 | 950 | 10.2 | 15 | 5.5 |
| 41.9 | 698.5 | 1 | 1450 | 15.5 | 18.5 | ||
| 90× 2-46 | 34 | 566.7 | 0.8 | 950 | 9.7 | 11 | 5.5 |
| 51.4 | 856.1 | 1 | 1450 | 18.6 | 22 | ||
| 100× 2-46 | 72.7 | 1212 | 0.6 | 950 | 16.5 | 18.5 | 5.5 |
| 71.2 | 1187 | 1 | 1450 | 25.5 | 30 | ||
| 100× 2-51 | 55.7 | 928.6 | 1 | 950 | 20.8 | 30 | 5.5 |
| 85 | 1417.2 | 1 | 1450 | 31.8 | 37 | ||
| 110× 2-46 | 58.9 | 951.7 | 1 | 950 | 21.8 | 30 | 5.5 |
| 94.6 | 1577 | 1 | 1450 | 33.9 | 45 | ||
| 120× 2-42 | 65.4 | 1090 | 1 | 950 | 24.5 | 30 | 5.5 |
| 105 | 1760 | 1 | 1450 | 38.2 | 45 | ||
| 120× 2-46 | 79.6 | 1327 | 0.6 | 950 | 17.8 | 22 | 5.5 |
| 123 | 2059 | 1 | 1450 | 44.1 | 55 | ||
| 150× 2-46 | 154 | 2582 | 1 | 950 | 54.5 | 75 |
5.5 |
|
236.5 |
3942.2 | 1 | 1450 | 82.2 | 90 | ||
Company information:
Zhejiang Yonjou Technology Co., Ltd is one of the leading manufacturers and exporters in the field of industry pumps with manufacturing facilities in mainland China. We are specialized in oil pump, diaphragm pump, diesel engine pump, centrifugal pump, screw pump, chemical pump etc.
