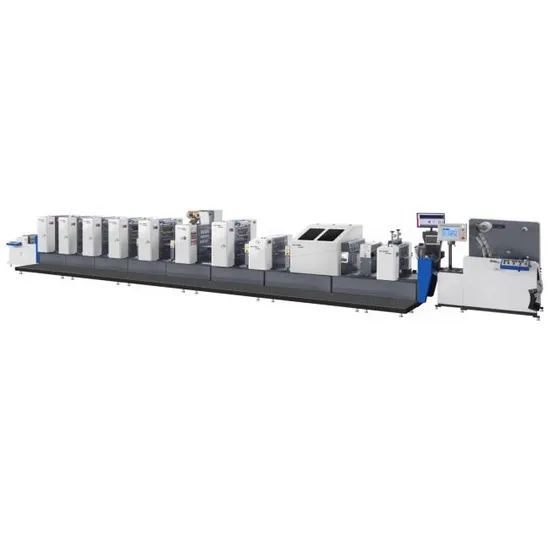

Zx-320 Sticker Offset Printing Machine Offset Machine
1 Set
$500,0001 Set
$350,000Product information
High-quality Zx-320 Sticker Offset Printing Machine Offset Machine supplied by Zhejiang Weigang Technology Co., Ltd.. Bulk wholesale pricing ranges from $350,000 to $500,000 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Warranty Of Core Components:
1 Year
Production Capacity:
20 Set/Sets Per Quarter
Voltage:
380V
Dimensions(L*W*H):
8850 X 1600 X 1850mm
Weight:
9500kgs
Automatic Grade:
Automatic
Key Selling Points:
Automatic
Origin:
China
Specifications
Warranty Of Core Components:
1 Year
Production Capacity:
20 Set/Sets Per Quarter
Voltage:
380V
Dimensions(L*W*H):
8850 X 1600 X 1850mm
Weight:
9500kgs
Automatic Grade:
Automatic
Key Selling Points:
Automatic
Origin:
China
Trade Term:
FOB, CIF, CFR
Marketing Type:
Hot Product
Certification:
ISO, CE, TUV
Payment Term:
LC, T/T
Color & Page:
Multicolor
Condition:
New
Port Of Loading:
Ningbo Port, Shanghai Port
Showroom Location:
None
Local Service Location:
None
Plate Type:
Offset Printer
Type:
Offset Printer
Transport Package:
Packed by Standard Export Wooden Case.
Usage:
Paper Printer, Label Printer
Applicable Industries:
Printing
Machinery Test Report:
Provided
Video Outgoing Inspection:
Provided
Trademark:
WEIGANG
Model NO.:
ZX-320
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Year Established:
2007-04-24
Annual Revenue Amount:
Not specified
Numbers Of Employees:
409
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, CFR
Port Of Loading:
Ningbo Port, Shanghai Port
Certificates:
ISO14001, ISO45001:2018, ISO9001:2015
Product descriptions from the supplier
SONA2024 2.2.1
ZX-320/450
Intermittent Label Offset Printing Machine
Main Features
ZX-320 machine adopts latest servo control system which can ensure the material nip steady and accuracy.It can free from the printing roller change.The operation of this machine is faster,convenient and simple.PS plate intermittent printing hits the high level label demands from short run to long run.It's the best choice for printing highest quality labels with lowest production cost.
Main Technical Parameters
Model | ZX-320 | ZX-450 |
Printing speed | 50-180 rpm | 50-150 rpm |
Printing color | 4-10 colors | 4-10 colors |
Max.printing length | 350mm | 380mm |
Max.web width | 320mm | 470mm |
Max.printing width | 300mm | 450mm |
Max.unwinding diameter | 700mm | 700mm |
Max.rewinding diameter | 700mm | 700mm |
Power supply | 3 phase 380V | 3 phase 380V |
Total power | 33.6kw(without UV power) | 40kw(without UV power) |
Dimensions(LxWxH) | 10550*1600*1800mm(6 colors) | 11150*1700*1800mm(6 colors) |
Main machine weight | about 9.5t | about 11.5t |
Detailed Photos

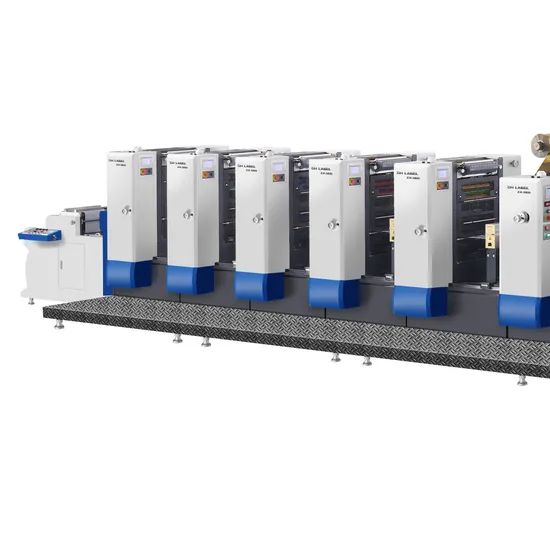

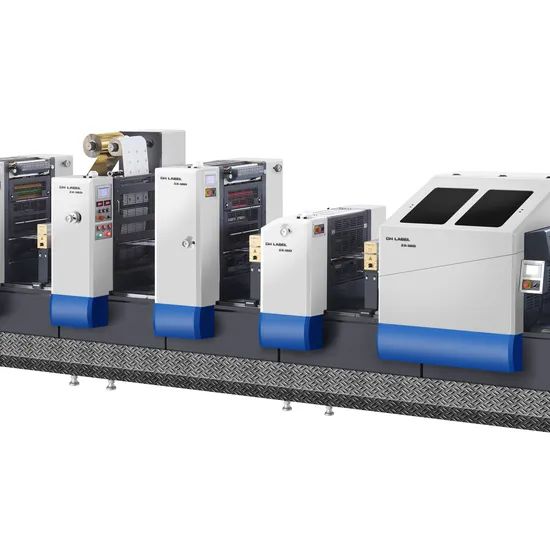

Heavy Offset Printing Unit
Shaftless Driving System
Printing unit: adopting high quality and heavy offset printing unit. Assembled with 19pieces of ink rollers,4pcs of Form Rollers and 4pieces of Water rollers (alchohol dampening system), has nice inking system which can largely avoid gear mark and ghost image. The fine and accurate printing would never be reached by flexo/letterpress machine.
Every printing unit run by an independent servo motor, 15 sets of servo motors in total for whole machine (6color) to ensure the exact color registration during high speed operation.The vertical and horizontal motions of every printing unit are all controlled by independent motor (ease the laboring and reduce the waste).
Video Inspecting System

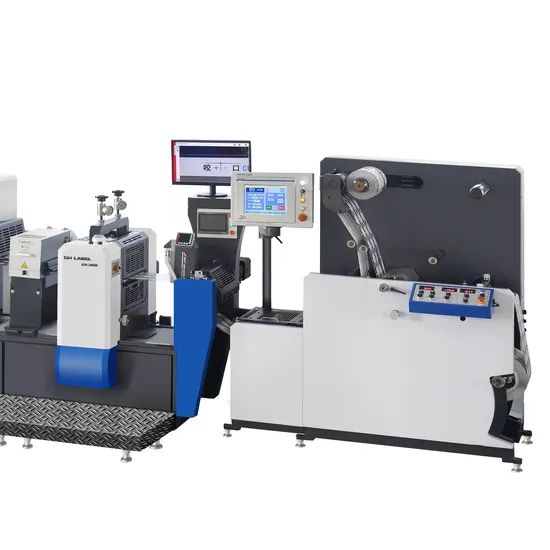

Touch Screen Control System
By video still system, the machine can regulate vertical & horizontal registering without stopping, it improves the printing quality and increases the producing capacity.
Touch LCD screen, faster CPU, 15inch operating display, independent touch screen in each printing unit, powerful human-computer dialogue system,multi-guide inspecting display interface,instant alarm signal, makes operation much easier and more efficient.
Available Options:
Cold Foiling Unit
Screen Printing Unit
Rotary Die Cutting Station
Inline cold foiling, has the characteristic of fast speed, high efficiency, increase the decorative effect for color and graphic.
Inline flat screen printing,has characteristic of thick ink layer,strong relief perception.
One big magnetic cylinder used in this machine, largely saves the tooling cost.Different die-cutting job can be achieved by changing the flexible die.
Flexo UV Varnishing Unit
Delam/Relam Unit
Flexo UV Varnishing Unit(both solid and spot)makes the printing more shining and attractive.
Delaminate the adhesive label,then printing on glue surface and re-laminating.
Applications
Wine Label
Health & Beauty Care Label
Lubricant Label
Food Label
Security Label
Electronic Label
Company Profile
Zhejiang Weigang Technology Co.,Ltd. located in the east part of China(500km away from Shanghai), is a national high-tech enterprise which involves R&D, production, marketing and service. We are specialized in manufacturing label printing machines and converting machines.
We have rich manufacturing experiences and technical strength. We are competent in developing and researching label offset printing machine,flexo printing machine, rotary/intermittent/flat bed die-cutting machine,etc. They are well accepted all over China and exported to more than 100 countries/regions such as Germany, Italy, Russia, Japan, USA, UK and soon. Weigang has passed the ISO9001: 2015 international management system certification and CE certification.For years, our quality products have won us good reputation in the global market and also create benefits for the society.
Packing & Delivery
After Sales Service
FAQ
Q:Are you factory or trading company?
A:We are a factory in this field nearly 30 years (named Zhejiang Weigang Technology Co,Ltd.)
Q:How does your factory do regarding quality control?
A:Quality is priority. we always attach great importance to quality controlling from the beginning.
Q:Why choose Weigang Machinery?
A:We are one of leader in this field(in china). Our quality products and service have enabled us to expand our market from china to more than 100 countries.
A:We are a factory in this field nearly 30 years (named Zhejiang Weigang Technology Co,Ltd.)
Q:How does your factory do regarding quality control?
A:Quality is priority. we always attach great importance to quality controlling from the beginning.
Q:Why choose Weigang Machinery?
A:We are one of leader in this field(in china). Our quality products and service have enabled us to expand our market from china to more than 100 countries.
