Zywl High-Efficiency Crawler Hydraulic Directional Drilling Rig for Coal Mines
Piece
Negotiable
Product information
High-quality Zywl High-Efficiency Crawler Hydraulic Directional Drilling Rig for Coal Mines supplied by Hebei Fccs Mine Machinery Manufacturing Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Production Capacity:
1000 Pieces/Year
Drill Hole Depth:
1500~2000
Transport Package:
4550×1100×1900
Specification:
4550×1100×1900
Drill Hole Diameter:
70~89
HS Code:
8429510000
Motor:
AC Motor
Trade Term:
CIF, FOB, CFR, EXW
Specifications
Production Capacity:
1000 Pieces/Year
Drill Hole Depth:
1500~2000
Transport Package:
4550×1100×1900
Specification:
4550×1100×1900
Drill Hole Diameter:
70~89
HS Code:
8429510000
Motor:
AC Motor
Trade Term:
CIF, FOB, CFR, EXW
Origin:
China
Bit Type:
Diamond Bit
Trademark:
FCCS
Certification:
ISO 9001:2000, ISO 9001:2008
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Condition:
New
Drilling Way:
Rotary
Port Of Loading:
Tianjin Port
Model NO.:
ZYWL
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2012-06-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
96
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
CIF, FOB, CFR, EXW
Port Of Loading:
Tianjin Port
Certificates:
ISO14001, ISO45001:2018, ISO9001:2015
Product descriptions from the supplier

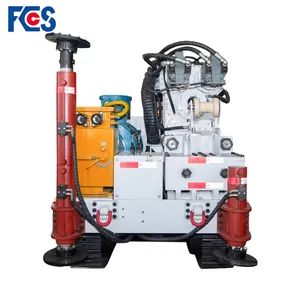

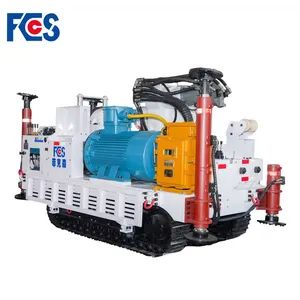

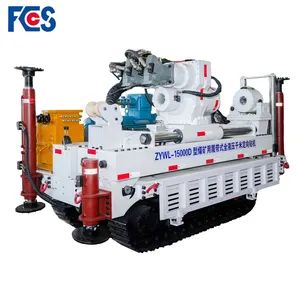

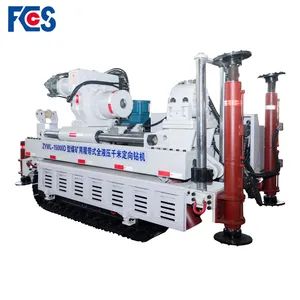

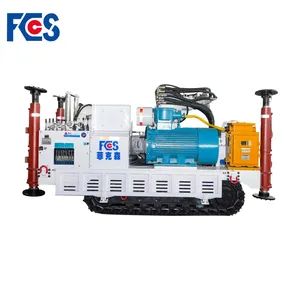

Crawler Hydraulic Directional Drilling Rig for Coal Mines
The ZYWL type Crawler hydraulic directional drilling rig for coal mines is a device that uses an electric motor to drive a hydraulic pump, a hydraulic motor to drive the tracks, and a hydraulic motor to drive the drill bit, for drilling water and gas holes in soft rock or coal seams. It consists of a main hydraulic system, tracked walking mechanism, working mechanism, frame, etc.
The ZYWL type Crawler hydraulic directional drilling rig for coal mines is a new generation of tracked drilling equipment for water exploration, gas exploration, fault exploration, roof caving, and water injection. It is mainly used for dense drilling in soft rock or coal seams where anti-outburst measures are required at the working face, but it is also suitable for other applications. This equipment features a compact structure, flexible operation, good mobility, full-face operation, good safety performance, and multi-purpose functionality. In addition to water and gas exploration, it can also drill into complex strata. It can be equipped with ordinary reaming drill bits and other drilling tools for rotary drilling.
This drilling rig has the following advantages:
1. Safe operation, significantly reducing the physical labor intensity of workers. 1. Suitable for construction of horizontal and inclined tunnels with various cross-sections;
2. Compact structure, fully hydraulic control, convenient and flexible operation, crawler-mounted movement, easy relocation, good mobility, saving time and labor;
3. The drilling rig's power head has high torque and long stroke, resulting in high drilling efficiency and significantly improving work efficiency;
4. The hydraulic system is equipped with a rapid propulsion function, saving more than twice the time for loading and unloading drill rods. It also includes components for loading and unloading drill rods, reducing the labor intensity of operators.
5. Utilizing a variable displacement system, the no-load speed is high, and the speed decreases and the torque gradually increases with load changes, making drilling more efficient.
Technical Specifications
(Custom configurations available upon request.)
Items | Unit | ZYWL-18000D | ZYWL-15000D | ZYWL-13500D | ZYWL-12000D | ZYWL-10000D | ZYWL-9000D | |
Complete Machine | Rated torque | N·m | 5000~18000 | 4500~15000 | 4000~13500 | 4000~12000 | 3500~10000 | 3000~9000 |
Rated speed | r/min | 100~35 | 135~45 | 150~50 | 165~55 | 200~70 | 240~80 | |
Feed force | KN | 210 | ||||||
Pulling force | KN | 280 | ||||||
Feed stroke | mm | 1200 | ||||||
Drilling inclination | ° | 0~20° | ||||||
Drill rod diameter | mm | 73~127 | ||||||
Anchoring force | KN | 180 | ||||||
Dimensions | mm | 4000*1600*2100(±50) | ||||||
Travel mechanism | Travel speed | m/min | 25 | |||||
Gradeability | ° | ±16 | ||||||
Pump station | Rated power | KW | 132 | 110 | ||||
Items | Unit | ZYWL-8000D | ZYWL-7300D | ZYWL-6500D | ZYWL-5600D | ZYWL-4500D | ZYWL-3600D | |
Complete Machine | Rated torque | N·m | 5000~18000 | 4500~15000 | 4000~13500 | 4000~12000 | 3500~10000 | 3000~9000 |
Rated speed | r/min | 130~45 | 150~50 | 160~60 | 180~70 | 190~765 | 220~80 | |
Thrust force | KN | 110 | ||||||
Pulling force | KN | 160 | ||||||
Thrust stroke | mm | 600±20 | ||||||
Drilling inclination | ° | ±90° | ||||||
Drill rod diameter | mm | 65~96 | ||||||
Anchoring force | KN | 100*2 | ||||||
Water supply pressure | Mpa | 6 | ||||||
Minimum operating height | mm | 1400 | ||||||
Maximum operating height | mm | 1800 | ||||||
Dimensions | mm | 4200*1100*2000(±50) | ||||||
Machine weight | kg | 8000 | 7500 | 7500 | 7500 | 6200 | 6200 | |
Travel mechanism | Travel speed | m/min | 27 | |||||
Gradeability | ° | ±16 | ||||||
Pump station | Rated power | KW | 90 | 75 | 75 | 75 | 55 | 55 |
Drawings & Dimensions
Detailed CAD drawings and dimensional diagrams are available for download here or upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.
After Sales Service
Standard Warranty: 12 months or 2,000 operating hours (whichever comes first).
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
Company Profile
Hebei FCCS Mine Machinery Manufacturing Co., Ltd.
Hebei Fccs Mine Machinery Manufacturing Co., Ltd is a professional manufacturer of coal mining machinery, committed to delivering advanced equipment and integrated solutions for underground operations. With solid industry expertise and continuous innovation, we serve mining enterprises with products that combine safety, efficiency, and reliability.
What We Do
Our core product lines include:
· Hydraulic and pneumatic drilling rigs – designed for gas drainage, water exploration, geological investigation, and roof control.
· Crawler-type transportation and material handling vehicles – ensuring flexible, safe, and efficient movement in underground environments.
· Auxiliary equipment – supporting tunneling, excavation, and a wide range of underground construction tasks.
Why Choose Us
With modern production facilities and an experienced engineering team, we design and manufacture equipment built to withstand demanding conditions. Every product is developed in line with international quality standards, ensuring long service life and reliable performance.
Beyond equipment supply, Fccs offers comprehensive after-sales support, including technical training, maintenance guidance, and on-site service. Our goal is to help our customers improve productivity, enhance workplace safety, and reduce operational costs.
At Fccs, we don't just build machines—we deliver confidence and value to every mine we serve.
What We Do
Our core product lines include:
· Hydraulic and pneumatic drilling rigs – designed for gas drainage, water exploration, geological investigation, and roof control.
· Crawler-type transportation and material handling vehicles – ensuring flexible, safe, and efficient movement in underground environments.
· Auxiliary equipment – supporting tunneling, excavation, and a wide range of underground construction tasks.
Why Choose Us
With modern production facilities and an experienced engineering team, we design and manufacture equipment built to withstand demanding conditions. Every product is developed in line with international quality standards, ensuring long service life and reliable performance.
Beyond equipment supply, Fccs offers comprehensive after-sales support, including technical training, maintenance guidance, and on-site service. Our goal is to help our customers improve productivity, enhance workplace safety, and reduce operational costs.
At Fccs, we don't just build machines—we deliver confidence and value to every mine we serve.
Why Choose Us?
Other Products
OEM/ODM capabilities
Competitive pricing & bulk discounts
Fast shipping & customs clearance support
Turnkey project solutions
Competitive pricing & bulk discounts
Fast shipping & customs clearance support
Turnkey project solutions
Anchor drilling rig series
Pillar drilling rig series
Crawler Drilling Rig Series
Crawler transporter series
Pillar drilling rig series
Crawler Drilling Rig Series
Crawler transporter series
FAQ
Q: What’s the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 30–45 days.
A: Standard models ship in 15–30 days; customized units require 30–45 days.
Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions.
A: Yes, we have partnered service centers in key regions.
Q: Can I request a customized bucket size?
A: Absolutely! We offer tailored attachments.
A: Absolutely! We offer tailored attachments.
Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
A: Contact us via email/phone for a quote, then confirm with a PO.
