Aluminum Windows Door Profile Arc Circle Making Bending Machine
Piece
Negotiable
Product information
High-quality Aluminum Windows Door Profile Arc Circle Making Bending Machine supplied by Jinan Smatech Machinery Enterprise Co.,Ltd. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Roller Rotational Speed:
1-15r/Min
Max Bending Profile Section:
120*150mm
Dimension(L*W*H):
1200*1100*1400mm
Package Size:
1500.00cm * 1150.00cm * 1580.00cm
Specification:
1500x1600x1700
Production Capacity:
500/Year
Package Gross Weight:
800.000kg
Automation:
Automatic
Specifications
Roller Rotational Speed:
1-15r/Min
Max Bending Profile Section:
120*150mm
Dimension(L*W*H):
1200*1100*1400mm
Package Size:
1500.00cm * 1150.00cm * 1580.00cm
Specification:
1500x1600x1700
Production Capacity:
500/Year
Package Gross Weight:
800.000kg
Automation:
Automatic
Product Name:
CNC Aluminum Window Profile Bending M
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Roller:
Diameter 50mm
Trade Term:
FOB, CIF
Certification:
ISO 9001:2000, CE
Payment Term:
LC, T/T
Core Components:
Motor, PLC
Condition:
New
After Sales Service Provided:
Online Support, Video
Port Of Loading:
Qingdao Port
Type:
Roller-Bending Machine
Suitable For:
Rubber, Copper, Aluminum, Alloy, Stainless Steel
Trademark:
SMT
Model NO.:
SMT-WYJ-S
Payment Methods:
Support payments in USD
Transport Package:
Wooden Box
Color:
as Requirement
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Year Established:
2025
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF
Port Of Loading:
Qingdao Port
Certificates:
product
Product descriptions from the supplier
SONA2024 2.2.1
SERVO MOTORS CNC PROFILE BENDING MACHINE
Aluminum extrusions dominate the lighting sector thanks to their favorable traits such as low density, straightforward fabrication, and strong structural and transport characteristics. These are applied in design elements, replacement parts, and various other uses. In lighting production, extruded profiles must exhibit flawless, uniform surfaces, devoid of fissures or imperfections, with seamless, organic curves and precise dimensions. Defects like surface blemishes, fractures, and distortions frequently arise during bending operations. Such flaws can degrade the visual appeal of a lighting unit and, in extreme instances, compromise its functionality and durability. The precision achieved during bending directly influences the final aesthetic of the lighting design.
The firm features an advanced CNC bending system with adjustable curvature and high precision, enabling a fully automated, stable, and productive manufacturing process. This technology eliminates the accuracy issues found in conventional profile bending machines caused by material springback and dependence on operator skill and judgment, significantly reducing customer production and manpower expenses while enhancing the overall value of the final product.
You can share us your drawings pf profiles and we will recommend the suitable machine.
Machine model / Unit | LGW-CNC-13T | MGW-CNC-15T | LGW-CNC-25T | MGW-CNC-25T | MGW-CNC-30T | MGW-CNC-40T | HGW-CNC-70T |
Voltage (V) | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
Power (KW) | 4 | 8 | 8.5 | 11 | 13 | 21 | 50 |
Roller speed (r/min) | 1~15 | 1~15 | 1~15 | 1~15 | 1~15 | 1~15 | 1~15 |
Max. diameter of roller mold (mm) | 240 | 240 | 240 | 380 | 380 | 500 | 600 |
Roller diameter (mm) | 50 | 60 | 60 | 80 | 80 | 105 | 150 |
Fixed wheel center distance (mm) | 280-600 | 280-600 | 270-600 | 400-800 | 400-800 | 450-1200 | 680-1600 |
Y-axis rated thrust (T) | 13 (Max: 20) | 15 (Max: 20) | Max: 25 | 25 | 30 (Max: 38) | 40 (Max: 50) | 70 (Max: 100) |
Y-direction repeated positioning accuracy (mm) | ≤0.01 | ≤0.01 | ≤0.02 | ≤0.01 | ≤0.02 | ≤0.02 | ≤0.02 |
Rated torque in X direction (n.m) | 2500 | 4000 | 5000 | 6000 | 8000 | 11000 | 30000 |
Min. rolling radius (mm) | 100 | 100 | 100 | 150 | 150 | 150 | 200 |
Max. cross-sectional area for processing aluminum profiles (mm²) | 8000 | 10000 | 12000 | 16000 | 18000 | 24000 | 40000 |
Max. width for processing aluminum profiles (mm) | 120 | 150 | 200 | 200 | 220 | 250 | 300 |
Max. axial height for processing aluminum profiles (mm) | 200 | 200 | 250 | 250 | 250 | 300 | 500 |
Max. size for processing square steel pipes (mm) | 50×50×2 | 60×60×3 | 60×60×4 | 80×80×5 | 80×80×5 | 100×100×6 | 150×150×8 |
Max. size for processing circular steel pipes (mm) | Φ50×2 | Φ60×3 | Φ60×4 | Φ80×5 | Φ80×6 | Φ100×6 | Φ150×8 |
Weight (kg) | 900 | 900 | 1200 | 1800 | 1800 | 3300 | 13000 |
system | Servo motors | profiles testing | provided |
control system | PLC | warranty | 1Year |
material/metalprocessed | Iron, copper, aluminum, stainless steel,PVC | After-sales Service | Video technical support |
machinery test report | Provided | corecomponents | motor,PLC |
automation | Automatic | key selling points | Servo motor |
motorpower(kw) | 500 | weight(kg) | 1000 |
siderstroke(mm) | 8000 | throatdepth(mm) | 6000 |
place oforigin | Shandong,China | brand name | Smatech |
Product name | Aluminum Profile AutomaticBending Machine | Total power | 8.0KW |
Powersupply | 380V50Hz | Max bending | 120*200mm |
profilesection | |||
Bending achdiameter | Min.150mm | Roller diameter | 50mm |
Rollerrotationalspeed | 1-15r/min | Overalldimension | 1500*1200*1400mm |
Factory view
Advantages of Profile Bending Machines:
1. Most profiles are formed in one time.Equipped with CNC control system for easy operation and high precision.
Equipped with a servo motor for precise and consistent bending performance, the grating ruler's servo motor, paired with a reducer, enables smoother operation.
3. Capable of bending various shapes, including C-shape, U-shape, full circles, ovals, and multi-radius combinations.
4. User-friendly CNC software simplifies the bending process.
High Precision and Repeatability: CNC control ensures consistent quality across large batches.
Efficiency and Cost-Effectiveness: Single-step forming reduces processing time and labor costs.
Versatility: Suitable for various materials and profile types, adaptable to different project needs.
Automation and Ease of Use: PLC systems facilitate easy operation, monitoring, and adjustments.
Durability and Reliability: Robust design ensures long service life with minimal maintenance.
Enhanced Safety Features: Modern machines are equipped with safety mechanisms to protect operators.
Functions of Profile Bending Machines:
Equipment features:
Our profile bending system specializes in shaping materials including iron, copper, aluminum, stainless steel, and custom-formed profiles. It serves as a top choice for furniture producers needing precise bending solutions. Currently, these machines are widely used across sectors such as doors and windows, curtain walls, lighting, high-speed rail, ships, bridges, tunnels, and elevators, among others.
- The machine adopts CNC controller, which make the machine features easy.handling and high precision.
- Using CNC software, makes the bending operation very simple.
- Can bend many shapes such as C shape, U shape, S shape, the whole circle and spring.
- Capable of detecting material rebound data, eliminate rebound.
Equipment features:
Our profile bending system specializes in shaping materials including iron, copper, aluminum, stainless steel, and custom-formed profiles. It serves as a top choice for furniture producers needing precise bending solutions. Currently, these machines are widely used across sectors such as doors and windows, curtain walls, lighting, high-speed rail, ships, bridges, tunnels, and elevators, among others.
- The machine adopts CNC controller, which make the machine features easy.handling and high precision.
- Using CNC software, makes the bending operation very simple.
- Can bend many shapes such as C shape, U shape, S shape, the whole circle and spring.
- Capable of detecting material rebound data, eliminate rebound.
Specification
servo motor controls
High Precision Control
Our profile bending machine use servo motors,which provide accurate positioning and speed control, ensuring consistent bending angles and shapes.
Smooth Operation
Smooth Operation
The ability to start, stop, and change speed smoothly reduces mechanical stress and improves bending quality.
Energy Efficiency
Energy Efficiency
Power is consumed only when the motor is in motion, reducing energy costs compared to traditional motors.
Flexible Programming
Flexible Programming
Parameters such as bending radius, speed, and direction can be adjusted quickly through the control system.
Low Maintenance
Low Maintenance
Fewer mechanical components and less wear extend the lifespan of the motor and reduce maintenance requirements.
Quieter Operation
Quieter Operation
Lower noise levels improve the working environment for operators.
Machine tools

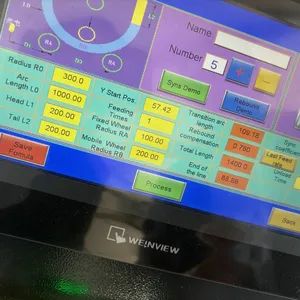

Simple human-machine interface
PARTS
Our in-house machinery and custom-made molds, high-grade belts, and other components guarantee a seamless and precise manufacturing workflow.
Through ongoing enhancements and refinements, the human-machine interaction now features a more intuitive and transparent design, streamlining user actions. Even personnel with minimal training can swiftly grasp and master the operational steps.
The company adheres to the ISO9001 (2008 version) quality management framework, enforcing rigorous checks across all stages of manufacturing, distribution, and post-purchase support, ensuring the outstanding performance of Sike equipment. This comprehensive approach secures the superior quality of our profile bending machine.
Bending machine service
Pre-Sales Service
Provide free project analysis
Provide free industry-related information
Provide free workshop/floor layout drawing
Provide free electrical circuit layout drawing
Sales Service
Provide free industry-related information
Provide free workshop/floor layout drawing
Provide free electrical circuit layout drawing
Sales Service
Free domestic transportation
Free installation and commissioning
Free operator training
After-Sales Service
Free installation and commissioning
Free operator training
After-Sales Service
18 months equipment warranty, lifetime maintenance, and regular maintenance service
24-hour on-site service for key areas
Provide long-term spare parts supply
24-hour technical support hotline for equipment operation
400 666 7806
24-hour on-site service for key areas
Provide long-term spare parts supply
24-hour technical support hotline for equipment operation
400 666 7806
company
Jinan Smatech Machinery Co., Ltd. is a top-tier producer focusing on premium door and window equipment such as double-head saws, machine centers, drilling and milling systems, crimping units, and bending systems, among other solutions. The business excels through the following core strengths:
Innovative Technology
Product Quality & Durability
Customization & Flexibilit
We leverage advanced engineering and precision manufacturing techniques to deliver reliable, efficient, and innovative equipment tailored to the door and window industry.
Our machinery is built with durability and accuracy in mind, ensuring long-term performance and customer satisfaction.
We offer customized solutions to meet specific client requirements, enabling seamless integration into various production lines.
GOOD NEWS
We now hold official approval to offer OEM manufacturing for a German brand. Our team is continuously advancing technological capabilities. We are confident in delivering superior service and product standards. Please feel free to reach out with your OEM requests.
Exhibitions
FAQ
Please enter the title here
1. Are you a trading company or a manufacturer?
We operate as both a producer and a trader, offering expert manufacturing capabilities across over four dedicated facilities. Delivering end-to-end solutions in production and commerce, we support our clients with full OEM and ODM customization options.
2. What is your minimum order quantity?
One set can be ordered.
3. How do you ensure quality control in your factory?
Every product undergoes strict quality control, including evaluation of incoming materials, continuous monitoring during production, and comprehensive final assessments. Shipment occurs exclusively after full compliance with all quality standards.
4. What delivery terms are available?
We offer EXW, FOB, and CNF terms. You may select the option that best meets your cost and logistics requirements.
5. What is your lead time?
Usually the lead time is 10-15days,if we have machine you want in stock,we can dispatch in a week.customized products take longer.
6.How about the service ?
(1).reply it at once on platform,reply it within 12 hour by email.
(2).deliver max. days within 15 days
(3).24 hours for after -sale service
(4).more than 12 years experience in this door and window machines
7.What's the guarantee ?
(1)Our guarantee for 18 months.
(2)24 hour's technical support by email or calling
(3)English manual and video tutorial
(4)2 year quality guaranty for the machine (excluding the consumables)
(5)We will provide the consumable parts at an agency price
(6)24 hours on line service each day, free technical support.
8. Do you provide equipment operation training?
A:Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have paaport. passport.
