Vertical Insulating Glass Production Line for Double Glass Making
1 Piece
$22,0001 Piece
$26,000Product information
High-quality Vertical Insulating Glass Production Line for Double Glass Making supplied by Jinan Smatech Machinery Enterprise Co.,Ltd. Bulk wholesale pricing ranges from $22,000 to $26,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Ig Glass Thickness:
12-48mm
Specification:
13000x2500x2680mm
Max Glass Sheet:
1800X2000mm
Glass Thickness:
3-18mm
Min Glass Sheet:
300X450mm
Insulation Thickness:
6-24mm
Production Capacity:
60/Year
Origin:
China
Specifications
Ig Glass Thickness:
12-48mm
Specification:
13000x2500x2680mm
Max Glass Sheet:
1800X2000mm
Glass Thickness:
3-18mm
Min Glass Sheet:
300X450mm
Insulation Thickness:
6-24mm
Production Capacity:
60/Year
Origin:
China
Trade Term:
FOB, CIF
Payment Term:
LC, T/T
Core Components:
PLC, Engine
Transport Package:
Package
Video Outgoing Inspection:
Provided
Port Of Loading:
Qingdao Port
Trademark:
SMT
Model NO.:
SMT-IGL-2030
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Year Established:
2025
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF
Port Of Loading:
Qingdao Port
Certificates:
product
Product descriptions from the supplier
SONA2024 2.2.1
Product Description
Before shipment, every machine undergoes strict testing to guarantee dependable performance.

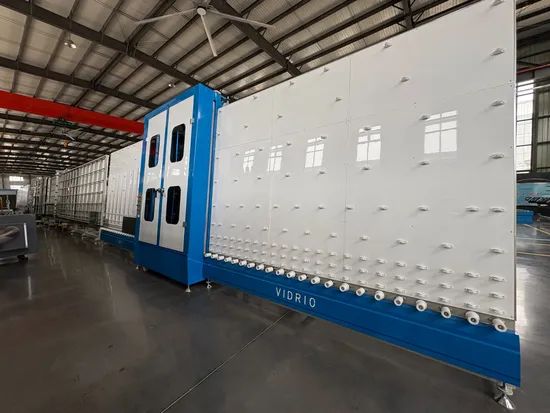

Vertical Insulating Glass Machine Double Glazing Making Machine
Upper Section
1. The entire panel utilizes back-up rollers, ensuring smoother glass handling, especially for small glass.
2. Equipped with a precise coated glass and Low-E glass recognition system, an intelligent conveyor system, a circulating air supply system, and a circulating water supply system.

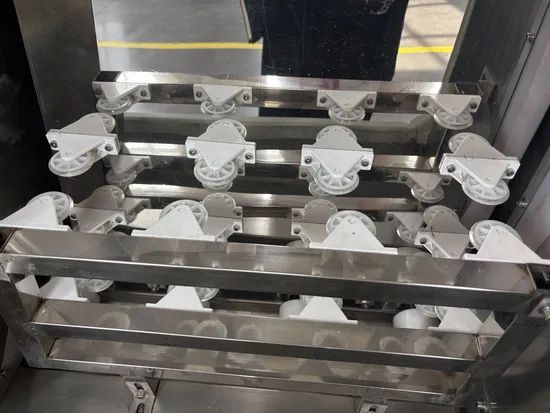

3. The combined conveyor wheels, with both ends integrated, can be used four times alternately.
1. The entire panel utilizes back-up rollers, ensuring smoother glass handling, especially for small glass.
2. Equipped with a precise coated glass and Low-E glass recognition system, an intelligent conveyor system, a circulating air supply system, and a circulating water supply system.
3. The combined conveyor wheels, with both ends integrated, can be used four times alternately.

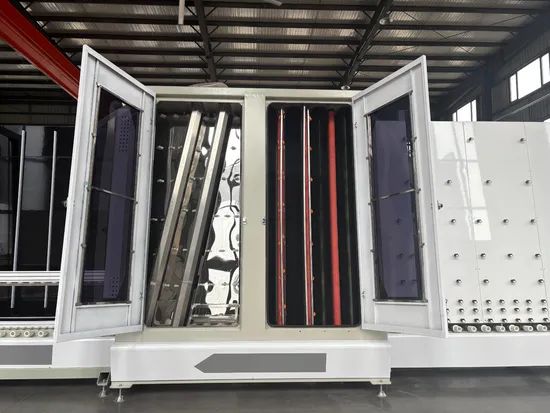

Cleaning Section
1. The brushes utilize 610 food-grade nylon yarn to reduce static electricity.
2. High-pressure nozzles (fan-shaped high-pressure spray) ensure that the cleaned glass is spotless.
3. Air Knife: The angle, airflow, speed, and pressure are based on scientific data to ensure efficient and effective drying.
4. The cleaning and drying conveyor system utilizes a "squeeze-wheel transmission device."
1. The brushes utilize 610 food-grade nylon yarn to reduce static electricity.
2. High-pressure nozzles (fan-shaped high-pressure spray) ensure that the cleaned glass is spotless.
3. Air Knife: The angle, airflow, speed, and pressure are based on scientific data to ensure efficient and effective drying.
4. The cleaning and drying conveyor system utilizes a "squeeze-wheel transmission device."
Aluminum Frame Positioning Section
1. Utilizes an integrated adjustment structure with a flat aluminum profile.
2. Ensures the depth between the aluminum frame and the glass edge is precisely adjustable, with a maximum depth of 50mm. This reduces manual frame placement time and improves overall line efficiency.
2. Ensures the depth between the aluminum frame and the glass edge is precisely adjustable, with a maximum depth of 50mm. This reduces manual frame placement time and improves overall line efficiency.
Vertical Insulating Glass Machine Double Glazing Making Machine
External Clamping Section
1. Time Control Function to Prevent Misalignment of the Glass Sheets - This section is controlled by time, rather than traditional photoelectric switches or limit switches. Because different glass materials (Low-E, coated, frosted) have different detection distances, this can easily cause the glass to not move into position and misalignment.
2. Glass Movement Buffer Function - A delay device is implemented when the second glass sheet of the external clamping section moves in, preventing collisions caused by inertia during movement. This device allows the glass to stop smoothly in the correct position.
3. The backing plate for aluminum spacers larger than 18A can be pushed into position in one go, eliminating the need for repeated retraction or manual operation. This prevents collisions with the aluminum spacers and improves the efficiency of wide aluminum-slatted insulating glass.

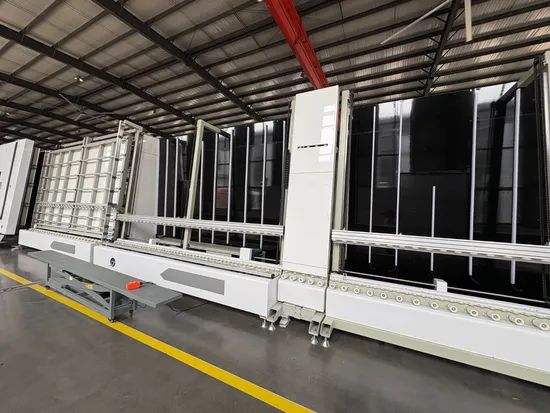

Inflatable Panel Press Section
1. The panel press achieves high precision, utilizing a ball screw and bidirectional linear guide rails. The rear panel automatically guides and positions the panel, ensuring parallel pressing of the two panels. Adjustable pressure is provided based on the size of the insulating glass, and the hold time can be adjusted accordingly.
2. A bottom-filling mode ensures uniform inflation and ensures fullness. Side and bottom seals are added to the panel press to effectively prevent air leaks during inflation. A blower is added to the rear panel to reduce friction between the glass and the rear panel.
3. The overall structure features a wide opening, allowing for easy access for regular maintenance and inspection.
1. Time Control Function to Prevent Misalignment of the Glass Sheets - This section is controlled by time, rather than traditional photoelectric switches or limit switches. Because different glass materials (Low-E, coated, frosted) have different detection distances, this can easily cause the glass to not move into position and misalignment.
2. Glass Movement Buffer Function - A delay device is implemented when the second glass sheet of the external clamping section moves in, preventing collisions caused by inertia during movement. This device allows the glass to stop smoothly in the correct position.
3. The backing plate for aluminum spacers larger than 18A can be pushed into position in one go, eliminating the need for repeated retraction or manual operation. This prevents collisions with the aluminum spacers and improves the efficiency of wide aluminum-slatted insulating glass.
Inflatable Panel Press Section
1. The panel press achieves high precision, utilizing a ball screw and bidirectional linear guide rails. The rear panel automatically guides and positions the panel, ensuring parallel pressing of the two panels. Adjustable pressure is provided based on the size of the insulating glass, and the hold time can be adjusted accordingly.
2. A bottom-filling mode ensures uniform inflation and ensures fullness. Side and bottom seals are added to the panel press to effectively prevent air leaks during inflation. A blower is added to the rear panel to reduce friction between the glass and the rear panel.
3. The overall structure features a wide opening, allowing for easy access for regular maintenance and inspection.
Specification
Vertical Insulating Glass Machine Double Glazing Making Machine features
1. Integrated frame design in order to minimize the size of equipment, saving installation space.

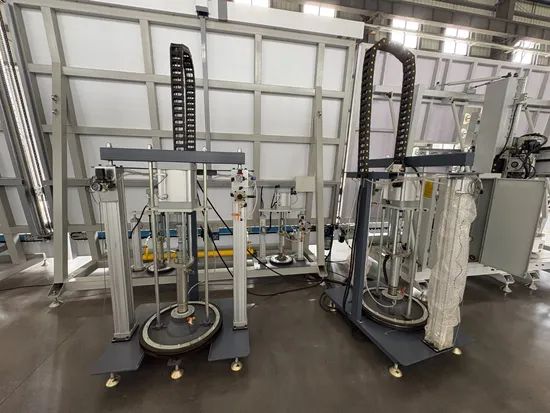

2. Automatic sealant discharging function to avoid the pipe blockage caused by human factors.
3. Special design for checking the depth of sealant in order to control the spread of sealant automatically.
4. Two sets of spreading sealant system can work completely independent(including mixer). One key switch for changing two
component sealant.
5. Coating with glass edge neatly, no dislocation. After coating the glass edge without seam, enrich the corner, quadrilateral
smooth surface no need to repair the glass corner.
6. V block type synchronous belt, make sure the smooth glass transmission and accurate position-ing, also can reduce the
phenomenon of belt sticking by sealant.
7. Convenient operation
2. Automatic sealant discharging function to avoid the pipe blockage caused by human factors.
3. Special design for checking the depth of sealant in order to control the spread of sealant automatically.
4. Two sets of spreading sealant system can work completely independent(including mixer). One key switch for changing two
component sealant.
5. Coating with glass edge neatly, no dislocation. After coating the glass edge without seam, enrich the corner, quadrilateral
smooth surface no need to repair the glass corner.
6. V block type synchronous belt, make sure the smooth glass transmission and accurate position-ing, also can reduce the
phenomenon of belt sticking by sealant.
7. Convenient operation
Item | Specification |
Power supply | 380V 50Hz 3P |
Total power | 35KW |
Process glass scale | |
- Max glass sheet | 2000 × 3000 mm |
- Min glass sheet | 280 × 480 mm |
- Original glass thickness | 3–30 mm |
- IG glass sheet thickness | 6–60 mm |
- Insulation thickness | 6–24 mm |
Glass transmission speed | 0–50 m/min |

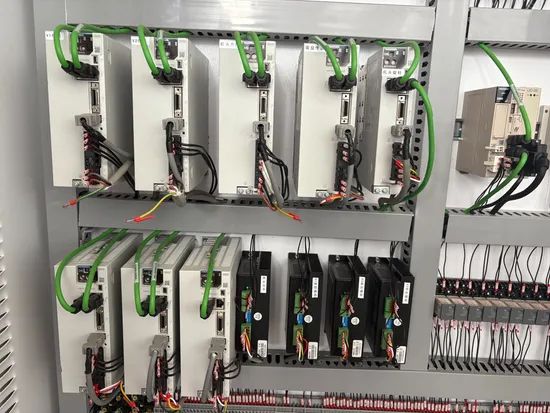

Name | Brand | Place of Origin |
Head rotating servo motor | YASKAWA | Japan |
Sealant nozzle servo motor | YASKAWA | Japan |
Head up/down servo motor | YASKAWA | Japan |
Sucker servo motor | YASKAWA | Japan |
Transport servo motor | YASKAWA | Japan |
PLC controller | YASKAWA | Japan |
IO module | MAYSTEM | Japan |
Sensor | Autonics | South Korea |
All low voltage appliance | Schneder | France |
Cylinder | Airtac | Taiwan |
Position sensor of belt | Novotechnik | Germany |
