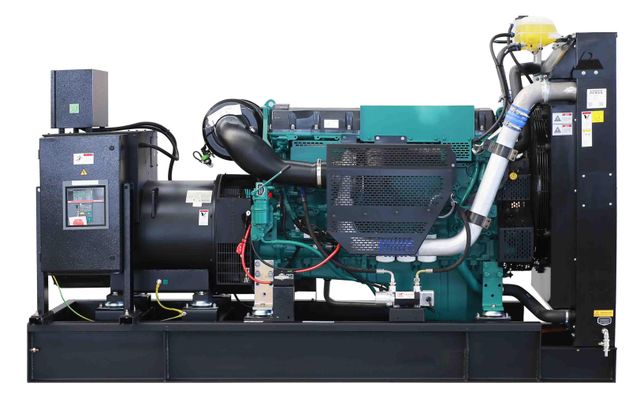

Volvo 500kVA Diesel Generator Set with Stamford Alternator
|
10 Inquiries
1-2 Set
$60,000MOQ:
Not specified
Payment Term:
To be discussed
Trade Term:
T/T
Port Of Loading:
Not specified
Key Takeaways
Freshdi AI is analyzing this product...
Volvo Generator Set Wholesale
500kVA Diesel Generator with Volvo Engine
Efficient 50% Load Diesel Generator
Product Specifications
Power Factor:
0.8
Number Of Bearing:
1
Displacement:
12.78l
Bore And Stroke:
131×158 Mm
Rated Speed:
1500rpm
Compression Ratio:
17.8
Fuel Consumption At 100% Prime Power Load:
191 G/kwh, 99l/h
Fuel Consumption At 75% Prime Power Load:
198 G/kwh, 77l/h
Fuel Consumption At 50% Prime Power Load:
199 G/kwh, 52l/h
Alternator Number Of Phase:
3
Connecting Type:
3 Phase And 4 Wires, Y Type Connecting
Overall Dimensions:
3200×1200×1950 Mm
Weight:
3250 Kg
Voltage:
380v/400v/415v/440v
Max Standby Power At Rated Speed:
470kw (with Fan)
Prime Power:
500 Kva
Frequency:
50hz
Standby Power:
550 Kva
Cylinder Arrangement:
6 In Line
Exciter Type:
Brushless Exciting
Place Of Origin:
China
Fuel System:
Elec. Injection, Elec. Fuel System
Governor Type:
Ems2
Insulation Class And Temperature Rise:
H/h
Protection Class:
Ip23
Type:
Open
Air Intake System:
Turbocharged, Air/air Inter Cooling
Engine Manufacturer And Model:
Volvo/tad1346ge
Altitude Rating:
≤1000m
Thf:
＜2%
Telephone Influence Factor:
＜50
1.3
1 yrs
Exporter/Wholesaler
Activity signals
Year Established
2009
Number of Employees
11-50 employees
Export Markets
Based on the information provided by the supplier.
Kenya
East Africa
100%
Verification information
Verify account email
By Freshdi.com
Verify business documents
Verify work email
Verify phone number
Product descriptions from the supplier
Genset Model: XP-V550
Prime Power: 500 kVA
Standby Power: 550 kVA
Voltage: 380V/400V/415/440V
Frequency: 50Hz
Overall Dimensions: 3200×1200×1950 mm
Weight: 3250 kg
Engine Specification
Manufacturer / Model VOLVO/TAD1346GE
Air intake system Turbocharged, Air/Air inter cooling
Fuel system Elec. Injection, Elec. Fuel System
Cylinder arrangement 6 in line
Displacement 12.78L
Bore and stroke 131×158（mm）
Compression ratio 17.8
Rated speed 1500rpm
Max. Standby power at rated speed 470KW (with fan)
Governor type EMS2
Fuel consumption @ 100% (Prime Power) Load 191 g/kWh 99L/h
Fuel consumption @ 75% (Prime Power) Load 198 g/kWh 77L/h
Fuel consumption @ 50% (Prime Power) Load 199 g/kWh 52L/h
Alternator Specification (Stamford S5L1D-C4)
Number of Phase 3
Connecting Type 3 Phase and 4 Wires, Y type connecting
Number of Bearing 1
Power Factor 0.8
Protection Class IP23
Altitude ≤1000m
Exciter Type Brushless exciting
Insulation Class/Temperature Rise H/H
Telephone Influence Factor (TIF) ＜50
THF ＜2%
