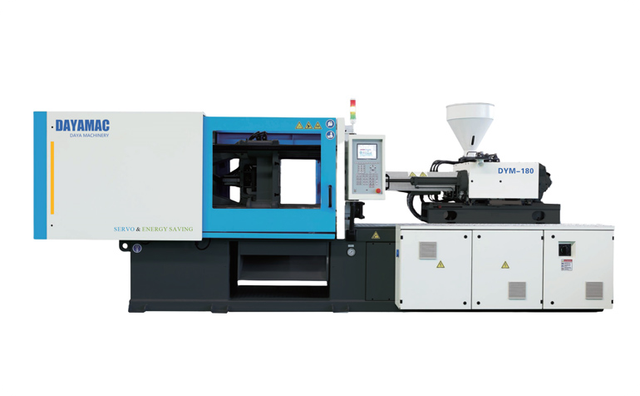

180ton servo injection molding machine
|
27 views
|
2 Inquiries
Set
Negotiable
MOQ:
1 Set
Payment Term:
T/T
Trade Term:
FOB
Port Of Loading:
NINGBO,CHINA
Key Takeaways
Freshdi AI is analyzing this product...
180t Servo Injection Molding Machine
Pre-Owned Servo Molding Machine
Injection Molding Machine for Medium Parts
Product Specifications
Screw Speed:
0-200 R/min
Heating Power:
12.3 Kw
Ejector Stroke:
140 Mm
Injection Rate:
147 G/s, 169 G/s, 208 G/s
Oil Pump Motor Power:
18.7 Kw
Minimum Mold Height:
180 Mm
Clamping Force:
1800 Kn
International Size Rating:
180t
Injection Pressure:
206 Mpa, 179 Mpa, 145 Mpa
Screw L/D Ratio:
23 L/d, 21.5 L/d, 19.3 L/d
Hopper Capacity:
25 Kg
Oil Tank Volume:
250 L
Injection Weight Ps:
277 G, 318 G, 393 G
Injection Volume Theoretical:
305 Cm³, 350 Cm³, 432 Cm³
Machine Dimensions Lw H:
4.99*1.4*1.8 M
Screw Diameter:
42 Mm, 45 Mm, 50 Mm
Mold Open Stroke:
430 Mm
Machine Weight:
5.3 T
Ejector Force:
50 Kn
Space Between Tie Bar:
515*465 Mm
Maximum Mold Height:
580 Mm
Pre Owned:
Yes
2.6
China
Exporter/Wholesaler
China
Activity signals
Total inquiries received
1
Export Markets
Based on the information provided by the supplier.
Algeria
Argentina
Bolivia, Plurinational State of
Brazil
Cameroon
South America
45%
North Africa
18%
Central Africa
18%
Eastern Europe
9%
East Africa
9%
Verification information
Verify phone number
Buyer Verification Team
Verify account email
By Freshdi.com
Verify business documents
Verify work email
Product descriptions from the supplier
PARAMETER
PARAMÈTRE
UNIT
180T
International Size Rating
640
INJECTION UNIT
UNITÉ D'INJECTION
A
B
C
Screw Diameter
Diamètre de la vis
mm
42
45
50
Screw L/D Ratio
Rapport L/D de la vis
L/D
23
21.5
19.3
Injection volume (theoretical)
Volume d'injection (théorique)
cm³
305
350
432
Injection weight (PS)
Poids d'injection (PS)
g
277
318
393
Injection rate
Taux d'injection
g/s
147
169
208
Injection pressure
Pression d'injection
Mpa
206
179
145
Screw speed
Vitesse de la vis
r/min
0-200
CLAMPING UNIT
UNITÉ DE SERRAGE
Clamping force
Force de serrage
kN
1800
Mold open stroke
Course d'ouverture du moule
mm
430
Space between tie-bar
Espace entre les tirants
mm
515*465
Max. mold height
Hauteur maximale du moule
mm
580
Min. mold height
Hauteur minimale du moule
mm
180
Ejector stroke
Course de l'éjecteur
mm
140
Ejector force
Force d'éjection
kN
50
OTHERS
AUTRES
Oil Pump motor power
Puissance du moteur de la pompe à huile
kw
18.7
Heating power
Puissance de chauffage
kw
12.3
Machine dimension (L*W*H)
Dimensions de la machine (L*l*H)
m
4.99*1.4*1.8
Machine weight
Poids de la machine
t
5.3
Hopper capacity
Hopper capacity
kg
25
Oil tank volume
Volume du réservoir d'huile
L
250
