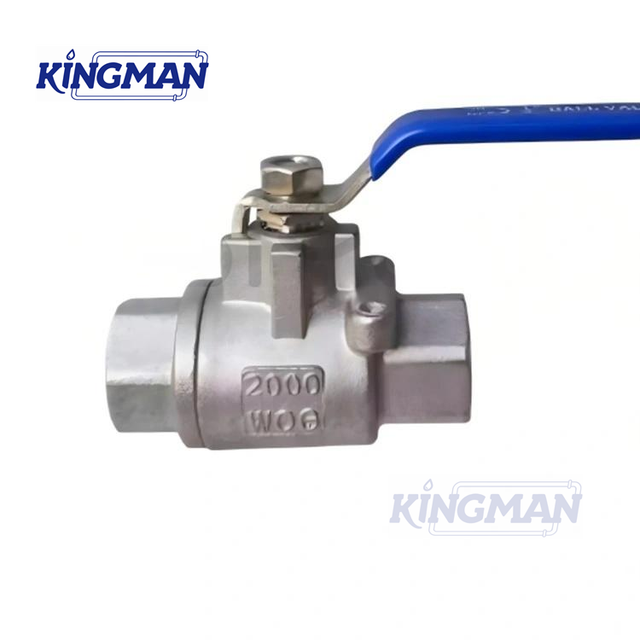

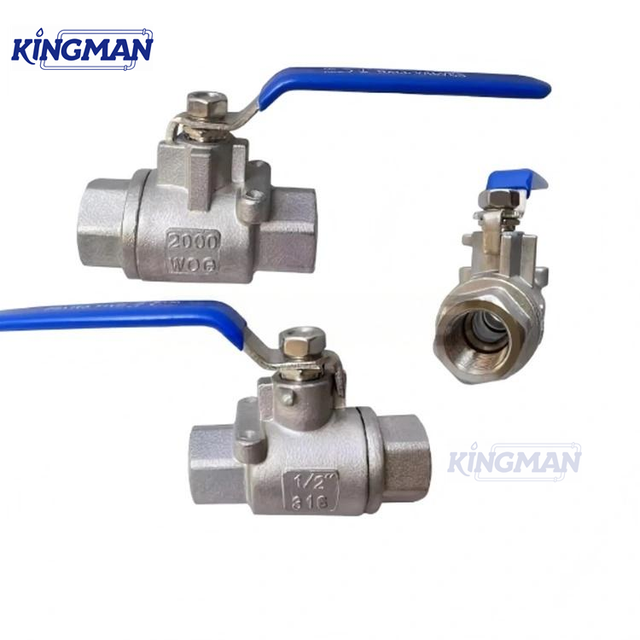

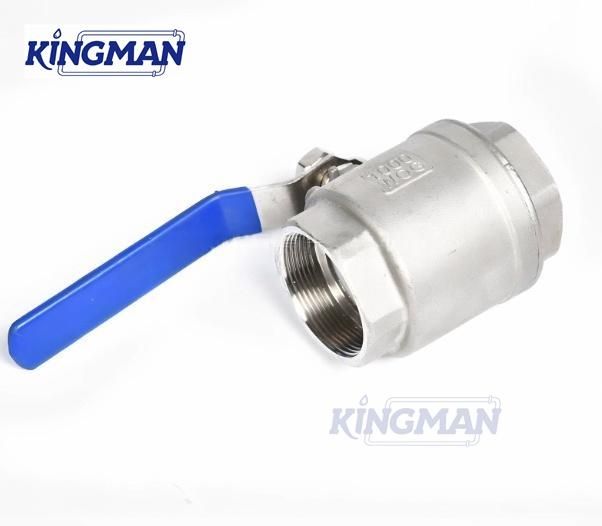

2PC Hygienic Inox Ball Valve 2000WOG

Professionally Designed, Easy Installation

The 2PC Threaded Ball Valve 2000WOG features a classic two-piece design, consisting of an upper valve body cover and a lower valve body seat, secured with bolts. This design ensures valve structural stability while simplifying installation and maintenance.

The valve core and stem are internally integrated, using a threaded connection compatible with various international standard threads such as NPT, BSP, and G, facilitating compatibility with existing pipelines worldwide. The threads are precision-machined by CNC, ensuring a clean and tight fit, guaranteeing leak-free connections. Installation requires no welding or complex clamps; it can be directly connected to the pipe thread and manually tightened. Disassembly is simple: just loosen the valve body mounting bolts for quick disassembly and inspection, significantly improving installation and maintenance efficiency.

Furthermore, the valve core features a through-hole design, ensuring a secure connection with the valve stem and smooth, unobstructed opening and closing. The 90° rotating opening and closing mechanism allows for rapid switching and precise control of fluid flow, eliminating flow resistance and ensuring smooth fluid delivery.

Superior Performance, Reliable Quality

The core marking "2000WOG" indicates its rated pressure and applicable medium—2000PSI (approximately 13.8MPa). This is a key indicator of its excellent pressure-bearing capacity, ensuring long-term stable operation within a pressure range of 13.8MPa, making it perfectly suited for medium- and high-pressure pipeline conditions in industrial settings.

The 2PC Threaded Ball Valve 2000WOG has an operating temperature range of -20℃ to +180℃ (adjustable depending on material and seals). It can withstand temperature variations of common media such as water, oil, and gas without deformation or leakage, ensuring stable operation in various working environments. Sealing performance is the core advantage of this valve. It uses polytetrafluoroethylene (PTFE) or PPL sealing materials, with the sealing surface precision-ground by CNC, perfectly fitting the valve core to achieve a bidirectional zero-leakage seal, effectively preventing media leakage and eliminating safety hazards.

In terms of materials, the valve body, valve core, and valve stem are all made of high-quality stainless steel (304/316L), possessing excellent corrosion resistance and wear resistance, extending valve life and reducing the frequency of replacement and maintenance for customers.
