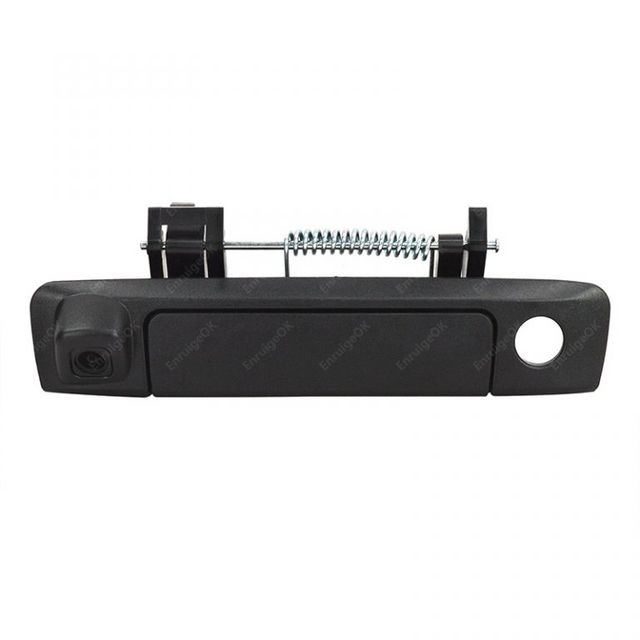

700TVL Factory Replace Car Rear View Reverse Camera Tailgate Handle Backup Camera for Ford Ranger Mazda BT50 2012-2020

Product Overview

The 700TVL factory replace rear view reverse camera is a high-resolution backup camera designed specifically for vehicles such as the Ford Ranger and Mazda BT50 from model years 2012 to 2020. This camera is engineered to provide clear, real-time visibility during reverse driving, enhancing safety and ease of parking. It is typically installed on the tailgate or rear bumper and connects via a standard video cable to the car’s infotainment or backup display system.

Technical Specifications

• Resolution: 700TVL (Television Lines), offering clear and detailed image quality suitable for nighttime and low-light conditions.
• Image Sensor: Typically uses a CMOS sensor with a 1/4-inch or 1/3-inch format for optimal field of view and image clarity.
• Field of View: Approximately 100–120 degrees, providing a wide-angle view of the vehicle’s rear area.
• Video Output: Supports standard analog or digital video output (e.g., RCA or HD-SDI), compatible with most factory backup systems.
• Mounting Type: Designed for tailgate or rear bumper mounting with included hardware and bracket.
• Power Supply: Operates on 12V DC, drawing power from the vehicle’s electrical system.
• Weather Resistance: IP67-rated or equivalent, ensuring protection against dust, moisture, and temperature fluctuations.

Common Varieties and Grades

Reverse cameras in this category are typically available in different grades based on build quality and image clarity. Factory-grade units are often distinguished by:

• Standard Grade: Basic 700TVL resolution, suitable for general use and standard parking needs.
• Enhanced Grade: Improved lens quality, better image stabilization, and enhanced low-light performance.
• Industrial Grade: Built for harsh environments with reinforced housing and longer lifespan.

These variations are often selected based on user needs, such as frequent off-road driving, urban parking, or rural terrain.

Typical Applications

This backup camera is widely used in both passenger and light-duty trucks, especially in regions where parking in tight spaces or reversing on uneven terrain is common. It is particularly beneficial for:

• Urban parking in narrow streets or crowded areas.
• Off-road or rural driving where visibility is limited.
• Truck and van operations requiring precise maneuvering.
• Commercial fleets where driver safety and efficiency are prioritized.

Installation and Compatibility

The 700TVL camera is designed to fit seamlessly into the factory mounting points of Ford Ranger and Mazda BT50 models from 2012 to 2020. It is compatible with:

• Standard tailgate or rear bumper mounting brackets.
• Existing backup camera systems that support analog or digital video input.
• Most factory-installed or aftermarket dash displays.

Installation typically requires minimal tools and can be completed by a DIY user or a professional mechanic. The camera includes all necessary hardware for mounting and wiring.

Quality and Performance Standards

High-quality reverse cameras in this category meet industry standards for image clarity, durability, and reliability. Key performance indicators include:

• Minimal image distortion or blurring at wide angles.
• Consistent performance in varying lighting conditions.
• Robust construction to withstand vibration, temperature extremes, and moisture.
• Long-term reliability with no signal dropouts or lag.

Manufacturers often test these units under real-world driving conditions to ensure consistent performance across different environments.

Packaging and Export Context

The product is typically packaged in a protective plastic box with clear labeling, including model number, compatibility details, and technical specifications. Each unit is individually wrapped to prevent damage during shipping.

It is commonly exported to markets in Asia, Europe, and North America, where demand for reliable and cost-effective backup systems is high. The product is often sold as a standalone replacement or as part of a complete reverse camera kit.
