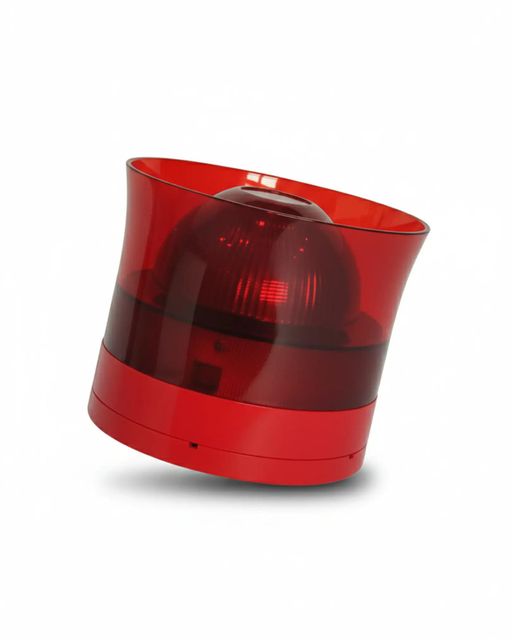

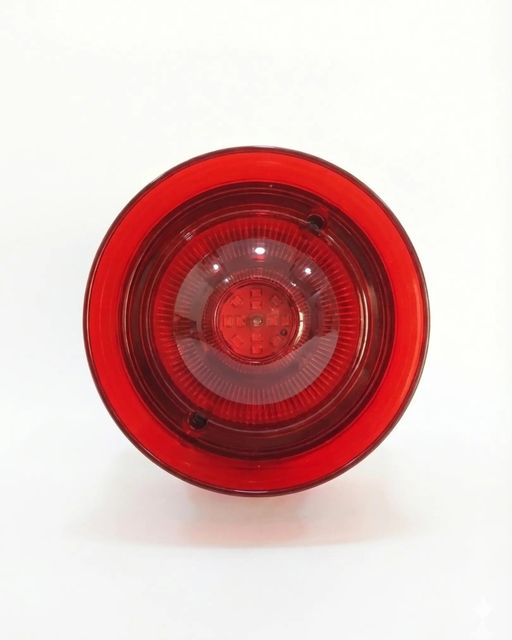

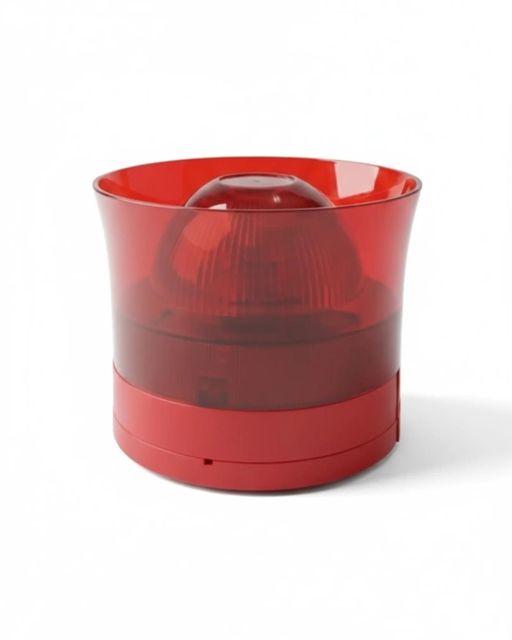

Agni Veiga Series Intelligent Addressable Loop Sounder / Horn Cum Strobe – Wall Mounted

The Agni Veiga Series Intelligent Addressable Loop Sounder / Horn Cum Strobe is a reliable audible and visual notification device for intelligent fire alarm systems. Designed for indoor wall mounting, it combines a powerful sounder or horn with a high-performance LED strobe to visual emergency alerts in both quiet and noisy environments. Operating with a 18V to 40V DC supply range, the device supports continuous and pulsing alarm outputs, selectable via DIP switches for differentiated evacuation and alert signaling. The sounder gives a maximum acoustic output of 97.5 dBto 105 dB at 1 meter, meeting alarm audibility requirements for occupied and sleeping areas.

The integrated LED strobe provides visual indication with programmable light intensities of 35 cd, 40cd, or 85/110 cd (RMS at 24 V DC). Built using ABS and polycarbonate flame-retardant material (UL 94 V2), the unit ensures durability and safety under demanding operating conditions. The sounder operates reliably across a temperature range of -10°C to 70°C and up to 95% RH non-condensing humidity. Fully compliant with IS 2189 and EN 54, the Veiga Series Loop Sounder / Horn Cum Strobe is ideal for commercial, industrial, and institutional fire alarm installations.
