Automatic Concrete Block Making Machine (Stationary Type), Max. Production Capacity 10,000–15,000 pcs/shift, for Paving Blocks, Hollow Blocks, and Bricks

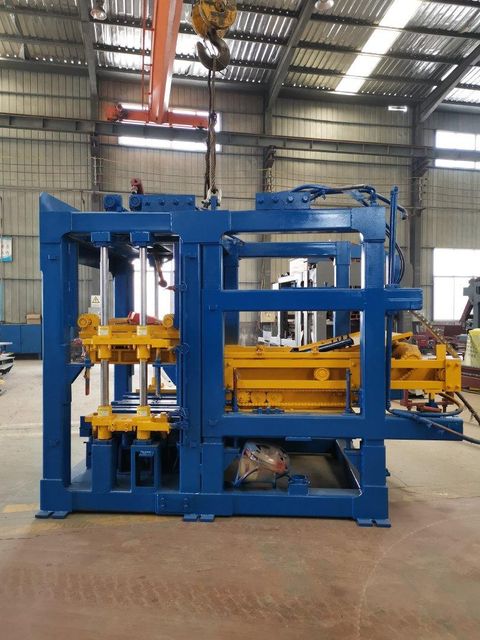

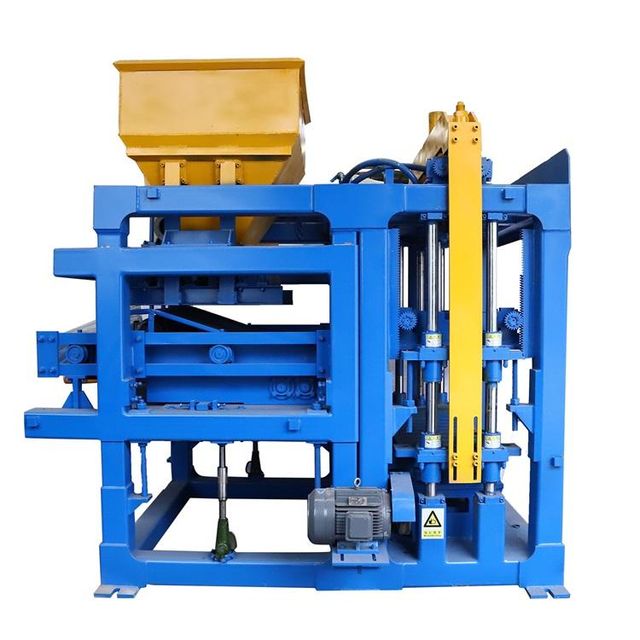

QT6-15 Block Forming Machine – Eco-Friendly, Energy-Saving, and Cost-Effective

The QT6-15 block forming machine is an advanced building materials production solution designed to support environmental sustainability by conserving land resources, reducing energy consumption, and utilizing industrial waste. This equipment transforms materials such as cement, sand, pea gravel, crushed stone, pebbles, and cinder into high-quality non-burning bricks.

These bricks feature a high void ratio, excellent durability, low production cost, and strong resistance to weathering. By eliminating the need for clay and fuel, the QT6-15 helps protect farmland and reduce carbon emissions. It makes use of locally available resources—whether mountain rock, river pebbles, or urban industrial byproducts—offering a versatile and widely accessible raw material supply.

With a simple production process, low initial investment, and fast construction setup, the QT6-15 is suitable for both large-scale manufacturing and small-site operations. Its design combines advanced technology with user-friendly operation, ensuring high adaptability across urban and rural applications. The machine also contributes to shorter construction timelines and lower project costs.

1 Main Technical Parameters

Machine dimensions (mm) 3200 × 2300 × 2750

Molding cycle (s) 15–20

Vibration force (kN) 60–80

Vibration frequency (r/min) 2800–4500

Main motor power 45 kW

Machine weight 8.35 t

Pallet size (mm) 1150 × 720 × 30

2 Theoretical Production Capacity

Product Size (mm) Molding Cycle (s) Pcs per Cycle Output (pcs/h)

Concrete block 390 × 190 × 190 15–20 6 1440–1080

Perforated brick 240 × 115 × 90 15–20 18 4320–3240

Solid brick 240 × 115 × 53 12–17 40 12000–8470

Paving tile 200 × 100 × 60 20 35 7560

I-shaped brick 200 × 163 × 60 20 24 4320
