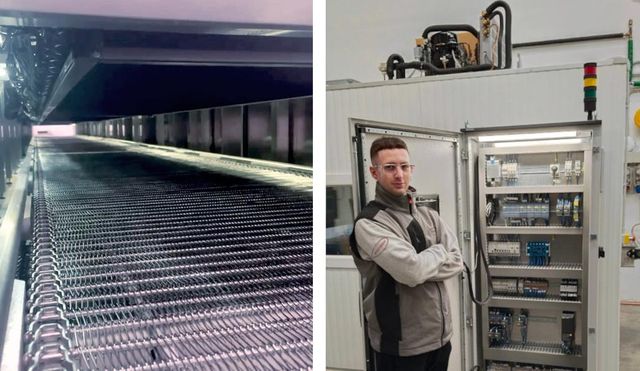

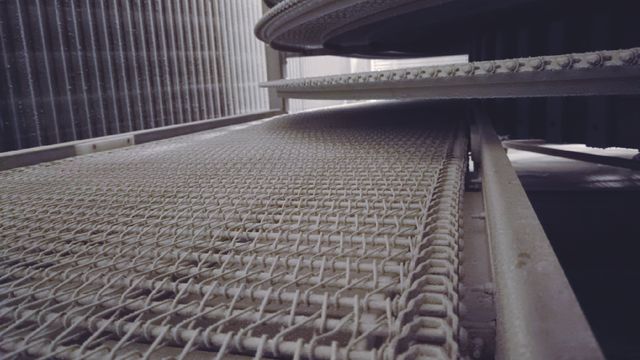

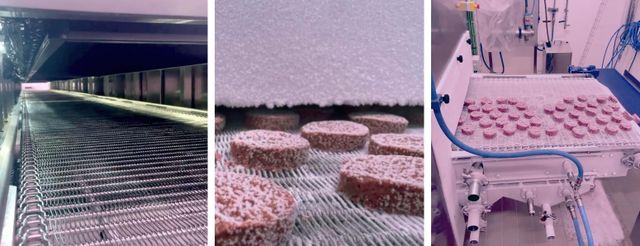

Blast chiller tunnel for meat, fish, bread, ice cream, pastry, cheese, fruits and vegetables

Industrial and semi-industrial blast chillers.

The control system allows to manage the processes of blast chilling, deep freezing, slow cooking, defrosting, proofing, pasteurisation and sanitisation, as well as the transport phases of food products.

Areas of application:

- bakery;

- pastry shop;

- delicatessen;

- ice cream parlour;

- fishmonger;

- dairy products;

- fruit and vegetables;

- ready-to-eat foods;

others.

The TECH-COLD system consists of:.

- PLC (SIEMENS controller) with touch screen;

- Electrical panel;

- Electrical diagram design;

- Software.

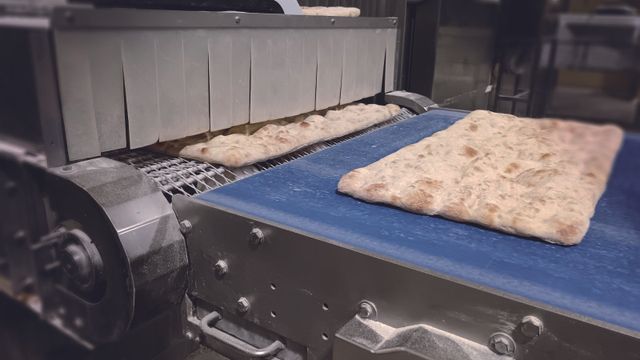

The system can automate all stages of food transport inside and outside the blast chiller. When integrated into a production cycle, it can modulate the speed of the conveyor belt according to the required blast chilling, deep-freezing or slow cooking times.

The system allows you to create customised blast chilling, deep-freezing or slow cooking cycles thanks to a recipe book integrated into the software, which can be programmed according to customer requirements. In addition, event logging allows you to constantly monitor the processing phase in progress, for example by analysing temperature trends.

The system includes specific functions for blast chiller maintenance, such as defrosting, drying cycles and monitoring the operating times of system components.

Open software

The system features a SIEMENS PLC programmed with open software created by RETECH, capable of communicating with other IT systems in the production cycle. The open software also allows additional functions to be integrated into the system according to specific customer requirements.

Software updates

The system is designed to allow software modifications, system updates and adjustments to the design or electrical panel. This means that TECH-COLD can be adapted to changing requirements or new areas of application.

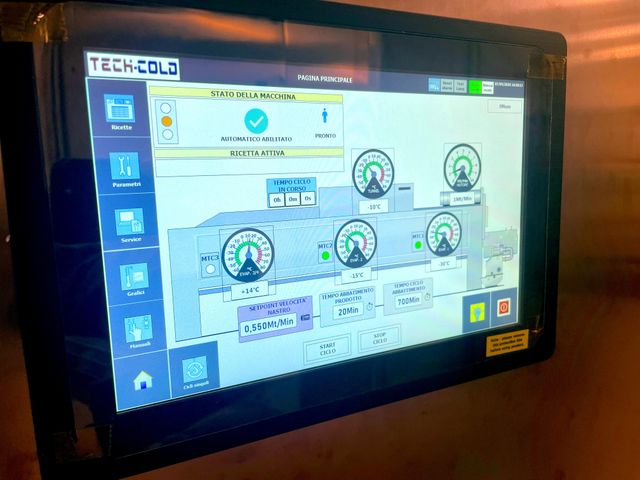

Customisable touch screen interface

The system has a touch screen panel with an intuitive and easy-to-navigate graphical interface. The graphical interface can be customised to suit specific customer requirements.

Remote assistance

A remote assistance device can be integrated into the TECH-COLD system, allowing to provide remote assistance, for example through changes to the operating cycle or software updates.
