EnruigeOK Car Brake Light Reverse Camera For VW CRAFTER [MK2] & Man TGE Van 2017-Onwards

EnruigeOK Car Brake Light Reverse Camera for VW Crafter [MK2] & Man TGE Van 2017-Onwards

Features:

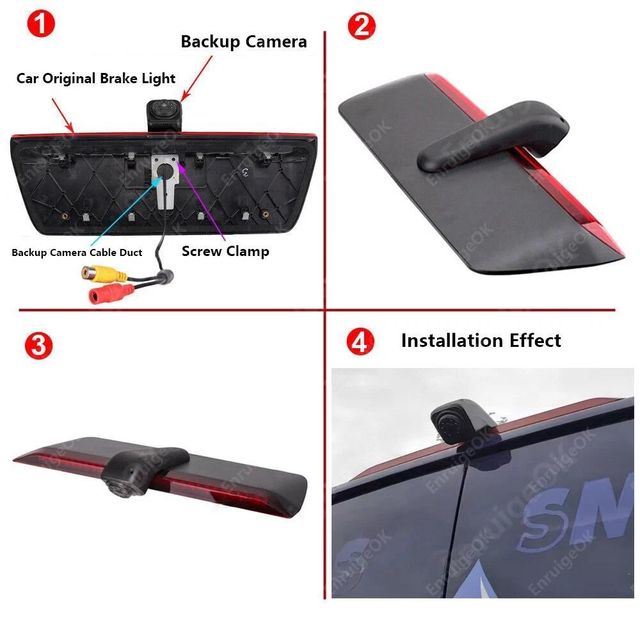

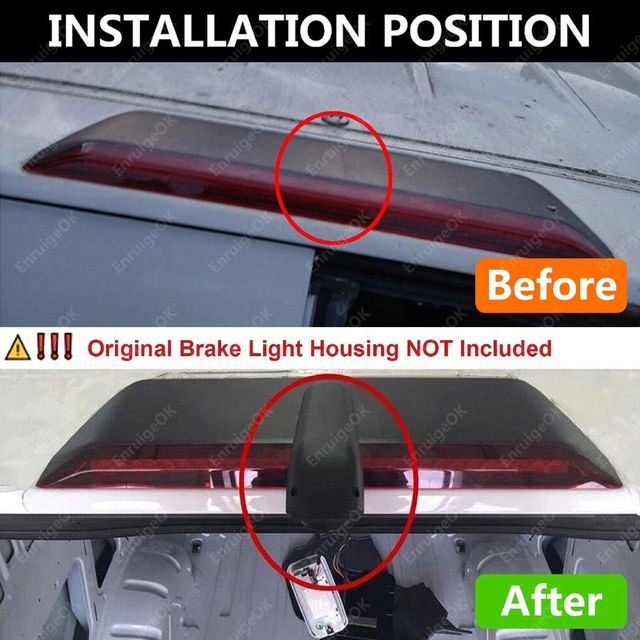

* Brake Light Replacement Camera. This brake light reversing camera is designed to replace your existing brake light for an easy and factory like install.

* High quality image. This Brake light camera used 1/4" CMOS Sensor which have more color Image. Equipped with a built-in IR-CUT, the camera features 6 infrared lights around the lens to ensure excellent night vision.

* With a 120-degree viewing angle, this reversing camera provides detailed information about the environment behind your car.

* 100% Waterproof. This camera built with IP68 rating, which make it 100% waterproof.

Specifications:

Lens Material: Glass

Image sensor: 1/4" CMOS

TV system: PAL/NTSC option

Waterproof rating: IP68

Effective pixel: 733(H)x493(V)

Horizontal sync frequency: 15.625KHZ

Scanning system: 2:1 interface

Sync system: Internal

ACG: Auto

BLC: Auto

Resolution: CVBS 480TV lines

S/N Ratio: more than 48dB

Current consumption: no more than 150mA

Minimum illumination: 0.1Lux

Power supply: DC12V

Power: 5W

Product Overview

This reverse camera system is specifically designed for VW Crafter [MK2] and Man TGE Van models from 2017 onwards. It provides a clear, real-time view of the vehicle's rear area through a high-resolution camera, integrated with a brake light function for enhanced safety and visibility.

Key Features

High-definition video feed with night vision capability for improved visibility in low-light conditions.

Integrated brake light function that activates when the vehicle is braking, signaling to following vehicles.

Compact and durable design, suitable for installation in the rear of the vehicle without compromising aesthetics.

Easy-to-install solution compatible with existing wiring systems of the specified vehicle models.

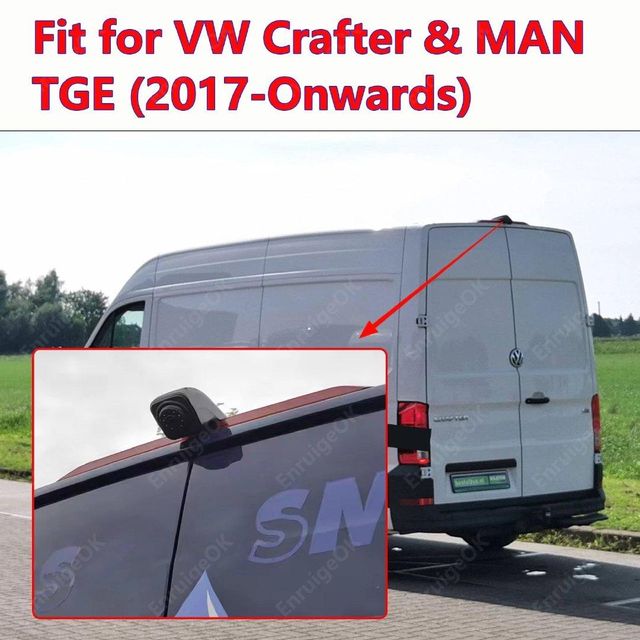

Compatible Models: VW Crafter [MK2], Man TGE Van (2017 and onwards)

Application & Use

Perfect for drivers who require enhanced rear visibility during parking, reversing, or navigating tight spaces. The system improves safety by reducing the risk of collisions and enhances driver confidence in urban and rural driving environments.

Design & Functionality

The camera captures a wide-angle view of the vehicle's rear, displaying it on a clear display screen. The brake light integration ensures that the driver's braking actions are clearly communicated to other road users, contributing to safer driving behavior.
