GS2 Solid State LiDAR Sensor with 25-300mm Range 100-108 Field of View 0.6 Angle Resolution
1 Unit
$38MOQ:
1 Unit
Payment Term:
Other, T/T
Trade Term:
EXW
Port Of Loading:
Shenzhen, China, Cn (SZX/SZP)
Key Takeaways
Freshdi AI is analyzing this product...
100-Degree Detection Angle
3mm Smallest Detectable Object
0.6 Degree Angle Resolution
Product Specifications
Ranging Angle Resolution:
0.6 Degrees
Detection Angle:
100 Degrees
Service Life:
10000 Hours
Detection Range:
25mm To 300mm
Smallest Detectable Object Diameter:
3mm
Eye Safety Class:
Class I
Application:
Home Service Robot Navigation And Obstacle Avoidance, Robot Obstacle Avoidance, Smart Equipment Obstacle Avoidance
Application Area:
Light Detection and Ranging
2.1
China
Exporter/Wholesaler
Shenzhen, Guangdong, China.
Activity signals
Total inquiries received
1
Year Established
2015
Export Markets
Based on the information provided by the supplier.
Japan
South Korea
Turkey
United Arab Emirates
United Kingdom
Western Europe
38%
East Asia
25%
Middle East
25%
North America
12%
Verification information
Verify account email
By Freshdi.com
Verify business documents
Verify work email
Verify phone number
Product descriptions from the supplier

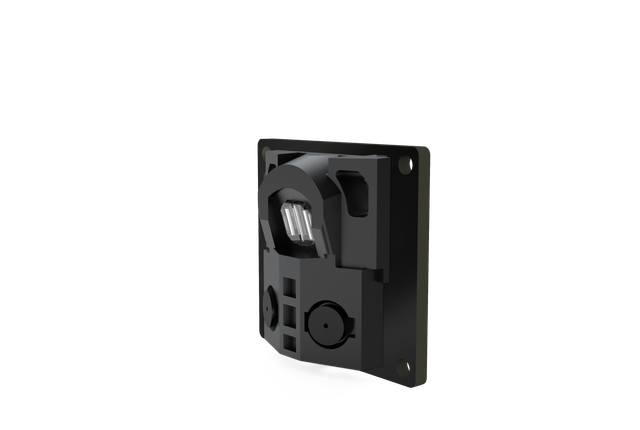

1 PRODUCT OVERVIEW
YDLIDAR GS2 is a Linear array solid LiDAR (hereinafter referred to as GS2) developed by
EAI team. Based on the principle of Triangulation, it is equipped with related optics, electricity, and
algorithm design, to achieve 100 degrees high-precision laser distance measurement, and output
point cloud data of the scanning environment. It can be used for robot obstacle avoidance, path
planning, etc.
1.1 Product Features
➢ High accuracy, stable performance
➢ High resolution of ranging angle, up to 0.6 degrees
➢ Good obstacle avoidance effect, the smallest object with a diameter of 3mm can be detected
➢ Wide detection range, no blind zone in combination, FOV up to 100 degrees
➢ Small detection range blind area, detectable distance is 25mm~300mm
➢ Class I eye safety
➢ 10000h Service life
1.2 Applications
➢ Robot obstacle avoidance
➢ Obstacle avoidance of smart equipment
➢ Navigation and obstacle avoidance of home service robots/vacuum clean robots
