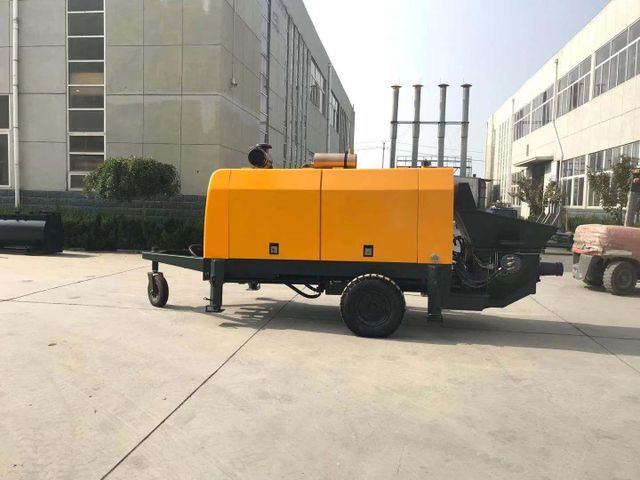

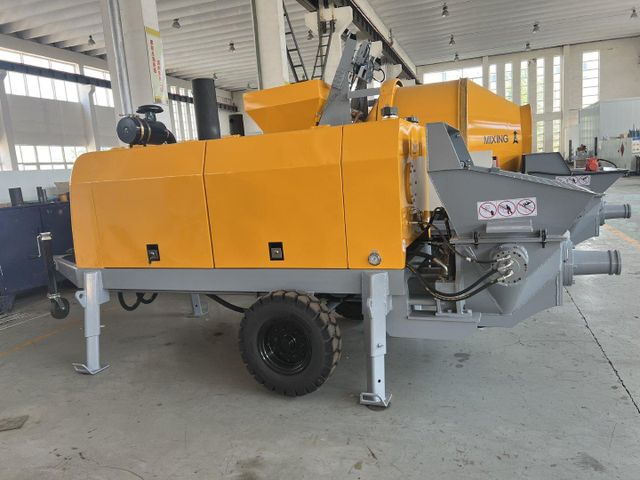

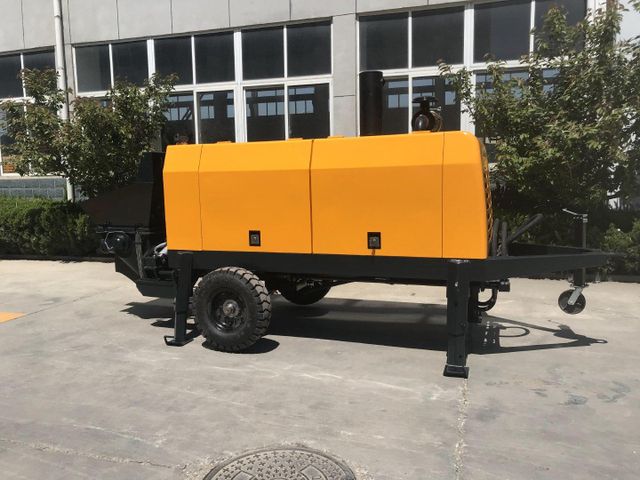

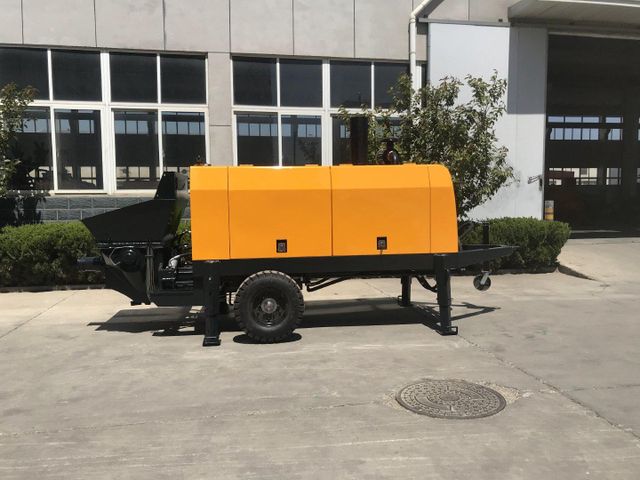

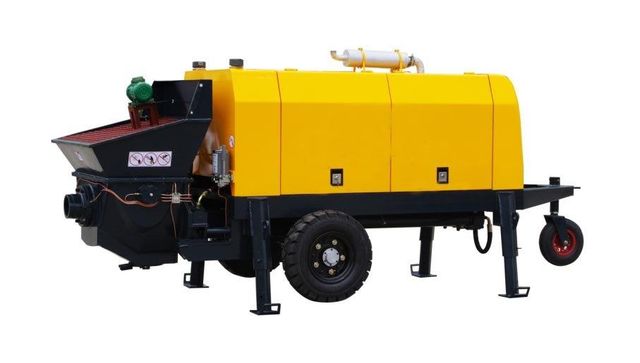

HBTS40 Diesel Engine Concrete Pump Trailer Type for Construction & Infrastructure

1 Performance Characteristics

1. Electrical System: The entire machine is controlled by a PLC programmable computer with optimized control circuitry for simple operation. A wireless remote control is included for convenient long-distance operation.

2. Pumping System: Utilizes a dual-cylinder fully hydraulic pump, improving work efficiency and reducing the failure rate.

3. S-tube Distribution Valve ("New Constant Pressure Reversing S-tube Valve," Utility Model Patent No. ZL 2015 2 0154080.6): Equipped with a floating wear-resistant ring, it automatically compensates for wear, ensuring good sealing, a simple and reliable structure, improving work efficiency, and reducing maintenance costs. It offers two operating modes: low-pressure high-volume and high-pressure low-volume.

4. Reversing System: Employs electro-hydraulic reversing, providing sensitive response and good stability.

5. High Outlet Pressure: Horizontal conveying distances reach 400-500 meters, and vertical conveying distances reach 150-180 meters, meeting the conveying requirements of high-rise buildings and long-distance construction.

6. Cooling System: The hydraulic oil cooling system utilizes an oil-air cooler, providing high cooling power and ensuring the hydraulic system's operating oil temperature is controlled below 60℃. This eliminates the limitations of water-cooled radiators requiring a water source, facilitating construction and easy equipment movement.

7. Hydraulic Circuit: An open hydraulic system is used, increasing reversing speed and efficiency.

8. Reverse Pump Function: Features a reverse pump function with automatic pressure protection, reducing pipe blockage, improving work efficiency, and extending pipe lifespan.

9. Hydraulic Oil Tank: A large-capacity hydraulic oil tank extends the hydraulic oil change cycle and reduces maintenance costs.

10. Mixing Device: Reliable sealing prevents leakage; the mixing blades have a reasonable structure suitable for various concrete mix proportions.

11. Vibrating Screen: The hopper uses an integrated vibrating screen, making replacement and cleaning simple and convenient. The mesh density and shape are optimized.

12. Easy Mobility: Equipped with casters, it can be towed by vehicle for flexible movement.

2 Scope of Application

HBT30/HBT40/HBT50 are mainly used for conveying cement mortar in buildings, building complexes, and floors, including flooring, underfloor heating, and thickening concrete sections.

HBT60/HBT80 are used for main building construction, piling, building construction, commercial concrete conveying in high-rise buildings, railways, hydropower, mining, national defense projects, foundations, roads, bridges, bridge decks, supports, reinforcement and filling of large structures, etc.

HBT90/HBT100 are used for concrete conveying in large-scale engineering projects, and projects requiring large-area concrete conveying such as high-rise buildings.

Our HBT series can be used for conveying ordinary concrete, or for mixing operations simultaneously with our JZC/JS series mixers, or for a two-in-one application of mixing and pumping with our SL series batching and mixing machine, or for filling pumping operations with a placing boom, or for shotcreting operations with high-pressure nozzles.

3 Technical parameters

Maximum theoretical concrete output (low/high pressure)

42 / 23 m³/h

Maximum concrete pumping pressure (high/low pressure)

13 / 6.3 MPa

Maximum delivering distance (vertical / horizontal)

180 / 550 m

Concrete valve type

S Valve

Concrete cylinder diameter × stroke length

Φ160 × 1000 mm

(Cylinder: Φ110 × 1244)

Hopper capacity × hopper height

400 L × 1100 mm

Maximum aggregate diameter

Pebbles: 45 mm

Gravel: 40 mm

Outlet inner diameter

Φ125 mm

Delivering pipe inner diameter

Φ100 – Φ125 mm

Lubrication system

Automatic greaser

High-low pressure conversion

Yes

Remote control

Wireless

Diesel engine model

4105ZD

Rated power

60 kW

Rated speed

1800 r/min

Rated fuel consumption

10.0 L/h

Hydraulic system type

Open loop

Pumping system pressure

32 MPa

Stirring system pressure

12 MPa

Hydraulic tank capacity

180 L

Length × width × height

4300 × 1670 × 1680 mm

Main weight

3100 kg
