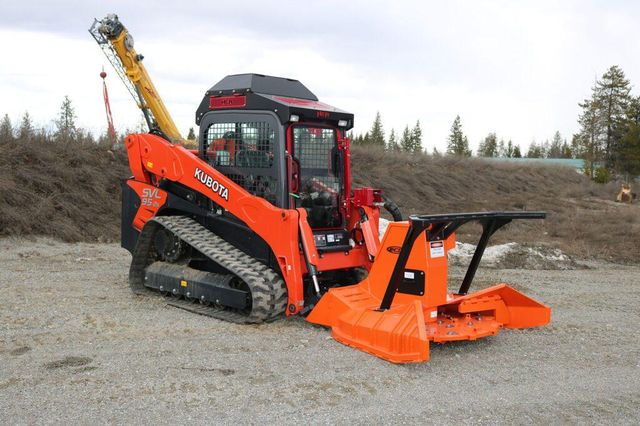

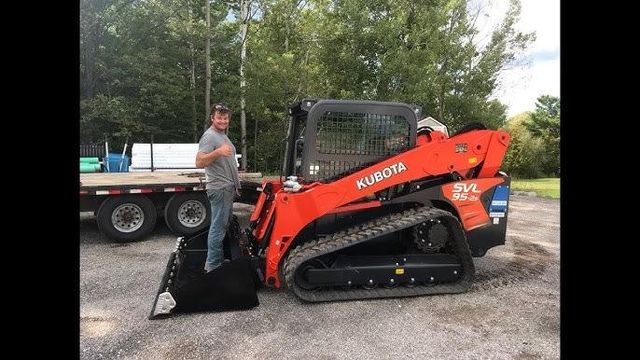

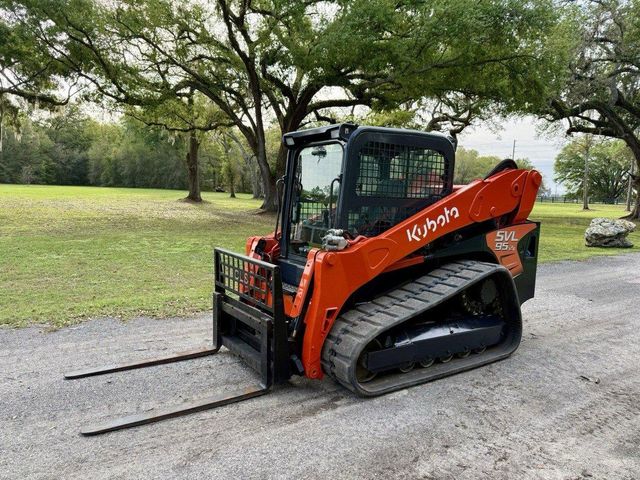

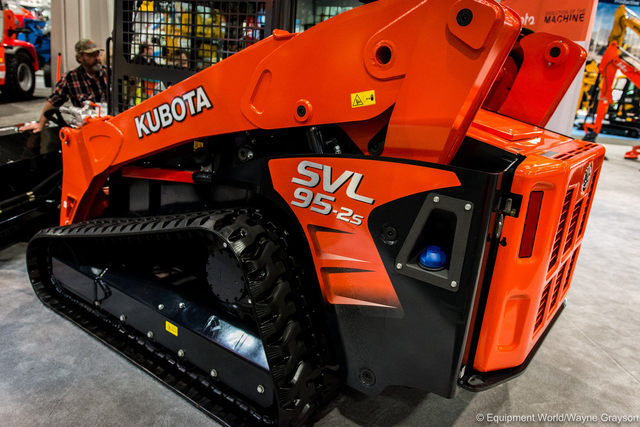

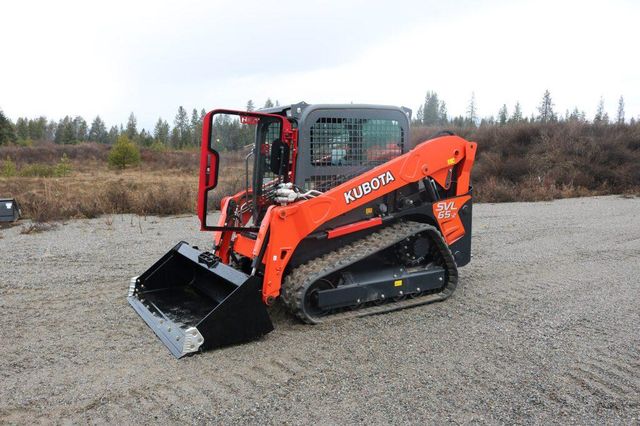

Kubota SVL 95-2 Skid Steer

The Kubota SVL 95-2 is a heavy-duty compact track loader (CTL) designed for high-performance lifting, loading, and attachment work. As the largest machine in Kubota’s SVL lineup at the time of its release, it features significant upgrades in power and hydraulic capacity over its predecessor, the SVL 90-2.

Specifications

• Engine: 96.4 HP turbocharged Kubota V3800-TIEF4 diesel engine.
• Operating Weight: Approximately 11,574 lbs (enclosed cab) or 11,299 lbs (open cab).
• Rated Operating Capacity (ROC): 3,200 lbs at 35% tipping load; 4,571 lbs at 50% tipping load.
• Tipping Load: 9,143 lbs.
• Hydraulics: Standard high-flow system delivering up to 40.0 GPM at 3,553 PSI.
• Lift Path: Vertical lift design for better reach and stability when dumping at height (max hinge pin height: 128.5 inches).

Key Features

• Slide-Up Front Door: A signature Kubota feature that allows the door to be opened regardless of the loader arm position, improving operator safety and access.
• Electronic Torque Management: Prevents engine stalls by optimizing hydraulic pump output based on the load, enabling smoother operation under heavy strain.
• Spacious Cab: Features one of the widest cab entrances on the market (36 inches), standard heat and AC in cab models, and ergonomic pilot controls.
• Undercarriage: Integrated welded mainframe with a triple-flange track roller design to minimize de-tracking risks

Maintenance and Common Considerations

• DEF System: Being over 75 HP, this model requires Diesel Exhaust Fluid (DEF) to meet Tier 4 Final emissions standards.
• Serviceability: The cab tilts up to 72° for easy access to hydraulic pumps and valves, and the radiator can be tilted for cleaning.
• User Feedback: Operators praise its power and smooth controls but have noted potential issues with the AC system reliability and the need to keep the engine under high load to avoid emissions system soot buildup
