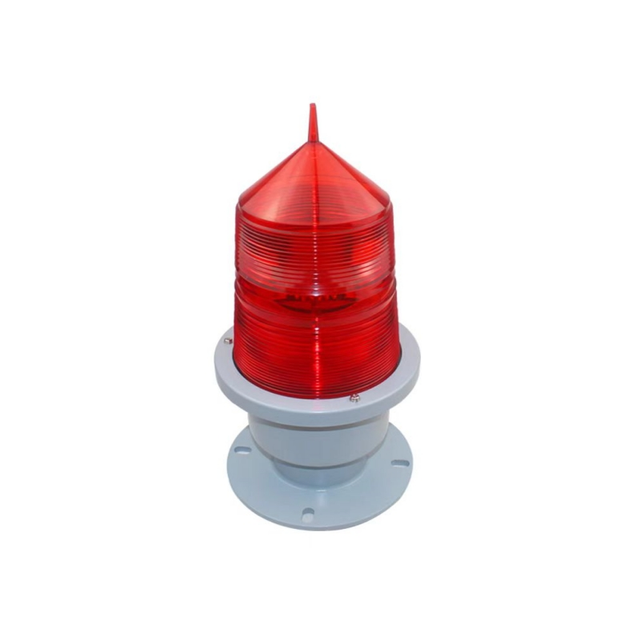

Medium-intensity Lights Aviation Light YFFY-155LED

Medium-intensity lights are mainly used to mark obstacles higher than 45 meters to 150 meters, in accordance with the relevant regulations of the International Civil Aviation Organization (ICAO).

This obstacle warning light is suitable for use in various marine and land applications, especially when high intensity and durability are required.

They usually use LED technology, which has the advantages of low power consumption and long life.

Parameters of Medium-intensity Lights

Type

Medium Intensity Aviation Obstruction Light

Model

YFFY-155 Led Warning Light

Rated Power Consumption

20W

Light Source Type

High brightness LED

Visual Range

(T=0.95): about 7km

Light Source Life

>10000 hours

Horizontal Illumination Angle

360

Intensity

>2000cd

Flash Frequency

15-60 times (adjustable)

Light Control Switch Sensitivity

150-300LX

Color

Red (common), white, green, blue, etc.

Working Environment

40°C ー+70°C

Protection Level

IP65

Size

D180mm x H430mm 4 x D12mm hole

Material

Aluminum alloy & PC

Working Voltage

AC220V/50Hz DC12V-48V

Flammability Level

UL94V0

Wind Resistance Level

≥67m/s

Optional Functions

Photoelectric automatic control/adjustable frequency

Customizable Functions

Fault alarm output function/GPS synchronization function/synchronous synchronization function

Optional Accessories

Mounting bracket / power lead (lead length can be customized)

Application of Medium-intensity Lights

YFFY-155 LED aviation obstruction lights are mainly used in the following scenarios:

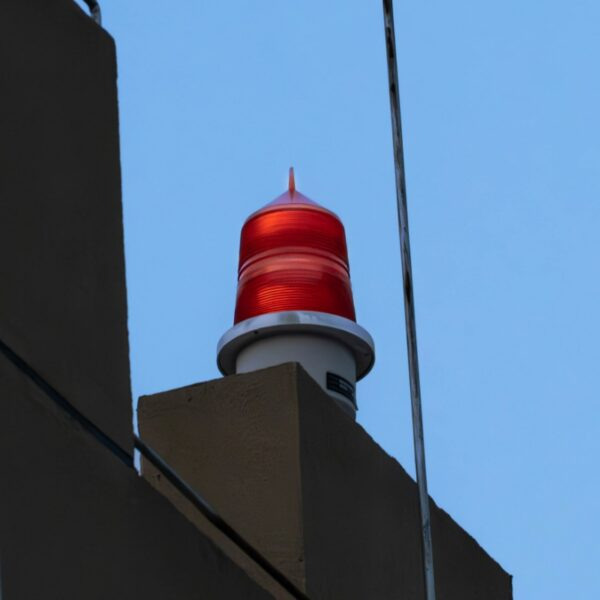

1. Aviation obstacle identification: used to identify high buildings, chimneys, towers, etc. to ensure flight safety, especially when flying at low altitudes and at night.
2. Traffic control: can be used to warn of obstacles such as buildings and bridges on highways or main roads to remind drivers to pay attention.
3. Construction site identification: use high-altitude obstruction lights around construction areas, expansion projects or temporary facilities to improve visibility and ensure the safety of workers and passers-by.
4. Offshore facilities: use obstacle warning lights on offshore platforms, lighthouses and other offshore structures to ensure that ships can navigate safely at night or when visibility is low.
5. Wind turbines: used to identify tall wind turbines to ensure the safety of aircraft.

The selection of medium-intensity aviation obstacle warning lights usually takes into account factors such as the environment, visibility requirements and installation location to meet the safety needs of different occasions.
