EnruigeOK Rear Brake Light Reverse Camera For Ford Transit Connect 2014-2023 & 7" Monitor

EnruigeOK Rear Brake Light Reverse Camera for Ford Transit Connect 2014–2023 & 7" Monitor

Description:

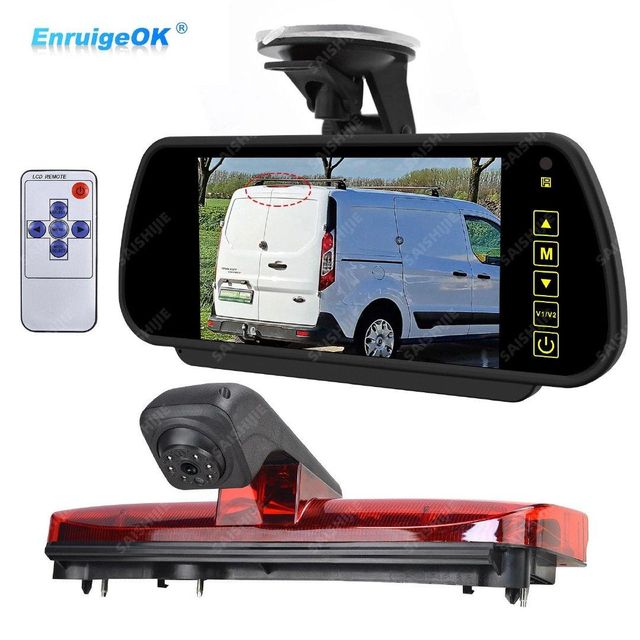

* It includes a backup camera and monitor. When reversing, the car monitor displays the rear camera images to help you park safely.

* This brake light camera uses a 1/4" CMOS sensor with enhanced color imaging. Equipped with a built-in IR-CUT, the camera features 6 infrared lights around the lens to ensure excellent night vision.

* With a 120-degree viewing angle, this reversing camera provides detailed information about the environment behind your car.

* 100% Waterproof: Built with an IP68 rating, this camera is fully waterproof.

* The 7" Color TFT-LCD Monitor features 2 video inputs and an 800*480 (RGB) resolution, making it compatible with the brake light rearview camera.

Camera Specifications:

Image sensor: 1/4" CMOS

Effective pixel: 733(H)x493(V)

TV Line: 480TV Lines

Night Vision distance: Approx.35ft

Waterproof rating: IP68

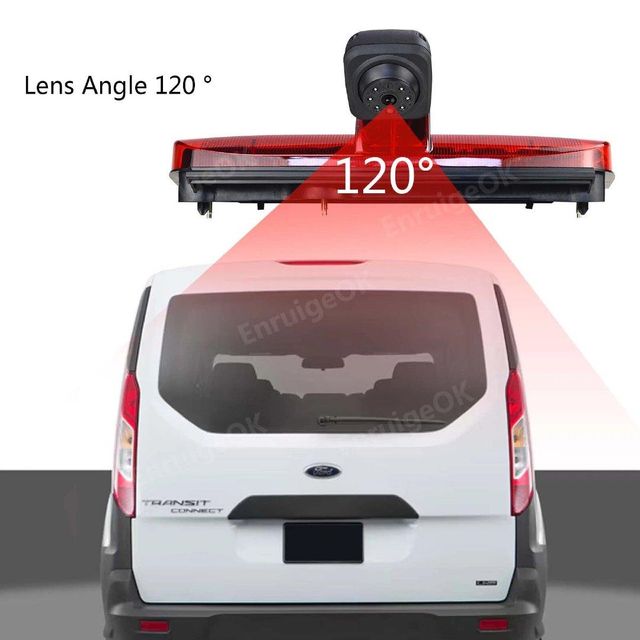

Viewing angle: 120°

Video system: PAL/NTSC

S/N Ratio: > 48dB

Current consumption: < 150mA

Minimum illumination: 0Lux(IR LED ON)

Power: DC 12V

Operating temperature: -20℃ to +70℃

Monitor Specifications:

*Screen: 7 inch

*Resolution: 800x(RGB)x480

*TV System: PAL/NTSC auto

*Screen ratio 16:9/4:3 adjustable

*Video Input: Dual video inputs, AV1 and AV2(For reversing camera) video input, the monitor will automatically turn on and switch to the rear view camera (image) when the reversing gear is engaged.

*Blue screen displayed when no signal is detected.

*Parking Guidelines: Adjustable (ON/OFF via monitor settings).

*Power Supply: DC 9V-35V

*Power consumption: 6W

*Rear watching: Image can be changed left and right

*Operate mode: The touch key operation and remote control

*Remote control: a CR2025 button battery (battery not included)

Model: Rear Brake Light Reverse Camera with 7" Monitor

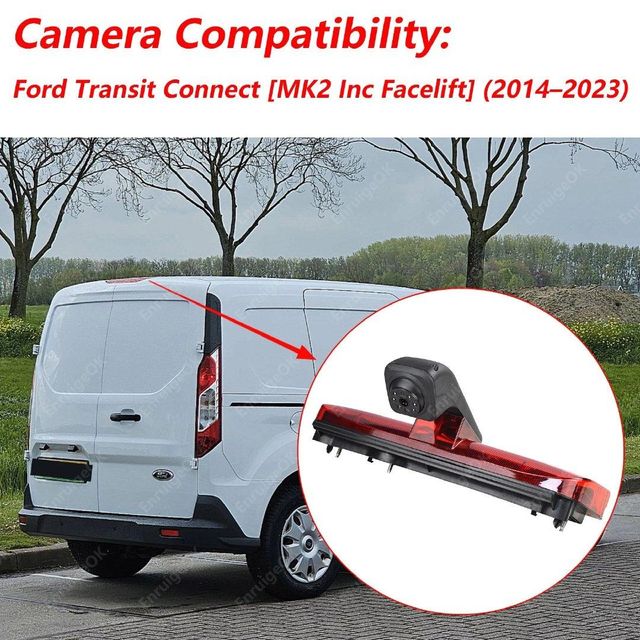

Compatible Vehicles: Ford Transit Connect 2014–2023

Functionality: Reverse camera with rear brake light integration

Key Features

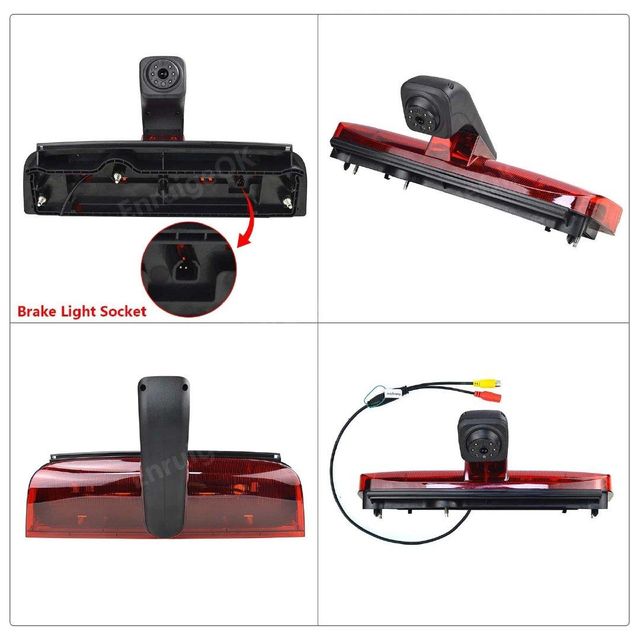

Integrated Rear Brake Light

The reverse camera system includes a rear brake light that activates automatically when the vehicle is in reverse, improving visibility and safety during parking and maneuvering.

7-Inch High-Resolution Monitor

Features a clear 7-inch display with sharp image quality, providing a wide-angle view of the vehicle’s rear area for better situational awareness.

Easy Installation

Designed specifically for Ford Transit Connect 2014–2023 models, the system offers a straightforward installation process compatible with existing wiring and mounting points.

Weather-Resistant Design

Engineered to withstand various weather conditions, ensuring reliable performance in rain, snow, and extreme temperatures.

Perfectly tailored for drivers seeking enhanced rear visibility and improved safety without compromising on simplicity or reliability.

Product Overview

This rear brake light reverse camera system combines essential safety features with user-friendly design. It integrates seamlessly with the Ford Transit Connect 2014–2023 model’s existing electrical system, providing real-time rear view through a 7-inch monitor. The system activates the brake light when reversing, ensuring other road users are alerted to your vehicle’s movement.

The monitor offers a clear, wide-angle view of the vehicle’s surroundings, making parking and reversing significantly easier and safer. The compact design ensures minimal space usage and maintains the vehicle’s original aesthetics.
