Sanitary Hygineic Inox Quick-Install Valve with Mult-position gripper/pull rod handle for Liquid Cooling Control

We are pleased to provide our quotation details for Sanitary clamped valve with mult-position gripper/pull rod handle products as below:

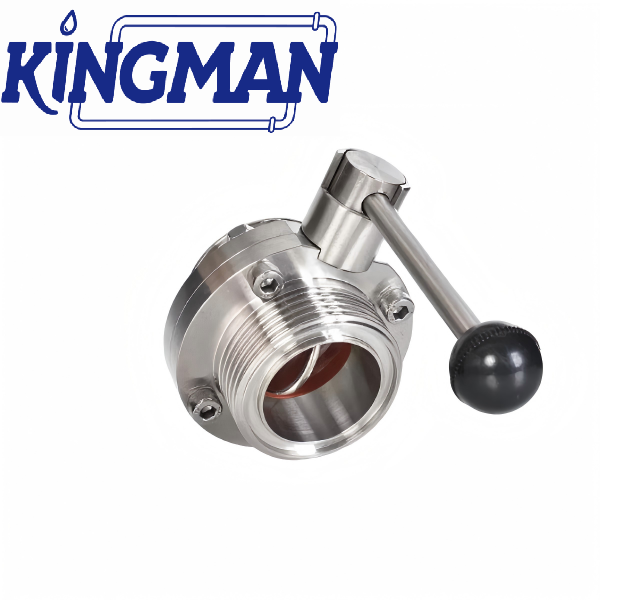

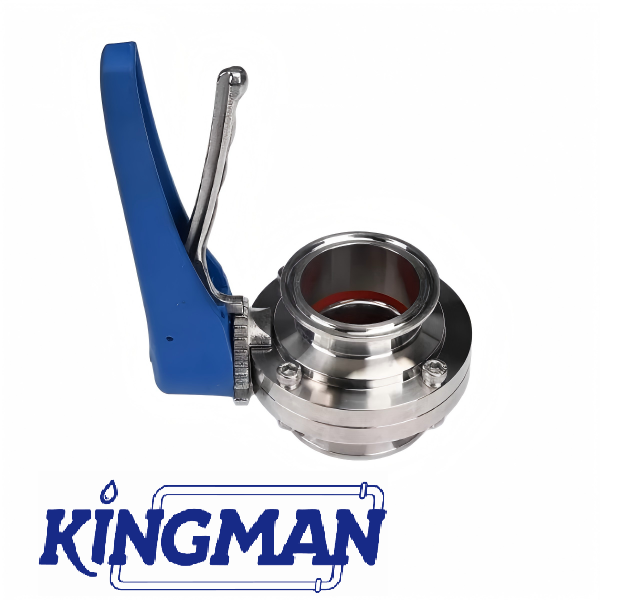

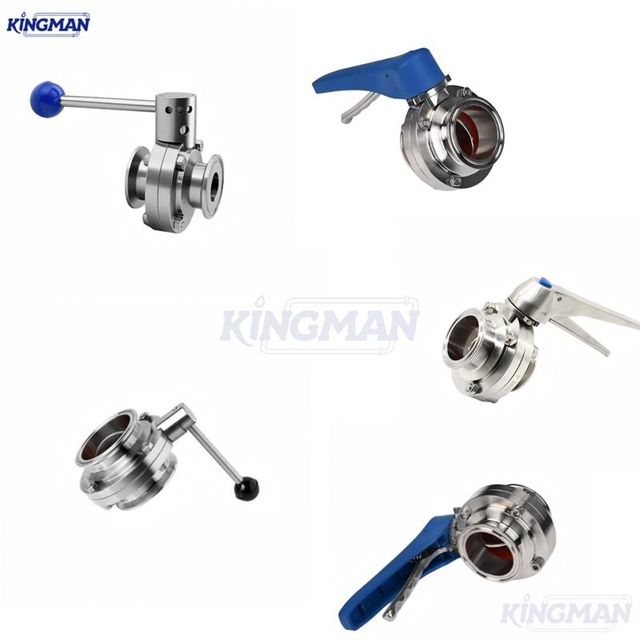

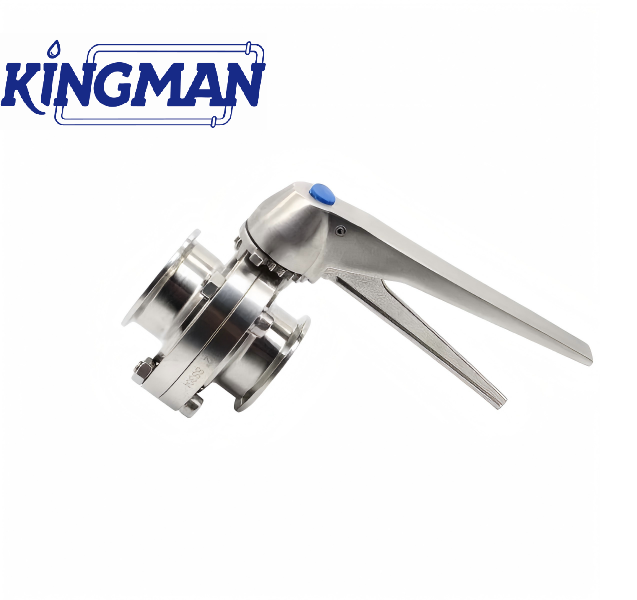

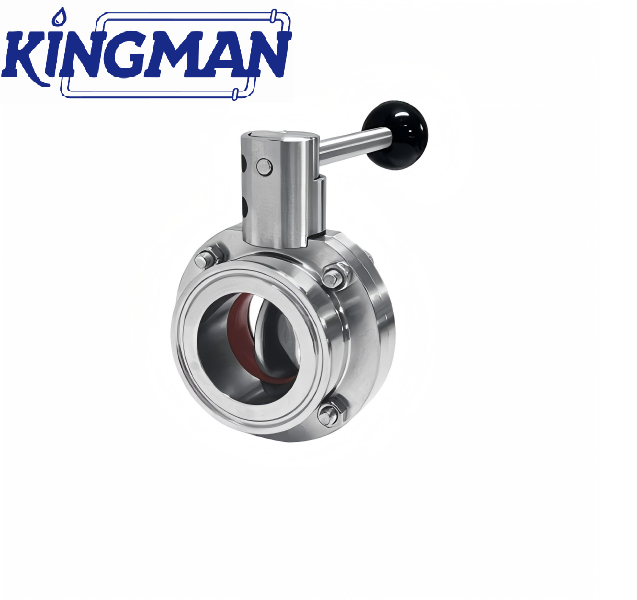

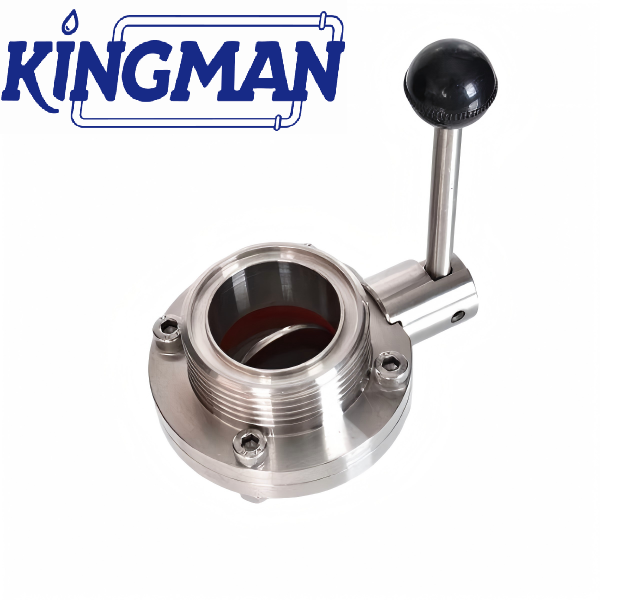

Product Name: Sanitary clamped valve with mult-position gripper/pull rod handle

1. Premium Material Selection

To ensure product hygiene and durability, the KINGMAN VALVE strictly selects high-quality SUS304 (1.4301) or SUS316L (1.4404) stainless steel for the valve body and valve disc, offering excellent corrosion resistance and mechanical properties. The inner surface of the valve body is electrolytically polished or mechanically polished, achieving a surface roughness Ra≤0.8μm (maximum Ra≤0.4μm), eliminating dead corners and residues, facilitating easy cleaning, and fully compatible with CIP online cleaning and SIP high-temperature sterilization.

All matching seals are made of FDA food-grade EPDM, silicone rubber (SI), or PTFE, resistant to high-temperature steam and acid/alkali corrosion, meeting FDA/3A standards, effectively preventing secondary contamination of the media and ensuring the safety and cleanliness of the transported materials.

2. User-friendly Structure and Operation Design

The Sanitary Quick-Install Butterfly Valve features a 90° rotary opening and closing design, offering easy and sensitive operation, rapid opening and closing speed, and precise flow rate adjustment. The smooth flow path minimizes fluid resistance, supporting bidirectional media flow. Reliable sealing achieves a Class VI zero-leakage standard, ensuring long-term pipeline sealing safety and preventing material waste and environmental pollution.

In terms of operation, it is equipped with a manual multi-position handle, enabling 90° rotary opening and closing and flow rate positioning adjustment. Pneumatic/electric actuators are also available as options to meet customer automation control needs, achieving integrated manual and automatic operation and enhancing the intelligence level of pipeline control.

3. Liquid Cooling System Compatibility（新增）

This sanitary butterfly valve is well‑suited for liquid‑cooling loop applications for data center immersion liquid cooling projects.

• Material compatibility: SUS304 / SUS316L body together with optional PTFE/silicone seal provides good compatibility with common dielectric cooling fluids;
• Working condition performance: Class‑VI zero‑leak sealing design effectively avoids leakage risk for cooling circulation pipelines;
• Application scenario: Can be deployed in fluid piping of server immersion liquid‑cooling systems, to regulate the flow of coolant media, supporting stable thermal cycling operation for liquid‑cooled infrastructure.

Technical Specifications

• Nominal Diameter: DN10～DN150 (1/2"～6")
• Nominal Pressure: PN10/16 (1.0/1.6MPa)
• Operating Temperature: -30℃～+150℃ (depending on sealing material)
• Sealing Class: Class VI (zero leakage)
• Applicable Standards: DIN, SMS, ISO, IDF, 3A, GB/T 2238

MOQ: 1 Piece

Price: USD 1

Trade Terms: FOB,EXW,FCA,FAS,CFR,CIF,CPT,DAP,DDP,DAT,CIP

Payment Terms: T/T,L/C,D/P,W/U,Money Gram,PayPal,Other

Port of Loading: Ningbo, China, Cn (NGB/NIB/NIN)
