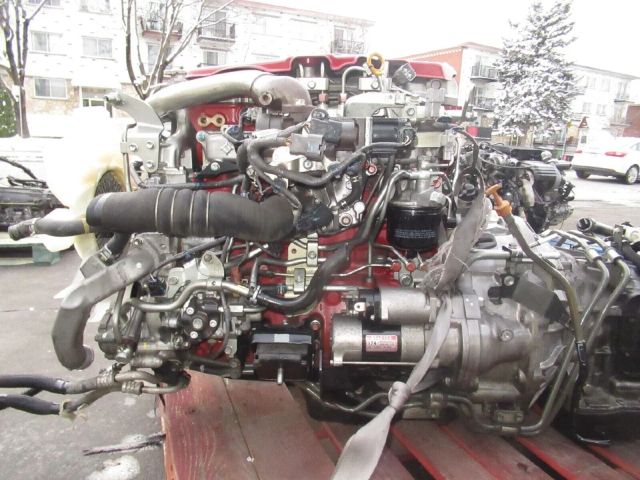

TOYOTA DYNA N04C ENGINE AUTOMATIC TRANSMISSION HINO DUTRO TURBO MOTOR N04C.

The Hino N04C-UC engine for the Toyota Dyna Dutro is a 4.0-liter, 4-cylinder, turbo-diesel engine that delivers up to 110 kW (150 hp) of power and 400 Nm of torque, featuring a common-rail fuel system for efficiency and Euro 5 compliance. Its specifications include a bore of 100 mm and stroke of 120 mm, with a compression ratio of 19:1 and a maximum engine RPM of 3,100.

Engine Specifications

• Engine Model: N04C-UC
• Type: 4-cylinder, water-cooled turbo diesel
• Displacement: 4.0 liters
• Bore x Stroke: 100 mm x 120 mm
• Compression Ratio: 19:1
• Maximum Power Output: 110 kW (150 hp) at 2,800 rpm
• Maximum Torque: 400 Nm (295 lb-ft) at 1,600 rpm
• Fuel System: High-pressure common rail injection
• Turbocharger: Features Variable Nozzle Turbo (VNT) technology

Features and Performance

• Emissions: Meets Euro 5 emission standards
• Compatibility: Used in Hino Dutro and Toyota Dyna models
• Performance: Offers a strong combination of power and torque for heavy loads, along with good fuel efficiency

Transmission and Operation

• Transmission Type: Manual transmission
• Operational Use: Designed for professional drivers in medium-duty commercial applications such as urban delivery and regional transport.

Maintenance and Reliability

• Maintenance:
• Regular inspections of the timing belt and professional tune-ups are recommended to ensure optimal performance.
• Durability:
• Built with high-quality materials like aluminum, steel, and cast iron for the engine block, cylinder heads, and pistons to ensure longevity and resistance to harsh conditions.

Note on Sources:

Specifications for the N04C engine can vary slightly between different model versions and regions. Always consult the specific vehicle’s owner manual for precise maintenance schedules and tailored information
