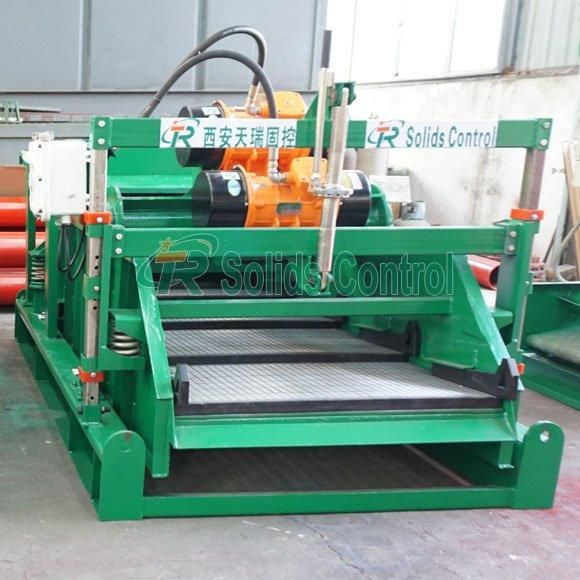

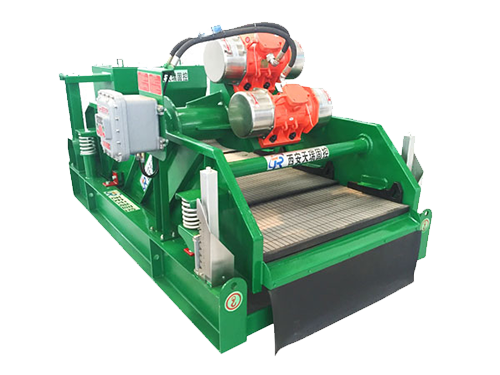

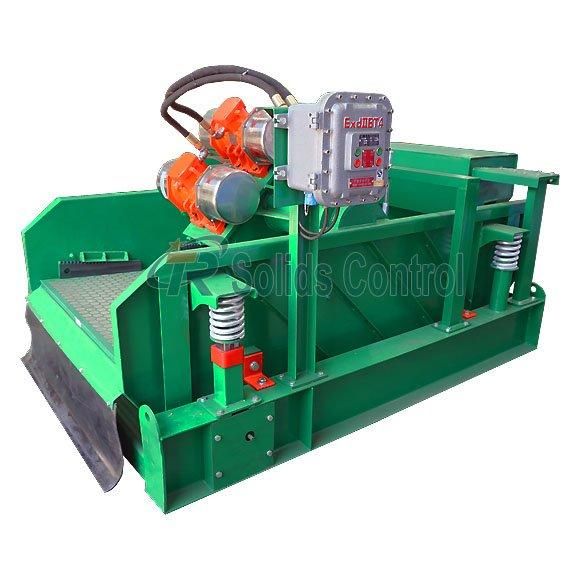

TRZS584 Linear Shale Shaker for Drilling Solids Control

Drilling fluid shale shaker is an important solid control equipment in oil drilling mud system. TR solids control linear shale shaker is the third generation of mudshaker.Built in line with API RP 13C standards, this linear shale shaker adopts dual vibration motors to generate stable linear movement, featuring high G-forcevibration, rugged structure and steady operation to efficiently separate drill cuttings from drilling fluid and greatly improve mud recycling efficiency.Suitable for long-term continuous operation in harsh oilfield environments, our product lineup covers linear, translational elliptical and dual-track shale shakers.All matched shaker screens support wedge and bolt fastening installation. We also offer tailor-made shale shaker solutions to fit various drilling capacities andglobal project demands.

Advantages of Linear Motion Shale Shaker

1. High G-force vibration intensity (adjustable) enables separation of high-viscosity and high-density slurries.

2. The screen box is made of high-manganese alloy steel for high strength and extended service life.

3. The entire screen box is heat-treated to withstand long-term operation under high vibration intensity.

4. The plate-type frame screen with a wedge-type screen clamp facilitates quick screen replacement.

5. A Martin or OLI vibration motor is used.

6. Electrical components are from Schneider or Siemens.

7.The cofferdam-type and top-mounted slurry inlet hopper provides slurry buffering and even flow, reducing impact on the screen.

8. Fewer wearing parts ensure simple operation and maintenance.
