Product Description

Wood pellet complete production line

Wood pellet complete production line is equipment for making the wood log/wood chips/sawdust/wood shaving/rice husk/stalk/grass...raw material into fuel pellets, Main process: Wood chipper--hammer mill--biomass dryer--biomass pellet machine--pellet cooler--pellet packing machine

Raw Material and Application

What kind of raw material can be pressed into biomass pellets?

Wide range of raw materials such as: sawdust, bamboo, rice husk, agricultural straw, wood shavings, peanut shells, grass, coffee waste, efb fiber...

We produce wood pellets with diameter 6-10mm by using different size of ring die . The length of the wood pellets could be adjusted.

Where can be wood pellets used?

Biomass wood pellets produced by wood pellet production line can be used as biomass fuel instead of coal, oil and gas, for boiler, fireplace, heating system, power plant or other places where need heating. As wood pellet is environmental friendly, It becomes popular in more and more countries. So investing wood pellets project is a bright choice.

Main Process to Make Biomass Pellets

Below is the main process to make biomass pellets. If you want to get more information about the whole complete pellet line, please contact us directly for detailed optimal project.

Wood Chipping Section

Name: Wood chipper

Usage: Make the wood log/wood branches/wood blocks/bamboo... into smaller chips.

Finished products: 20-50cm(depends on the number of rotary knives.)

Crushing Section

Name: Hammer Mill/Crusher

Usage: Crush the wood chips/wood shaving/small blocks/grass/stalk...to 6-8mm powder.

Finished products: 6-8mm(depends on the size of screener hole.)

Drying Section

Name: Rotary Dryer

Usage: dry raw material into suitable moisture to produce high-level pellets.

Finished moisture: 10-15% of dried wood chips or sawdust

Fuel:Could burn waste wood stemp, wood pellets or wood chips as fuel

Pelletizing Section

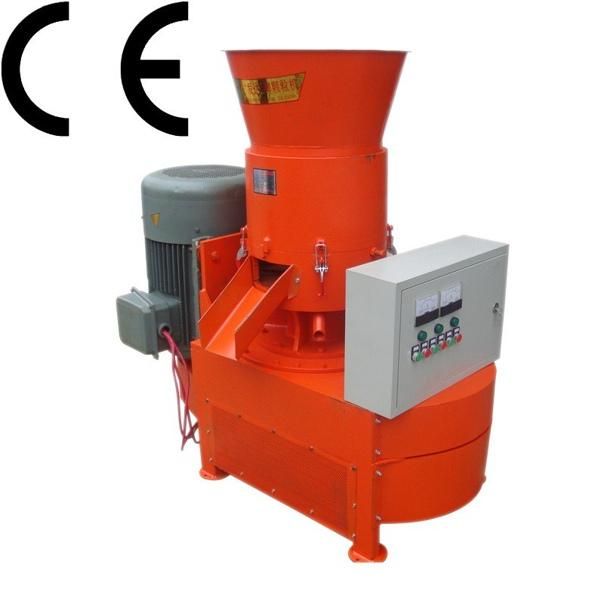

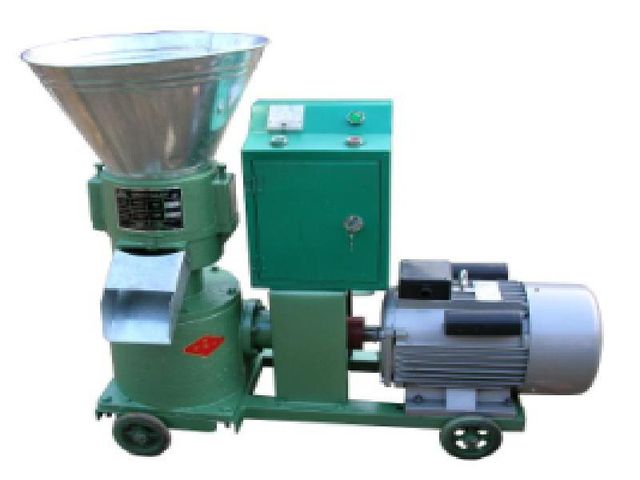

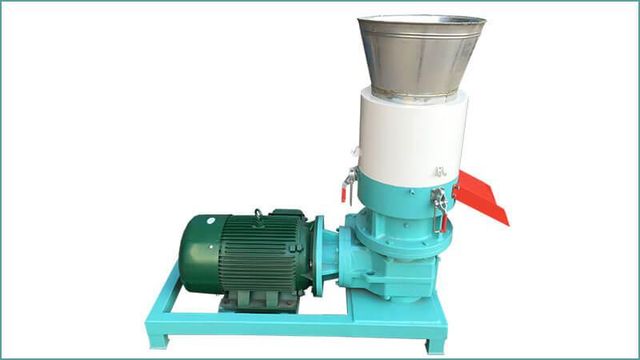

Name: Wood Pellet Machine/Pellet Press

Usage: press crushed and dry sawdust/rice husk/straw/grass... into pellets.

Finished pellets: 6/8/10mm.(Asian Market standard: 8mm; European Market standard: 6mm)

Model type of pellet machine:Vertical ring die pellet machine

Capacity:1-30tph

Cooling Section

Name: Cooling Machine

Usage: When pellets comes from pellet machine, the temperature could reach about 60-90 degree, it is too hot for packing or storage. After cooling, it could increase the hardness of wood pellets before packing .

Cooling type:Counter flow cooler

Packing Section

Name: Packing Machine

Usage: Pack pellets into 20-50kg/bag or 750kg or 1000kg /bag.

Advantage: easily to be transported to final users' site.

Customer Photos

Specification

Model

Main Power(kw)

Capacity(t/h)

Dimension(L*W*H)

Weight(t)

YGKJ560

132

1.5-2

2200*1300*1600

5.8

YGKJ700

160

2-3

2400*1400*1800

7.8

YGKJ880

220

3-4

3000*1500*2200

13
